2ch. Network Video Transmitter
CamPilot MR902
User Manual
Overview
CamPilot MR902
Accessories
Before installing and using the product,
please read this manual carefully.
Be sure to keep it handy for later reference.
•
2ch H.264 Video Encoder
•
NTSC / PAL support
•
Video : 2ch Input
•
Audio : 2ch Input / 1ch Output
•
D1 resolution at 30fps for each channel
•
Multi-codec video support : H.264 / MJPEG
•
Multi-stream with variable resolution & frame
st
- 1
stream : H.264 or MJPEG @ all resolutions
nd
- 2
stream : H.264 or MJPEG @ max. CIF
•
Stream based motion detection
•
VBR / CBR support
•
Two-way audio supported (Full Duplex)
•
Multi-codec audio support : G.711 / G.726
•
RS-422/485 for external device control
•
RS-232 for external device control
•
2ch Digital Input / Output
•
Power : DC 12V, 1A
An adaptor and a LAN cable are not included in the product
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cellinx CamPilot MR902
Summary of Contents for Cellinx CamPilot MR902

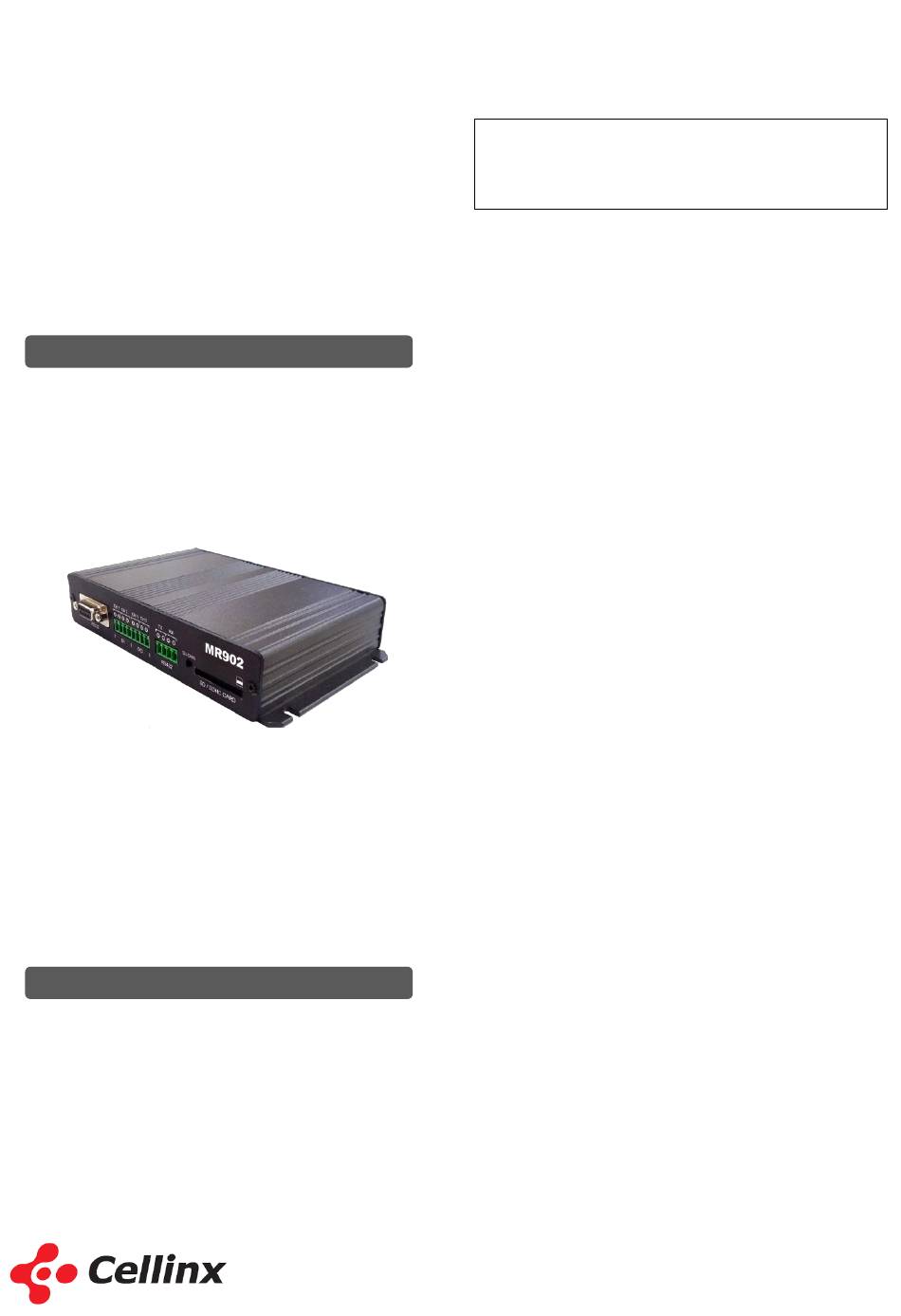

- Page 1 2ch. Network Video Transmitter CamPilot MR902 Before installing and using the product, please read this manual carefully. User Manual Be sure to keep it handy for later reference. Overview • 2ch H.264 Video Encoder • NTSC / PAL support •...
- Page 2 ■ Mounting Surface The mounting surface material must be strong enough to support the camera. ■ CamPilot MR902 can be used for surveillance purpose. Be thoroughly informed of related regulations prior to installation to ensure compliance with such regulations...
-
Page 3: Sd Card Led
Overview Features is a Network Video Server that transmits real-time high-resolution digital CamPilot MR902 video and audio data with H.264 high compression rate over Internet or Intranet. Appearance 1. RS232C (external device control) 2. DI CH1/CH2 (Digital Input) ▶ Front 3. -
Page 4: Specification
TCP, IP, HTTP, DHCP, FTP, DNS, DDNS, NTP, ICMP, Protocol SNMP, SMTPE, UPnP, RTP, RTSP, Onv if Web Browser IE 8.0 or abov e Sof tware Cellinx SDK 4.0 Security MD5 Password / iptables (f irewall) Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Power Requirement DC 12V / 1.0A... -
Page 5: Basic Connection
Connection Basic connection (1) DC 12V 1A (Power, When the PoE is used, the power connection is not necessary.) (2) ETHERNET - LAN cable (RJ45 jack), the product is connected to PC or network equipment such as HUB by the LAN cable. Please, refer to the standard of “IEEE 802.3af” for PoE connection. - Page 6 Connection PTZ Camera Analog Camera MR902 MR902 Local Network Public Network LAN Cable INTERNET INTRANET Router Monitoring PC Monitoring PC Configuration Monitoring PC Requirements Item Specification Processor Pentium Core2 Duo or more 2GB or more Graphic Card 512MB or more Monitoring Windows 2003 / XP / Vista / 7 Monitor Resolution...
-
Page 7: Setting An Ip Address
Network Setting an IP address Change the network setting value with the program “NVTManagement” 1. NVTManagement execution - Execute the file “NVTManagement.exe” 2. Setting an IP address NVT (Network Video Transmitter) search - Discovery button: searches the NVTs on the local network NVT set-up - The network information of the NVTs should be set by the rule of the local network information - Select an NVT and change the information on “Network setting”... - Page 8 Network 3. Accessing to CamPilot MR902 with a web browser Open a web browser on a monitoring PC and enter the IP address assigned to a CamPilot MR902 as following Example> http://192.168.1.2 • The page as below shows up after the connection is completed.
