Summary of Contents for Ursalink UR32

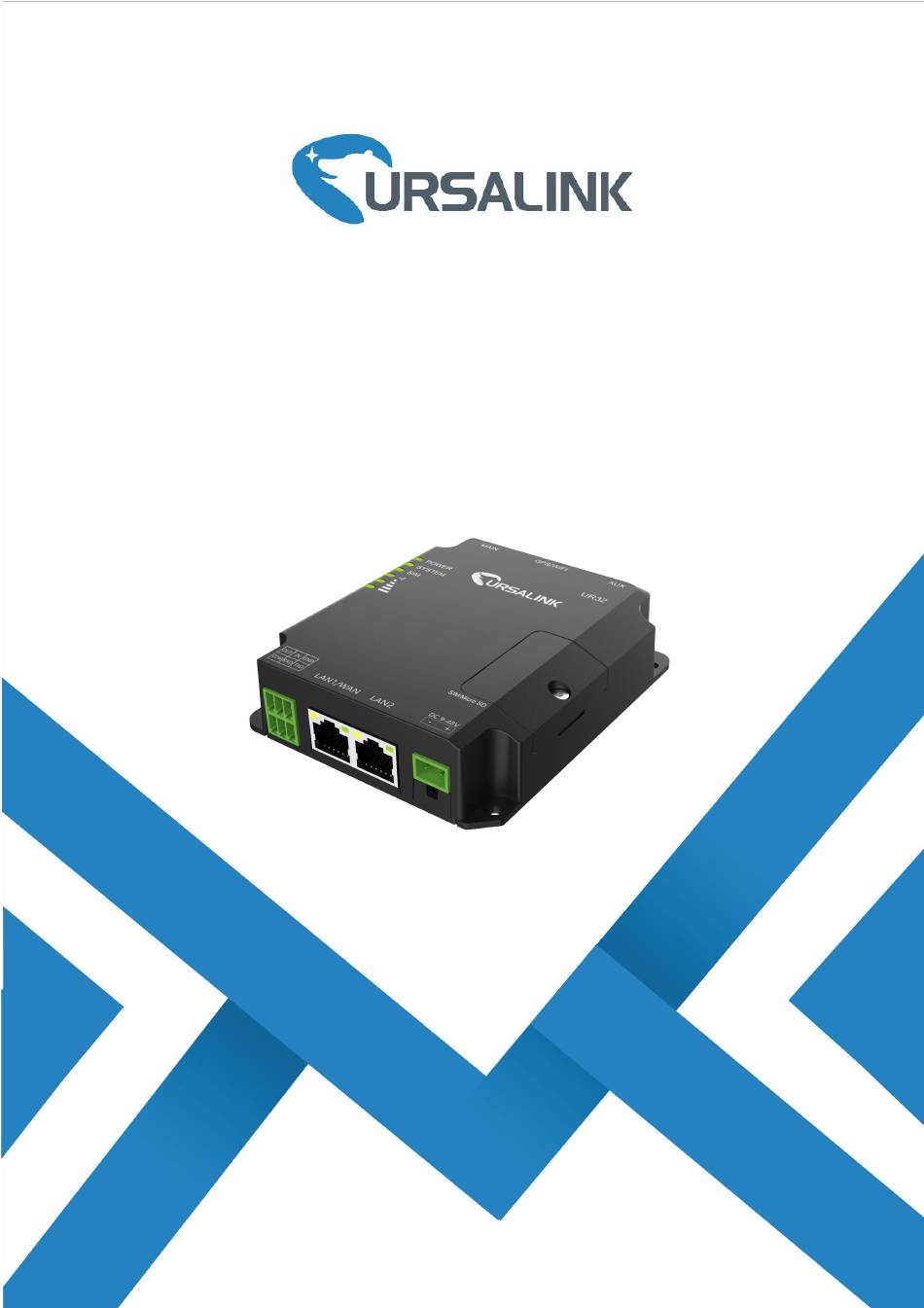

- Page 1 UR32 Industrial Cellular Router Quick Start Guide Ursalink Technology Co., Ltd.
-
Page 2: Related Documents
Thank you for choosing Ursalink UR32 industrial cellular router. This guide describes how to install the UR32 and how to log in the Web GUI to configure the device. Once you complete the installation, refer to the Ursalink UR32 User Guide for instructions on how to perform configurations on the device. -
Page 3: Package Contents
Ursalink UR32 Quick Start Guide 1. Packing List Before you begin to install the UR32 router, please check the package contents to verify that you have received the items below. 1.1 Package Contents 2 × Stubby Cellular 1 × UR32 1 ×... -
Page 4: Hardware Introduction
Ursalink UR32 Quick Start Guide 2. Hardware Introduction 2.1 Overview A. Front Panel UR32 Front Panel Main Cellular Antenna Connector GPS/WIFI Antenna Connector AUX Cellular Antenna LED Indicator Area POWER: Power Indicator SYSTEM: Status Indicator SIM : Status Indicator : Signal Strength Indicator Serial Port &... -
Page 5: Led Indicators
Ursalink UR32 Quick Start Guide 2.3 Pinouts RS232 Description Digital Output Digital Input Ground Common Ground Receive Data Transmit Data Description Positive Negative 2.4 LED Indicators Indication Status Description The power is switched off POWER Power Status The power is switched on... -
Page 6: Reset Button
Ursalink UR32 Quick Start Guide 2.5 Reset Button Description Function SYSTEM LED Action Blinking Press and hold the reset button for about 5-15 seconds. Reboot Static Green Release the button and wait for system to reboot. Blinking Press and hold the reset button for more than 15 seconds. -
Page 7: Hardware Installation
Ursalink UR32 Quick Start Guide 3. Hardware Installation Environmental Requirements - Power Input: 9-48 VDC - Power Consumption: Typical 1.6W (Max 3.0 W) - Operating Temperature: -40°C to 70°C (-40°F -158°F) - Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F 3.1 SIM Card/Micro SD Card Installation... -
Page 8: Connect The Router To A Computer
Ursalink UR32 Quick Start Guide 3.3 Connect the Router to a Computer Please connect PC to any port among LAN port of UR32 router. 3.4 Mount the Router The router can be placed on a desktop or mounted to a wall or a DIN rail. -
Page 9: Power Supply Installation
Ursalink UR32 Quick Start Guide 3.5 Power Supply Installation A. Take out the terminal from the router and unscrew the bolt on the terminal. B. Screw down the bolt after inserting power cable into the terminal. Connecting the Power Cable... -
Page 10: Getting Started
4. PC Configuration for Web GUI Accessing to Router Please connect PC to LAN port of UR32 router. PC can obtain an IP address, or you can configure a static IP address manually. The following steps are based on Windows 10 operating system for your reference. - Page 11 Ursalink UR32 Quick Start Guide Method 2: click “Use the Double Click “Internet Method 1: click “Obtain an IP ⑤ ⑥ following IP address” to assign a Protocol Version 4 address automatically”; static IP manually within the (TCP/IPv4)” to configure IP same subnet of the router.
- Page 12 5. Access to Web GUI of Router for Cellular Connection This chapter explains how to log in UR32 router’s Web GUI, and connect the router to cellular network. Ursalink router provides Web-based configuration interface for management. If this is the first time you configure the router, please use the default settings below: IP Address: 192.168.1.1...
- Page 13 Ursalink UR32 Quick Start Guide D. After you log in the Web GUI, you can view system information and perform configuration on the router. 5.2 Configure the Cellular Connection Take inserting SIM card into SIM1 slot as an example; please refer to the following detailed operations.
- Page 14 If you select “3G First”, “3G Only”, “2G First” or “2G Only”, you should manually configure APN, Username, Password, and Access Number. UR32 routers have two cellular interfaces, named SIM1 & SIM2. Only one cellular interface is active at a time. If both cellular interfaces are enabled, SIM1 interface takes precedence by default.
- Page 15 5.4 Check out if Network Works Properly by Browser on PC Open your preferred browser on PC, then type any available web address into address bar and see if it is able to visit Internet via UR32 router. [END] www.ursalink.com...
