The following notation conventions are used in this manual to indicate Safety Precautions.
A CAUTION statement indicates a potentially hazardous situation that may result
in personnel injury or equipment damage.
Note:
Provides additional information needed to properly use the balance.
To ensure the proper operation of the balance, observe the following precautions.
• Do not use the balance in hazardous areas.
This includes areas where the balance is exposed to dust and flammable gases or
liquids.
Ÿ Use the AC adapter supplied by CAS.
To prevent the risk of electric shock, never disassemble the AC adapter.
The AC adapter is designed for indoor use. Do not use the adapter in exterior
environments or where it may be splashed by water.
Ensure that the power supply voltage meets the indicated range of the AC adapter.
Ÿ Handle the balance carefully.
The balance is a precision instrument. The door to the weighing chamber is glass,
open and close it carefully.
Ÿ Do not connect the peripheral devices other than those recommended by CAS to the
balance.
The balance may not operate properly if peripheral devices other than those specified
in this manual are used. When using the RS-232C interface, follow the instructions
in Section 34. "Windows
Diagram of Peripheral Units."
Ÿ DO NOT disassemble the balance, accessories, or peripheral unit.
Safety Precautions
CAUTION
CAUTION
®
DIRECT FUNCTION" and Section 37. "Configuration
Advertisement
Table of Contents
Related Manuals for CAS Corporation CAW Series
Summary of Contents for CAS Corporation CAW Series
- Page 1 Safety Precautions The following notation conventions are used in this manual to indicate Safety Precautions. CAUTION A CAUTION statement indicates a potentially hazardous situation that may result in personnel injury or equipment damage. Note: Provides additional information needed to properly use the balance. CAUTION To ensure the proper operation of the balance, observe the following precautions.

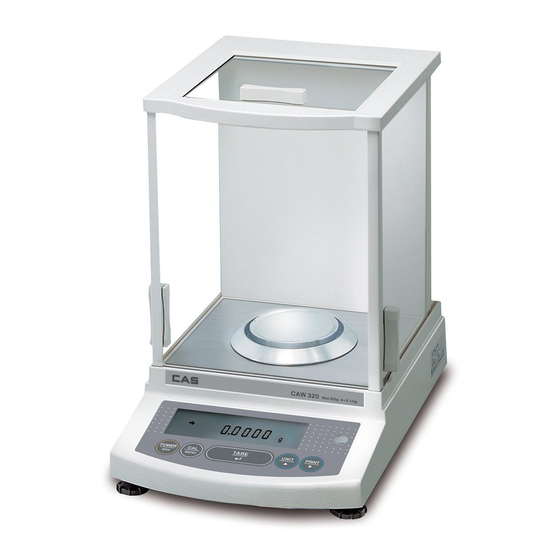

- Page 2 INTRODUCTION The CAS corporation CAW, CAX, and CAY series electronic balances are high performance, multiple function balances. The CAW/CAX/CAY series of balances are equipped with various application weighing functions, and unit conversion functions. These functions allow for a great variety of applications when used in conjunction with the peripheral units described in this manual.
-
Page 3: Table Of Contents
CONTENTS BALANCE COMPONENT S.................1 INSTALLATION ....................5 WARM-UP......................6 PRECAUTIONS....................6 MEASUREMENT PROCEDURE.................7 MENU SELECTION....................7 ...................8 PERATION C.SEL M ..................10 ....................12 TTIN FACE M ....................16 .SEL M ...................18 F:USE .....................20 SPAN CALIBRATION (SENSITIVITY ADJUSTMENT)........22 ..........22 ALIBRATION SING THE UILT EIGHT ...........23 ALIBRATION SING AN XTERNAL EIGHT ............24... - Page 4 CALIBRATION OF THE BUILT-IN WEIGHT (CAW/CAX SERIES ONLY) ...35 BALANCE ID NUMBER ..................35 OUTPUT CORRESPONDING TO GLP/GMP ............36 AUTOMATIC SPAN CALIBRATION (PSC)(CAW SERIES ONLY) .....37 CLOCK-CAL (CAW SERIES ONLY) ..............38 CLOCK-CAL STARTING TIME (CAW SERIES ONLY) ........38 SOLVENT SPECIFIC GRAVITY FOR SOLID SPECIFIC GRAVITY MEASUREMENT ....................39...
-
Page 5: Balance Components
BALANCE COMPONENTS Composition: The Instruction Manual and Inspection Acceptance Certificate & Installation Tag are included along with the items depicted below. Verify that all of the items are included in the shipping carton. Name of Each Part: Main Balance Body Pan Supporter Anti-draft Ring Level... - Page 6 Analog display Unit display An example of ìwhole lightingî display. Display How to read Meaning during weighing In mass display this symbol indicates that the balance Stability is stable. In menu display, this symbol indicates the symbol current menu setting. (*1) Blinks when sensitivity adjustment is necessary.
- Page 7 Key Functions During weighing During menu selection (*1) Pressing Once Pressing and Pressing Once Pressing and and Releasing Holding for and Releasing Holding for About 3 About 3 Seconds Seconds Switches Exits the Returns to the Returns to the between the Application previous menu.
- Page 8 before shipment. To register other units, refer to Section 10. “REGISTRATION, RELEASE, AND SELECTION OF MEASUREMENT UNITs”. When the unit is set to 10d, the resolution of the minimum display is decreased by one decimal place. Applicable to CAW/CAX Series balances only. TARE may be printed on the key instead of →O/T←.
-
Page 9: Installation
INSTALLATION Power Supply Voltage • Do not use any AC adapters other than the one provided as a standard accessory. • Confirm the power supply voltage. • Confirm that the voltage of the power supply conforms to the one indicated on the AC adapter. Installation Site The ideal operating environment for the balance is in a location where the temperature is 20°C ±... -
Page 10: Warm-Up
Moving the Balance • Before moving the balance, confirm that it is not in the process of span calibration. Unplug the AC adapter from the power outlet and transfer the balance. Disconnecting the power supply or moving the balance during span calibration or check may cause balance failure. -
Page 11: Measurement Procedure
MEASUREMENT PROCEDURE Preparations Before Measurement Warm-up the balance before starting measurement. Setting the Measuring Mode (1) Press the POWER/BRK key. (2) The STAND-BY indicator goes out and whole lighting is displayed. Verify that all segments of the display illuminate. If the balance is set to automatically perform span calibration it is executed before zero is displayed. -
Page 12: Operation Menu
Operation Menu Frequently used menus are contained in the first menu level (1) Press the CAL/MENU key during mass display. (2) "i CAL" (or standard span calibration) is displayed. (CAW/CAX series only) (3) The display changes each time the CAL/MENU key is pressed. When the desired item is displa yed, press the →O/T←... - Page 13 Display of the Currently Set Conditions (Example) The current balance conditions are displayed in abbreviation. Indicates that automatic span Indicates that the GLP calibration is ON. corresponding output is S t . b 1 Measuring mode Stability detection band Zero tracking 0.1mg: b1 t is displayed.
-
Page 14: Func.sel Menu
FUnC.SEL Menu From the mass display, press the CAL/MENU key repeatedly until "FUnC.SEL" is displayed. Press the →O/T← key to enter the next menu level. Items in this menu level include span calibration, zero tracking, stability detection band, selection or release of units, automatic PRINT, analog display and Add Load Weighing. - Page 15 Adon-on → Addon:on Sets Add Load Weighing mode ON. Adon-oF → Sets Add Load Weighing mode OFF. (→): Press the →O/T← key (←): Press the POWER/BRK key. (↓): Press the CAL/MENU key. • For better stability at zero point, set the zero tracking ("trC-on" and "trC-oF") to "trC-on."...
-
Page 16: Setting Menu
6.3. SEttinG Menu From the mass display, press the CAL/MENUkey repeatedly until "SEttinG" is displayed. Press the →O/T← key to enter into the next menu level. Items that are set in this menu level include calibration of the built- in weight, standard span calibration, external weight value for span calibration, external weight value for calibration of the built- in weight, balance ID, solvent and sinker specific gravity, execution time for Clock-CAL, date,... - Page 17 ACAL:on ACAL-on→ Sets automatic span calibration to ON. (CAW series only) ACAL-oF→ Sets automatic span calibration to OFF. (CAW series only) (→): Press the →O/T← key (←): Press the POWER/BRK key. (↓): Press the CAL/MENU key.
- Page 18 → tCAL:on Set Clock-CAL to ON. (CAW series only) tCAL oF → Set Clock-CAL to OFF. (CAW series only) tCAL t1 ↔ Enters the next menu level (Clock-CAL automatic span calibration time setting mode). (CAW series only) F See Section 22. “Clock- CAL STARTING TIME.”...
- Page 19 SEC AdJ ↔ t-16:50 Enters the next menu level (±30 sec adjustment mode). (CAW/CAX series only) F See Section 26. “TIME.” ↔ tm.AdJ Enters the next menu level (time setting mode). AW/CAX series only) F See Section 26. “TIME.” Prdt-on → Sets Date and time PRINT ON. Prtdt:on (CAW/CAX series only) Prdt-oF →...
-
Page 20: Intface Menu
intFACE Menu From the mass display, press the CAL/MENU key repeatedly until "intFACE" is displayed. Press the →O/T← key to enter the next menu level. Select the input and output format in this menu. Five preset configurations are available. Select a standard format to set the registered baud rate, parity (and bit length), stop bit, delimiter, and data format all at the same time. - Page 21 ← User setting * F1 is the standard communication format used by CAS corporation. * Set the format to “F1” when using an Electric Printer EP-60A. * F2 is the expansion of F1. When this format is set, the balance will send...
-
Page 22: Unit.sel Menu
Unit.SEL Menu The units available for selection by pressing the UNIT key during mass display are set in this menu. From the mass display, press the CAL/MENU key repeatedly until "FUnC.SEL" is displayed. Then press the →O/T← key repeatedly until "Unit.SEL"... - Page 23 → Grain → Mesghal → Baht → Tola → Parts Pounds (→): Press the →O/T← key (←): Press the POWER/BRK key. (↓): Press the CAL/MENU key. Units in AW/AX/AY series are converted with the following values. =0.001kg =1000mg =5ct =0.266667 mom =0.00220462 Lb =0.0352740 Oz =0.0321507 Ozt...
-
Page 24: If:user Menu
iF:USEr Menu From the mass display, press the CAL/MENU key repeatedly until "intFACE" is displayed. Press the →O/T← key when "intFACE" is displayed, then press the CAL/MENU key repeatedly until "iF:USEr" is displayed. To enter the user communication format menu, press the →O/T←... - Page 25 → Sets no parity, 8-bit length io.P:**** P-no P-odd → Sets odd number parity, 7-bit length P-EvEn → Sets even number parity, 7-bit length (→): Press the →O/T← key (←): Press the POWER/BRK key. (↓): Press the CAL/MENU key. → Sets stop bit to 1 bit io.S:**** S-S1 →...
-
Page 26: Span Calibration (Sensitivity Adjustment)
= 1×10 ) in regards to 100g weighing. This means that a slight temperature change may cause a measuring error. The CAW series balances are designed to automatically perform span calibration when there is a change in room temperature. This feature is called "Automatic Span Calibration (PSC)"... -
Page 27: Span Calibration Using An External Weight
(5) Press the →O/T← key when "CAL " is displayed. (6) Press the CAL/MENU key. When "iCAL " appears, press the →O/T← key. Span calibration starts at this point. NOTE: If iCAL has been selected in the CAL dEF menu in SettinG, then steps (4), (5), and (6) can be replaced by simply pressing the CAL/MENU key once and then pressing the O/T key. -
Page 28: Span Check Using The Built-In Weight
standard setting on CAY series.) See 14. STANDARD SPAN CALIBRATION (Sensitivity Adjustment). (7) Zero appears on the display and blinks. (8) The predetermined mass for the calibration weight is displayed and blinks. (9) Place the correct calibration weight on the pan. (10) Zero appears on the display and blinks. -
Page 29: Span Check Using An External Weight
(12) Span check is complete when "tEStEnd" is displayed for several seconds and the display returns to the mass display. Span Check Using an External Weight Follow the procedure below to perform span check using an external weight. Procedure (1) Warm-up the balance. F See Section 3. -
Page 30: Zero Tracking
ZERO TRACKING (1) From the mass display, press the CAL/MENU key several times. When "FUnC.SEL" is displayed, press the →O/T← key. (2) Press the CAL/MENU key several times until "trC:**" is displayed. The ** indicates the current setting. "on" indicates zero tracking is activated, and "oF"... -
Page 31: Percentage
(4) When the desired unit is displayed, press the →O/T← key to register it. (5) To return to the mass display, press and hold the POWER/BRK key. Release of the Measurement Unit Perform operations (1) to (3) above to display the units. When the currently registered unit with the stability symbol is displayed, press the →O/T←... -
Page 32: Number Of Pieces
If it is impossible to convert the value into %, "Err 20" appears for several seconds and then, the display returns to the mass display. (H type) <REF.<Min. display % conversion value×100 not possible Min. display value×100 <REF.<Min. 100% display value×1000 Min. -
Page 33: Solid Specific Gravity
10.3 Solid Specific Gravity Solid specific gravity is calculated by measuring the mass of a solid sample in the air and in a liquid of known specific gravity. The unit for solid specific gravity is " , d." Procedure (1) Install the optional specific gravity measurement kit, SMK-301. (2) Register the solid specific gravity unit. -
Page 34: Liquid Specific Gravity
10.4 Liquid Specific Gravity Liquid specific gravity is calculated using values obtained by measuring the weight of the sinker (solid of known volume) in the air and in the sample liquid. The display unit for liquid specific gravity is "d." Procedure (1) Place the optional liquid sample sinker in a tank containing the sample liquid. -
Page 35: Auto Print
11. AUTO PRINT By setting Auto PRINT, after the displayed v alue is stabilized, it is output from DATA I/O and RS232C connector. After that, the displayed value is output whenever it is stabilized even if a different sample is loaded. After the gram-display of the balance falls within ±5 counts of zero, the displa yed value is printed the next time a sample that weights more than 10 counts is loaded and the display is stabilized. -
Page 36: Add Load Weighing
(3) To change the setting, press the →O/T← key while "AdiSP:**" is displayed. (4) Each time the CAL/MENU key is pressed, "Ad-oF" or "Ad-on" is displayed. The stability symbol illuminates when the current setting is displayed. (5) Press the →O/T← key to change the setting, or press the POWER/BRK key to return to "AdiSP:**"... -
Page 37: Standard Span Calibration (Sensitivity Adjustment)
(3) To change the setting, press the →O/T← key while "Addon:**" is displayed. Press the CAL/MENU key to switch between "Adon-oF" and "Adon- on". The stability symbol illuminates to indicate the current setting. (4) Press the →O/T← key to change the setting, or press the POWER/BRK key to return to "Addon:**"... -
Page 38: External Weight Value For Span Calibration
15. EXTERNAL WEIGHT VALUE FOR SPAN CALIBRATION Procedure (1) From the mass display, press the CAL/MENU key repeatedly until "SEttinG" is displayed, press the →O/T← key. (2) Press the CAL/MENU key several times. When "CAL SEt" is displayed, press the →O/T← key. The [MENU] and # symbols are displayed to indicate numeric value entry. -
Page 39: Calibration Of The Built-In Weight (Caw/Cax Series Only)
17. CALIBRATION OF THE BUILT-IN WEIGHT (CAW/CAX series only) Procedure (1) Warm-up the balance. See Section 3. “WARM-UP.” (2) Verify that the balance is level. (3) Verify that the balance pan is empty and press the →O/T← key to zero the display. (4) From the mass display, press the CAL/MENU key several times. -
Page 40: Output Corresponding To Glp/Gmp
19. OUTPUT CORRESPONDING TO GLP/GMP Procedure (1) Press the CAL/MENU key several times from the mass display. When "SEttinG" is displayed, press the →O/T← key. (2) Pressing the CAL/MENU several times displays "GLP:**." The ** indicate the current settings for output corresponding to GLP/GMP. -
Page 41: Automatic Span Calibration (Psc)(Caw Series Only)
20. AUTOMATIC SPAN CALIBRATION (PSC)(CAW series only) When Automatic Span Calibration is selected (ACAL-on) and one of the following conditions occur, automatic span calibration is initiated. (1) Change in the ambient temperature. (2) Approximately 4 hours have passed since the previous span calibration. -
Page 42: Clock-Cal (Caw Series Only)
(5) When "tCAL:**" is displayed, press and hold the POWER/BRK key to return to the mass display. 22. Clock-CAL STARTING TIME (CAW series only) Span calibration is automatically conducted when "tCAL-on" is selected and one of the set times is reached. -
Page 43: Solvent Specific Gravity For Solid Specific Gravity Measurement
entry. "HH:MM" (HH: hour, MM: min) is displayed and the leftmost digit is blinking. (3) Change the blinking digit by pressing the UNIT key to increase the numeric value by one. The hour can be set from 00 to 23 and the minutes and seconds from 00 to 59. -
Page 44: Sinker Volume For Liquid Specific Gravity Measurement
24. SINKER VOLUME FOR LIQUID SPECIFIC GRAVITY MEASUREMENT Procedure (1) From the mass display, press the CAL/MENU key several times. When "SEttinG" is displayed, press the →O/T← key. (2) Press the CAL/MENU key several times. When "Sv SEt" is displayed, press the →O/T← key. The [MENU] and # symbols are displayed to indicate numeric value entry. -
Page 45: Time (Caw/Cax Series Only)
26. TIME (CAW/CAX series only) The time can be changed by ±30 second increments or by entering the time completely. Choose the appropriate function according to the amount of time correction required. Adjustment by ±30 Second Increments (1) From the mass display, press the CAL/MENU several times. When "SEttinG"... -
Page 46: Printing The Date & Time (Caw/Cax Series Only)
27. PRINTING THE DATE & TIME (CAW/CAX series only) It is possible to set the balance to send the date and time to a peripheral device such as a printer. This records the date and time of the internal clock on the span calibration record. - Page 47 Repeatability (1) Load and unload a weight that is close to the weighing capacity of the balance 10 times. Load the weight on the center of the pan and record the values described below. Xi: Displayed value when the weight is loaded.
-
Page 48: Maintenance
The pan can be removed and washed with water. Verify that the pan is completely dry before replacing it on the balance. 30. TROUBLESHOOTING Items identified by [S] may require factory service. Please contact your CAS corporation representative if these problems occur. •Cause → Countermeasure When Trouble... - Page 49 • Error such as • Hardware failure. → [S] ERR0x is displayed. • Err20 • The numeric value entered is incorrect. displayed. • The user has attempted to release a registered unit and the software will not allow it. → It is displayed when only one unit is registered or only the ratio measurement unit is registered.
-
Page 50: Error Message
30.1 Error Message Items identified by [S] may require factory service. Please contact your CAS corporation representative if these error messages are displayed. Error Description Corrective Action Message Zero point deviates largely Empty the pan. CAL E2 during span calibration. Large deviation during... -
Page 51: Specifications
31. SPECIFICATIONS Model CAW320 CAW220 CAW120 CAX200 Weighing capacity 320g 220g 120g 200g Minimum display 0.1mg Standard deviation σ ≤0.15mg σ ≤0.1mg σ Linearity ±0.3mg ±0.2mg External weight value for calibration 300g 200g 100g 200g (recommended value) Pan diameter φ80mm (mm) Main unit 216×315×330... -
Page 52: Parts List
32. PARTS LIST Optional Peripherals Part Name Part No. Comments Electronic Printer 321-42008-10 Including AC EP-60A adaptor for 100V Including AC Electronic Printer 321-42008-20 adaptor for EP-60A 100~250V Electronic Printer 321-42008-90 Without AC EP-60A adaptor For IBM-PC/AT, RS232C Cable 321-60754-01 DOS/V 25P-9S (1.5 m) (Null modem type) -
Page 53: Windows Direct Function
® 34. Windows DIRECT FUNCTION With CAW, CAX, and CAY series balances, data can be directly transferred to a PC enabling the displayed values to appear in the application software of Windows* such as LOTUS 1-2-3 and MS-Excel just as if they were entered from the keyboard. - Page 54 Checking the Operation (1) Open "Note Pad" (or similar application) provided with Windows*. (2) Every time the PRINT key is pressed, confirm that the numeric values displayed on the balance appear on the PC screen. (3) To end the application, follow the normal end procedure. ®...
-
Page 55: Using Peripheral Units
When the Function Does Not Operate At All: • For some notebook PCs, it is possible to exclude the RS-232C port for energy saving purposes. Set the PC so that the RS-232C port can be used. • Change the settings of COM 1 to 4. Re-start Windows* after the changes are complete. -
Page 56: Input And Output Data Format
35. INPUT AND OUTPUT DATA FORMAT In the following description, indicates space and [DL] indicates delimiter. Input Data [Command Code] + [DL] F See Section 36. “COMMAND CODE.” Output Data • At mass display: S-200.0000g [DL]* S-200.0000 [0] g [DL]* Polarity positive space ( ) negative minus(-) -
Page 57: Command Code
36. COMMAND CODE The following commands are available when the balance is connected to a peripheral device. ☞ For data format, see Section 35.“ INPUT AND OUTPU DATA FORMAT.” If characters or control codes not described here are entered, normal operation of the balance and correct weighing may be compromised. - Page 58 Comman Function Contents d code "Momme" registration ☞ See Section 10. “REGISTRATION, RELEASE, SDENSE "Solid specific gravity" AND SELECTION OF registration MEASUREMENT UNIT.” LDENSE "Liquid specific gravity" registration 100 % setting g/% selection "g" registration release "mg" registration release "%" registration release PERCEN "Number of pieces"...
-
Page 59: Configuration Diagram Of Peripheral Units
37. CONFIGURATION DIAGRAM OF PERIPHERAL UNITS DATA I/O EP-60A (The cable is a standard accessory of the printer) KEYBOARD [NEC-PC98 series] RS-232C cable RS-232C (25p-25p 1.5m, Null modem) [IBM-PC/AT Compatibles] RS-232C cable (25p-9p 1.5m, Null modem) DC IN AC adaptor (Standard accessory of the balance)
