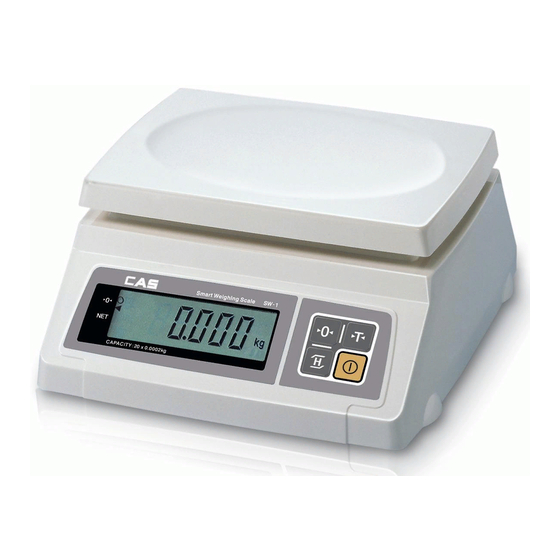

Service Service Service Service SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W Manual Manual Manual Manual SW-1S/1C/1W SERVICE MANUAL (Revision 0.1 / 2008.06.17) 01/22/10...
WE hope that your departments enjoy with high quality of CAS product. This manual will help you with proper operations and care of the SW-1S/1C/1W series. Please keep it handy for the future references. 1.2. Precaution •...
2.8kg Weight 3.7kg(SW-1W : WaterProof Type) 1.5V x 6 units (D size Battery) or 9V Adapter Power Op.Temperature -10° C ~ +40° C / 14° F ~ 104° F Options 9V Adapter 300mA, Rear Display, Stainless Tray (SW-1S, SW-1C) 01/22/10...
Page 5
Service Manual Service Manual Service Manual Service Manual SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W Minimum Voltage About 5.5V Level The Battery Approx. 500hours (Manganese battery)/ Operation time 1000hours (Alkaline at 20° C /68° F) 01/22/10...
To do [SET] key in the SETUP mode. TARE To input or cancel the tare (the weight of container). HOLD To make the weight of item stable. This weight is average value. POWER To turn on or off. 1.5. Dimension 1.5.1. SW-1S/1C 01/22/10...
Page 7
Service Service Service Service SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W Manual Manual Manual Manual 1.5.2. SW-1W 01/22/10...
Service Service Service Service SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W Manual Manual Manual Manual 2. Calibration 2.1. General Calibration Pressing and holding calibration switch press [POWER] key to go to calibration mode. User can move to other mode by using [ZERO] key in the calibration mode.
Service Service Service Service SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W Manual Manual Manual Manual < Modes > 2.1.1. C4 Setting 2.1.1.1. C4-1 Setting BIT 6~7 Initial Zero range Disable BIT5 Last digit enable Enable ±3% key zero percent BIT4 Key zero percent ±2% key zero percent...
Service Service Service Service SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W Manual Manual Manual Manual 2.1.3. Gravity Constant Value Setting (C-9) Current gravitational Acceleration value is set to 9.7994 m/s (11) Pressing and holding “Calibration Switch” press [POWER] key. After “CAL” message blinks three times and shows the version of scale, it displays “CAL-1”...
Service Service Service Service SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W Manual Manual Manual Manual 2.1.6. Percent Calibration (C-7) (1) Pressing and holding “Calibration Switch” press [POWER] key. After “CAL” message blinks three times and shows the version of scale, it displays “CAL 1”...
Service Manual Service Manual Service Manual Service Manual SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W 3. The Schematics and Diagram 3.1. System Block Diagram 1S/1C/1W MAIN BOARD Load Cell REAR ONE MODULE DISPLAY LCD Display Driver POWER Dry BATTERY (9V Adaptor) (1.5V(D type) * 6 )
Service Manual Service Manual Service Manual Service Manual SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W 4. Exploded View 4.1. SW-1S/1C 01/22/10 01/22/10 01/22/10 01/22/10...
Page 18
Service Manual Service Manual Service Manual Service Manual SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W 4.2. SW-1W 01/22/10 01/22/10 01/22/10 01/22/10...
Service Manual Service Manual Service Manual Service Manual SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W 5. Load Cell drawing 1 1 2 1 1 2 (sp ri n g e l e m e n t) 2 0 9 0 5 0 1...
Service Manual Service Manual Service Manual Service Manual SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W 6. Part Location 6.1. Main PCB (Top) 01/22/10 01/22/10 01/22/10 01/22/10...
Service Manual Service Manual Service Manual Service Manual SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W 6.2. Main PCB (Bottom) 01/22/10 01/22/10 01/22/10 01/22/10...
Service Manual Service Manual Service Manual Service Manual SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W 7. Error Messages & Solution Error Message Description Solution on Display "Err 0" Remove unstable facts. The "Err 0" occurs when scale is not stable. The "Err 1" occurs when a current zero point has Please call your CAS "Err 1"...
Service Manual Service Manual SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W 8. Part List 8.1.1 SW-1S/1C/1W (Electronic part) 1.1 MAIN PCB ASS'Y [140SW5EMAPUN0101] 1.1 MAIN PCB ASS'Y [140SW5EMAPUN0101] 1.1 MAIN PCB ASS'Y [140SW5EMAPUN0101] 1.1 MAIN PCB ASS'Y [140SW5EMAPUN0101] Part Name Part Name Part Name...
Page 29
Service Manual Service Manual Service Manual Service Manual SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W 8.1.3 SW-1W (Mechanical part) 1.1 BODY ASS'Y 1.1 BODY ASS'Y 1.1 BODY ASS'Y 1.1 BODY ASS'Y SW-1W BODY ASS'Y SW-1W Q'ty BODY ASS'Y 1000A0002270 CONNECTOR RUBBER PLATE SW-1W(39.6*29.6*1.2t)
Page 31
Service Manual Service Manual Service Manual Service Manual SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W L/C BRACKET ASS'Y 1030A000039A BRACKET-L/C LOWER SPC 120*100*4T(SW-1) L/C BRACKET ASS'Y 1100A0000740 BRACKET-L/C TOP SW-WATERPROOF(103.9*73.9*14.5) L/C BRACKET ASS'Y 1130A0000030 BOLT-LIMIT M5*34.9(Zn )(SW-2,5,10) L/C BRACKET ASS'Y ...
Page 32
Service Manual Service Manual Service Manual Service Manual SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W SW-1S/1C/1W 1.6 UPPER CASE ASS'Y 1.6 UPPER CASE ASS'Y 1.6 UPPER CASE ASS'Y 1.6 UPPER CASE ASS'Y SW-1W SW-1W IMAGE ASS'Y IMAGE ASS'Y 1810SW000332 SPEC PLATE...
