Vidikron Vision 100 Instruction Manual

Lightamp dlp projector
Hide thumbs Also See for Vision 100:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Operation Manual

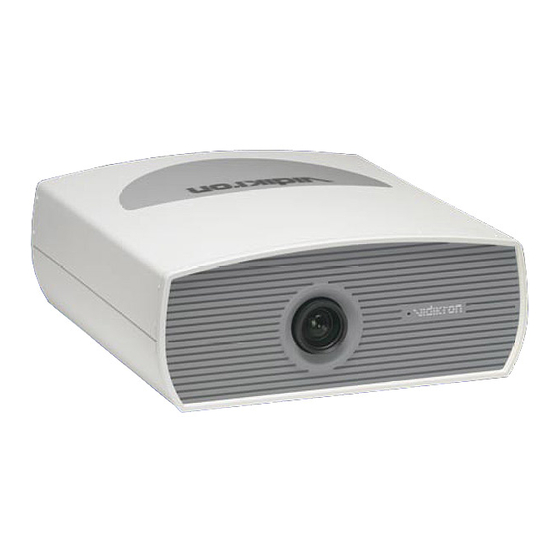

L I G H T A M P ™ D L P ™ P R O J E C T O R
Version 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vision 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vidikron Vision 100

Summary of Contents for Vidikron Vision 100

  • Page 1 L I G H T A M P ™ D L P ™ P R O J E C T O R Version 1.1...

  • Page 2: Table Of Contents

    Introduction ... 2 Warnings & Safety Precautions ... 3 Two Year Limited Warranty ... 5 Projector Rear Panel Description ... 7 Remote Control Description ... 9 Quick Connection and Setup Guide... 11 How to Install or Remove the Projector Lamp ... 13 Lens Shift Range ...

  • Page 3: Introduction

    LightAmp™ engine developed by Vidikron engineers to provide the perfect blend of high quality image reproduction and extremely high light output. As a result, the Model 100 produces an amazing 3500 ANSI lumens of light output (CSMS™ Light Output of 78.5 ft-Lamberts). The Model 100’s 16:9 native aspect ratio DMD™...

  • Page 4: Warnings & Safety Precautions

    FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. CAUTION: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT REMOVE COVER. DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
  • Page 5 Vidikron Dealer for a replacement cord. · Do not remove the cover of the Projector for any reason. If any problems arise with the unit, please contact a Vidikron Dealer or Vidikron International for service. Removing the covers will void the warranty.

  • Page 6: Two Year Limited Warranty

    (6) months or 1000 hours, which ever comes first, from the effective date of delivery to the end user. In addition, Vidikron will provide a new or rebuilt replacement lamp for the lamp that fails due to defects in materials or workmanship for a period of six (6) months or 1000 hours, which ever comes first, from the effective date of delivery to the end user.

  • Page 7: Additional Information

    IMPORTANT: WARRANTY REGISTRATION: Please fill out and mail your warranty registration card. It is imperative that Vidikron knows how to reach you promptly if we should discover a safety problem or product update for which you must be notified.

  • Page 8: Projector Rear Panel Description

    DVI 1 (Digital) DVI input #1, HDCP compliant. DVI 2 (Digital) DVI input #2, HDCP compliant. COMPONENT VIDEO (RCA connectors) Standard Definition (480i/576i) Component (YPrPb) input. This is the input for component video from sources such as DVD players. (For best results do not run DVD player in progressive mode). HD 1 (Analog BNC connectors) High Definition input #1, can be RGB(HV) or YPrPb, 480p, 720p, 480i, 576i or 1080i.
  • Page 9 Pressing the MENU button will bring up the main menu. Also, if you are in an adjustment mode or function, pressing MENU will bring the menu back one level. IR RECEIVER Receives the IR commands from the remote. POWER INPUT (100-230v) MAIN POWER SWITCH Disconnects or applies main power to the processor. POWER BUTTON Press once to toggle on from Standby mode to On mode, a second time to place into Standby mode.

  • Page 10: Remote Control Description

    IR OUTPUT INDICATOR Illuminates when a button in pressed, indicating that an IR signal is being transmitted. LIGHT BUTTON Illuminates the remote backlight for improved night visibility. OFF and ON BUTTON Switches the projector ON and OFF. (These do not operate when POWER/STANDBY indicator of the main unit is off.) CODE BUTTON...

  • Page 11: Video Button

    REMOTE CONTROL DESCRIPTION MEMORY SETTINGS BUTTONS Four video preset memory setting buttons are available: ISF NT – ISF Night ISF DAY – ISF Day CUST 1 – Custom One CUST 2 – Custom Two SOURCE SELECTION BUTTONS Direct source selection buttons: These will enable direct access to desired inputs, or selection of a number in certain cases. These buttons are: VIDEO BUTTON Press this button to select VIDEO (composite video) as the source.

  • Page 12: Quick Connection And Setup Guide

    QUICK CONNECTION AND SETUP GUIDE While there are many different ways to connect your source equipment to your Vidikron Projector, the examples below are the most common. ANALOG INPUTS: • Composite Video Input Composite video is the most common type of signal used, but is also the lowest in picture quality. Many sources have outputs that are limited to composite video, such as some VCR’s and camcorders;...
  • Page 13 QUICK CONNECTION AND SETUP GUIDE Follow the steps below ensure proper installation of the Vision Model 100 projector. NOTE: These steps should be performed by a qualified custom video installation specialist. Step I Connection: 1. Connect Power to the Projector.

  • Page 14: How To Install Or Remove The Projector Lamp

    HOW TO INSTALL OR REMOVE THE PROJECTOR LAMP IMPORTANT NOTE: LAMP INSTALLATION OR REMOVAL SHOULD ONLY BE PERFORMED BY AN AUTHORIZED VIDIKRON SYSTEM INSTALLER OR TECHNICIAN. Step One: INSURE PROJECTOR AC POWER IS OFF AND POWER CORD IS REMOVED PRIOR TO INSTALLING OR REMVOING THE LAMP ASSEMBLY.
  • Page 15 HOW TO INSTALL OR REMOVE THE PROJECTOR LAMP Next, grasp the lamp assembly handle and pull gently, removing the lamp module out of the projector housing. Lamp Assembly Handle Step Four: Replace lamp module and replace, retighten all screws. Lamp Cover Screws...

  • Page 16: Lens Shift Range

    TD = 120” to 140” lens to screen 0.24 X 56” = 13.44” up or down 0.10 X 100” = 10.0” left or right 0.05 X 100” = 5.0” left or right 0.10 X 56” = 5.6” up or down Example: 56”...
  • Page 17 TD = 235” to 360” lens to screen 0.24 X 56” = 13.44” up or down 0.16 X 100” = 16.0” left or right 0.05 X 100” = 5.0” left or right 0.10 X 56” = 5.6” up or down Example: 56”...

  • Page 18: Example Of Horizontal And Vertical Lens Shift

    LENS SHIFT RANGE Example of Horizontal and Vertical Lens Shift » VERTICAL LENS SHIFT (UP OR DOWN) Note: This is a general example of Vertical Lens Shift. Each lens type will vary. No particular lens was ����������� used in this example. ����������...

  • Page 19: Menu Description And Navigation

    MENU DESCRIPTION AND NAVIGATION When the MENU button is pressed on either the remote control or the rear panel, the main menu will appear on-screen. An example of the main menu is shown to the right. The UP and DOWN buttons on the rear panel, and IR Remote Control will move the selected item on the menu.

  • Page 20: Aspect Ratio

    Aspect Ratio provides selection of one of five aspect ratios: Anamorphic, Standard 4:3, Letterbox, IntelliWide and Cinema. To select an aspect ratio via the main menu, press either the up and down buttons on the remote or rear panel, highlight ASPECT RATIO and press ENTER.
  • Page 21 CONTRAST adjusts the white level of the image. For Fixed-pixel displays, adjust contrast until there is a distinct definition between the two brightest bars. NOTE: For best results, Vidikron recommends that CONTRAST be set to ‘0’ or very close to it. (see lower right chart).

  • Page 22: Input Position

    This information will help your service technician if there is a problem with your system. libration (For Service Only) » Ca Contact Vidikron Technical Support for assistance » Service (For Service Only) Contact Vidikron Technical Support for assistance MENU DESCRIPTION AND NAVIGATION >...

  • Page 23: Basic Troubleshooting Tips

    The following is a basic troubleshooting guide that can assist you in resolving typical problems may result in normal operation. If you have encountered problems that are not listed in this guide, please contact your Vidikron dealer for assistance. PROBLEM The Projector does not turn on after initial installation.

  • Page 24: Rs-232 Communications

    RS-232 input connector pin numbers: TxD= Pin# 2, RxD= Pin# 3, GnD= Pin# 5 Command format (single command): command value (i.e. brightness 100). NOTE: A space (not an underscore) or comma may be used between the command and its value.

  • Page 25: Rs-232 Commands

    (min/max) POWER COMPOSITE SVIDEO1 SVIDEO2 COMPONENT DVI1 DVI2 HD1Pass HD2Pass OUT43 OUT169 ANAMORPHIC STANDARD LETTERBOX INTELLIWIDE RGBNN RGBPP RGBS IHPOS -100/100 IVPOS -100/100 IWIDTH -100/100 IHEIGHT -100/100 OVERSCAN 0/10 OHPOS -100/100 OVPOS -100/100 OWIDTH -100/100 OHEIGHT -100/100 BRIGHTNESS -100/100 CONTRAST...
  • Page 26 Command Parameter (min/max) IHPOS? IHEIGHT? OHPOS? OHEIGHT? COLOR? ASPECT? INPUT? OUTRES? SERIALNUM? DATE? IVPOS? OVERSCAN? OVPOS? BRIGHTNESS? TINT? PRESET? POWER? ASPECTIN? SWVER? IWIDTH? PHASE? OWIDTH? CONTRAST? SHARPNESS? BKGND? INRES? ASPECTOUT? HWVER? Value Stored? Description Returns input horizontal position value Returns input vertical height value Returns output horizontal position value Returns output vertical height value Returns color setting value...

  • Page 27: Dimensions

    DIMENSIONS ������ � ������ ����� ����� � � ����� ������...

  • Page 28: Specifications

    (2) DVI w/HDCP Discrete infrared remote, (1) RS-232, 9-pin Connector (3) 12V DC, 1/8A 100 – 240V AC, 50/60 Hz, 610W 40° – 95° F, (5° – 35° C), 0% – 90% Humidity (non-condensing) Width: 23 5/8 in. (600.00 mm) Depth: 26 7/8 in.
  • Page 29 RUMA-011085 1-18-05 v1.1 Vidikron 2900 Faber Street Union City, CA 94587 Ph (510) 324-5900 / Fax (510) 324-5905 1-888-4-VIDIKRON...
