Lund 89122 Installation Instructions

Care and Cleaning
To keep your billet grille looking their best, we recommend using only mild soap and
water and a soft cotton cloth to wash and dry it. Use of rough cleaning agents or
cloths may scratch or dull your billet grille.
Should your billet grille become scratched or dull, we recommend TRENZ® Metal
Polish to bring back the mirror finish. There are three grades of TRENZ® Metal Polish
(Coarse, Medium and Fine) that will help you keep your billet grille looking brand new.
Select the TRENZ® Metal Polishes best for your needs:
1. Course (Red) Polish – For severe scratches and pitted problems.
2. Medium (Green) Polish – For light scratches and dulling problems.
3. Fine (White) Polish – To bring back the mirror finish.
TRENZ® Metal Polish can be used on all metal products, including aluminum, stain-
less steel, brass and copper. If you have additional questions or concerns on the
maintenance of your Lund® billet grille, please call us at 800-328-5863. You may also
use high quality commercially available polish recommended for aluminum accesso-
ries.
Congratulations!
You have purchased one of many quality Lund® branded products offered by Lund
International, Inc. We take the utmost pride in our products and want you to enjoy
years of satisfaction from your investment. We have made every effort to ensure that
your product is top quality in terms of fit, durability, finish and ease of installation.
Lund International, Lund Accessories Division
775 Tipton Industrial Drive, Building 2, Suite F
Lawrenceville, GA 30045
Phone 800-328-5863 • Fax 800-782-5448 • Visit us at lundinternational.com
© 2005 Lund International, Inc. All rights reserved.
Lund® and the Lund® logo are trademarks of Lund International, Inc.
Page 4 of 4
Installation Instructions
Framed Perimeter Grille
For proper installation and best possible fit, please read all instructions BEFORE you begin.
For technical assistance or to obtain missing parts, please call Customer Relations at 1-800-328-5863.
Important Safety Information
To avoid risk of personal injury or property damage:
• Wear safety glasses and gloves while installing billet inserts.
!
• Use caution when working with any power tools.
• Check clearance on vehicle.
CAUTION • Make sure that the billet inserts are secured in place and clears
PRECAUCIÓN
all moving parts of the vehicle.
ATTENTION
• Routinely check security of hardware.
• Do not use automatic "brush-style" car washes.
Contents
Illustrations may vary upon application
A
B
C
6 - 3/16 x 1"
Black Washers
Tools Required
Safety Glasses
and Gloves
Shipping Note
Sometimes the billet products get bent in the shipping
process. You may need to hand bend them to attain the
desired shape.

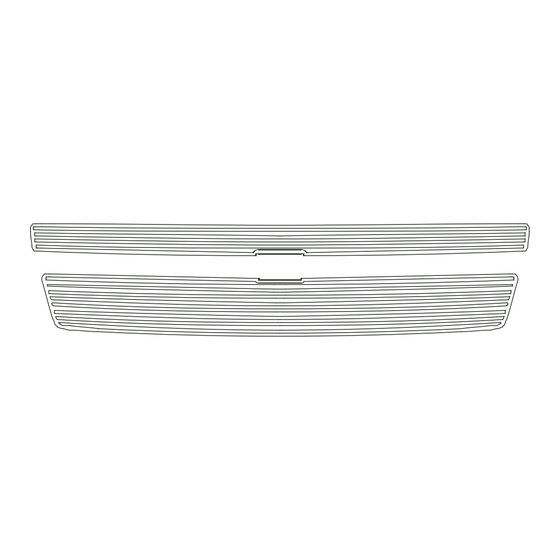

Part Number 89122
Billet Grille
D
6 - 10/32 (N6)
Kep Nuts
Ratchet with
10mm & 3/8" Sockets
Caution
Grille covers may reduce airflow which may result in higher
operating temperatures. Monitor your vehicle's operating
temperature to ensure proper operating conditions.
Page 1 of 4
I-sheet Rev. A1
