Forward

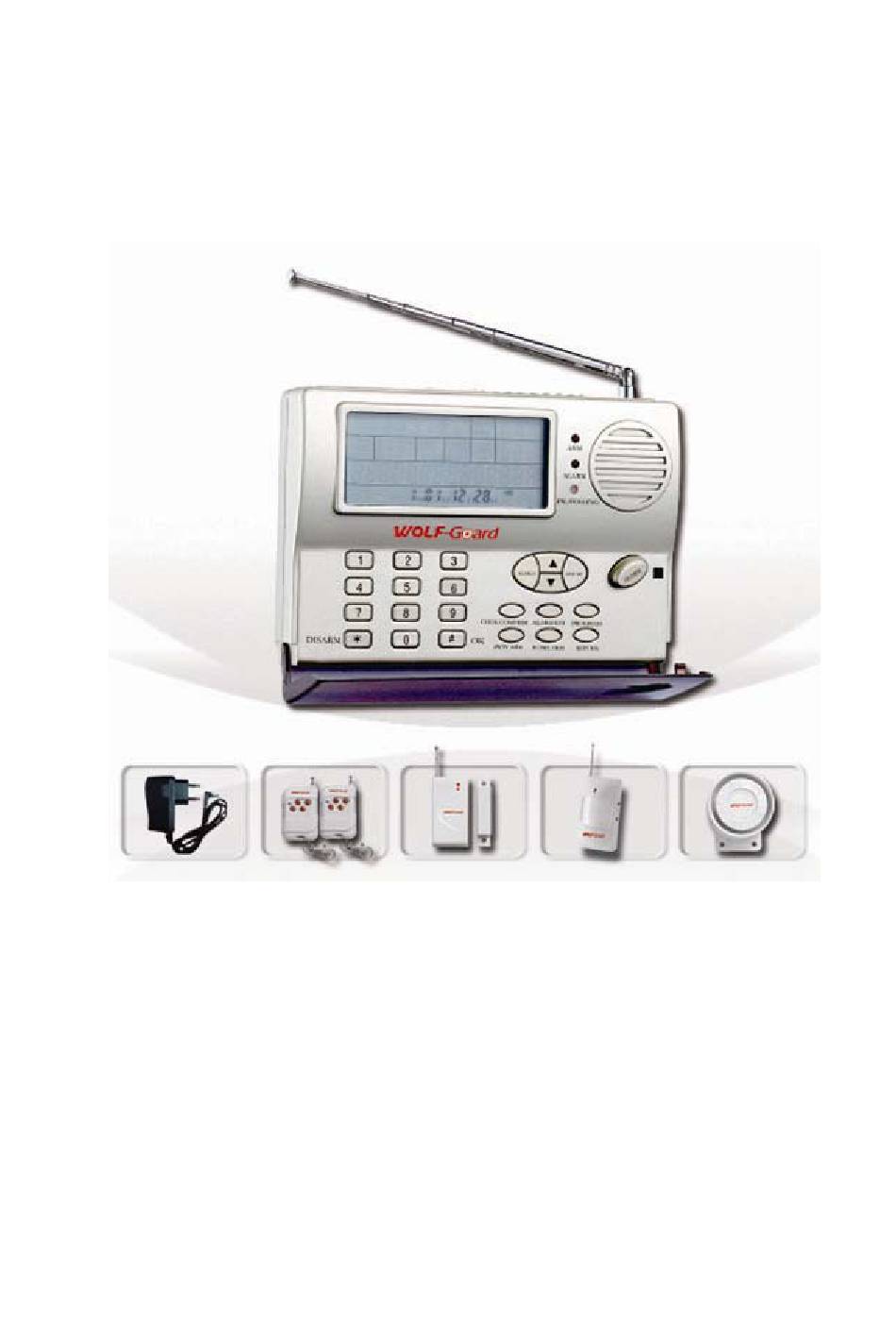

Welcome to use "Wolf-Guard" YL-007Z , English display appliances control & alarm system.
It's a multi-function home security system with burglarproof and appliance control. C
hromatic
back –light English screen makes the operation obvious. High-powered sharp-light proof
detector brings you more safety. Superior program could satisfy various individuation
requirements. All the arming / disarming and alarm memory will be recorded . The safety
bugs can be inspected in time by the tech of detector self-inspection in system. Your
convenient life comes true once the home appliances are in long-distance control by
telephone.
Please read the manual carefully in hopes that the pruduct could serve you well.
Advertisement
Related Manuals for Wolf-Guard YL-007Z
Summary of Contents for Wolf-Guard YL-007Z
- Page 1 Forward Welcome to use “Wolf-Guard” YL-007Z , English display appliances control & alarm system. It’s a multi-function home security system with burglarproof and appliance control. C hromatic back –light English screen makes the operation obvious. High-powered sharp-light proof detector brings you more safety. Superior program could satisfy various individuation requirements.
- Page 2 Telephone network and topology mode ( different mainboard ) realize community securenet thru connecting to Wolf-guard monitoring center. Alarm is priority in the system whenever the telephone is picked up or not.
- Page 3 2……. Figure Key 【*】 Means pause for 1 sec. when setting up alarm telephone, and means confirmation when disarming 【＃】is for inputting confirmation 3………Arming Indicator Light The indicator light twinkle during arming delay and keep shinning after arming 4………Alarm Indicator Light 5………Power Supply/ Patrol Indicator Light The light keep shinning once power supply turned on, and twinkling when meeting patrol fault signal...
-
Page 4: System Installation
System Installation 1. Main Panel Plug the horn into faucet on the back side , telephone line into line-in faucet, joint telephone and the panel through line-out faucet, plug the power supply , turn on the switch, then done with the installation. Press the key 【Unlock】to let panel in disarming status for fear that it alarma when user install door magnet and P.I.R. - Page 5 indicate the quit when it is over. The alarm message must conciseness, for example: this is XXX (address), intruder enter the house, please take action now. 2. Setting Up Alarm Telephone Numbers Under the disarming status, press the programm key on the panel to see the display “...
- Page 6 it is required to reset date and time after electrify every time in order to record alarm system info accurately.) 7. Setting Up Defence Zone Press the key 【Area Set】 on the panel under the disarming status, then press 【 ▲】 and【↓】to choose the right one you want to arm from 1-8 defence zone, press 【#】to confirm.
- Page 7 infomation. 12. Setting Up User’s Code Press holding the key 【Code】 for 3 sec., key in 4-digit user’s code when figure bar cursor twinkling on panel screen. The code will be transmitted to alarm center to identify the users. If your system has not connected with the center yet, it is no necessary for you to set up user code.
- Page 8 through, it will turn to next alarm number automatically and dial every number for 5 times. 4. Remote Phone Call Arming / Disarming , Monitoring You can use any telephone dialing main panel number, it will put through automatically after 8 rings and play the word “ Welcome to intelligent remote control system, please key in password”.
- Page 9 Emission Time：T≥1 second Emission Distance：Without obstruct 80m；Apart distance <15mm Working Envrionment: Temperature -10℃～+40℃ Relative Humidity≤90% P.I.R Detector (Sharp White-light Resistence) ：DC=4.5V~7.2（Inside 5 # Battery 3 PCS） Power Supply ≤100μA Static Current：1 ≤20 mA Emission Current：1 Emission Frequency：f=315±0.2 MH Emission Time：T≥ 1 second Emission Distance：Without obstruct 80m Emission Interval：≤35 second Detective Speed ：0.3~3m/sec.
- Page 10 Storage, Transportation and After Service Temperature -10℃～+40℃ Relative Humidity≤75% Storage Condition: ＜ Ventilation, Without corrupt object, Standard pile layer ＜ Transpotation Condition: Standard pile layer 6, Avoid impact during transit, other condition are as above. After Service: We supply user with perfect after service. Don’t tear open and maintain by yourselves if it doesn’t work., please contact your local seller.
