Use these instructions for the following carports:
©ClearSpan™
All Rights Reserved. Reproduction is prohibited without permission.
Revision date: September 2005
ClearSpan™ Carport
24' Wide (Small and Medium)

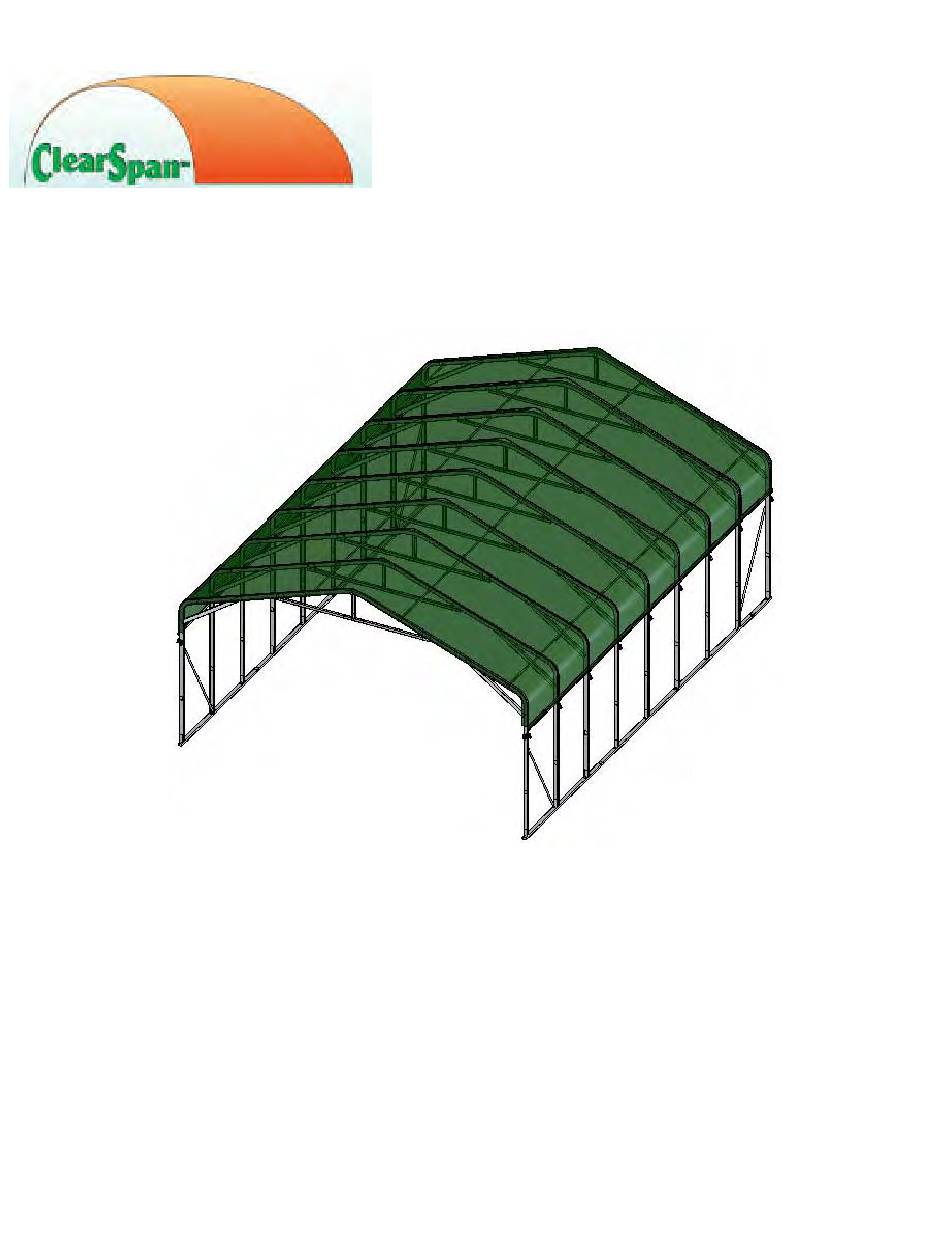

Diagram above may show a different length and/or height.
A "Frame Only" purchase does not include a cover as shown.
ClearSpan™ Carport
104980F (24' x 20')
104981F (24' x 24')
104982F (24' x 28')
104983F (24' x 32')
104984F (24' x 36')
104985F (24' x 40')
104986F (24' x 44')
Advertisement
Related Manuals for ClearSpan Carport 104980F
Summary of Contents for ClearSpan Carport 104980F
- Page 1 ClearSpan™ Carport 24' Wide (Small and Medium) Diagram above may show a different length and/or height. A "Frame Only" purchase does not include a cover as shown. ClearSpan™ Carport Use these instructions for the following carports: 104980F (24' x 20')
- Page 2 Choosing the proper location is an important step before you begin to assemble the structure. The following suggestions and precautions will help you determine whether your selected location is the best location. Visit www.ClearSpan.com for additional products and customer assistance. 1 of 22...
- Page 3 A strut is typically secured to the framework by special brackets and bolts. The words and phrases below are common to most ClearSpan™ shelters and identify the different parts of • Swaged End or Swaged Pipe: The term "swaged"...
- Page 4 The following procedure is a suggested method. Its use depends on the size of the shelter, shelter application, the footings, and the method used to anchor the shelter. Visit www.ClearSpan.com for additional products and customer assistance. 3 of 22...
- Page 5 Square tube fitting (104624) for the center brace tubes Diagram shows the 5' diagonal bracing for rafters for the rafter Vertical bracket (105086) for center rafter bracing QH1070 Pipe Strap used to secure purlins to the rafters. Visit www.ClearSpan.com for additional products and customer assistance. 4 of 22...
- Page 6 3. Repeat the procedure as needed for the remaining 3. Center a 105088 fitting on each mark and secure the base rail. fitting to the rail using Tek screws. Visit www.ClearSpan.com for additional products and customer assistance. 5 of 22...
- Page 7 2. Insert the swaged end of the rafter tubes into the plain ends of the rafter tubes as needed to assemble the rafter. Visit www.ClearSpan.com for additional products and customer assistance. 6 of 22...
- Page 8 7. After connecting the two 64" square tubes, identify 1 (104624): Square Tube Fitting w/1-way plate the center of the assembly and mark the location. 4 (105087): Connection Plate (angled at top) 1 (105086): Vertical Bracket Visit www.ClearSpan.com for additional products and customer assistance. 7 of 22...
- Page 9 S20P020 12. Locate the four (4) connection plates (105087) and attach two (2) plates to the horizontal center brace tube and to the rafter. Visit www.ClearSpan.com for additional products and customer assistance. 8 of 22...
- Page 10 2. Verify that each pipe joint is properly seated. the FRAME ASSEMBLY INSTRUCTIONS that follow. NOTE: These pipes must be taken apart during the assembly procedure. Do not fasten them together at this time. Visit www.ClearSpan.com for additional products and customer assistance. 9 of 22...
-
Page 11: Assemble The Frame
Tek must remain in place until other rafters are set in place screw as shown above. and attached to the first rafter and each other. Visit www.ClearSpan.com for additional products and customer assistance. 10 of 22... - Page 12 8' Side Struts Diagram may show a shelter of a different length. See the Carport Diagrams attachment at the back of these instructions for a diagram of each carport length. Visit www.ClearSpan.com for additional products and customer assistance. 11 of 22...
- Page 13 5. After securing the struts, complete the next 19. Remove the temporary bracing (if needed), and procedure to square the assembled frame. install the side struts. Visit www.ClearSpan.com for additional products and customer assistance. 12 of 22...
- Page 14 READ THE MUST READ DOCUMENT TO PROPERLY ANCHOR THE SHELTER. ATTENTION: After anchoring the shelter frame, install the diagonal bracing. The diagrams below illustrate two possible ways to properly anchor the shelter to the site. Visit www.ClearSpan.com for additional products and customer assistance. 13 of 22...
- Page 15 4. After all diagonal bracing is installed and secured to tubing. the assembled frame, install the side panels. When installed properly, the panel will sit to the inside of the rafter leg tubing as shown above. Visit www.ClearSpan.com for additional products and customer assistance. 14 of 22...
- Page 16 The remaining ratchets are measure approximately five (5) feet up the leg and attached to the legs of the rafters along the sides. mark the location. Visit www.ClearSpan.com for additional products and customer assistance. 15 of 22...
- Page 17 8. After the ends of the main cover are secured to the assemble the two (2) cover conduits. frame, locate the 1" x 3' straps used to secure the sides of the main cover to the frame. Visit www.ClearSpan.com for additional products and customer assistance. 16 of 22...
- Page 18 If the strap length is to too long and it binds in the ratchet, loosen the ratchet, remove the excess strap length, and retighten. 14. After the main cover is tightened, read the Shelter Care and Maintenance information that follows. Visit www.ClearSpan.com for additional products and customer assistance. 17 of 22...
- Page 19 Please contact a ClearSpan™ representative for additional information. • For replacement or missing parts, call 1-800-245-9881 for assistance. NOTE: With the exception of Truss Arch buildings, ClearSpan™ shelters and greenhouses do not have any tested loading criteria. Visit www.ClearSpan.com for additional products and customer assistance.
- Page 20 CARPORT DIAGRAMS (24' wide) 104980F (24' x 20') 104981F (24' x 24') 104982F (24' x 28') Visit www.ClearSpan.com for additional products and customer assistance. 19 of 22...
- Page 21 104983F (24' x 32') 104984F (24' x 36') 104985F (24' x 40') Visit www.ClearSpan.com for additional products and customer assistance. 20 of 22...
- Page 22 104986F (24' x 44') Visit www.ClearSpan.com for additional products and customer assistance. 21 of 22...
- Page 23 Notes and Comments Visit www.ClearSpan.com for additional products and customer assistance. 22 of 22...
