Summary of Contents for PVI VECASTER PRO Series

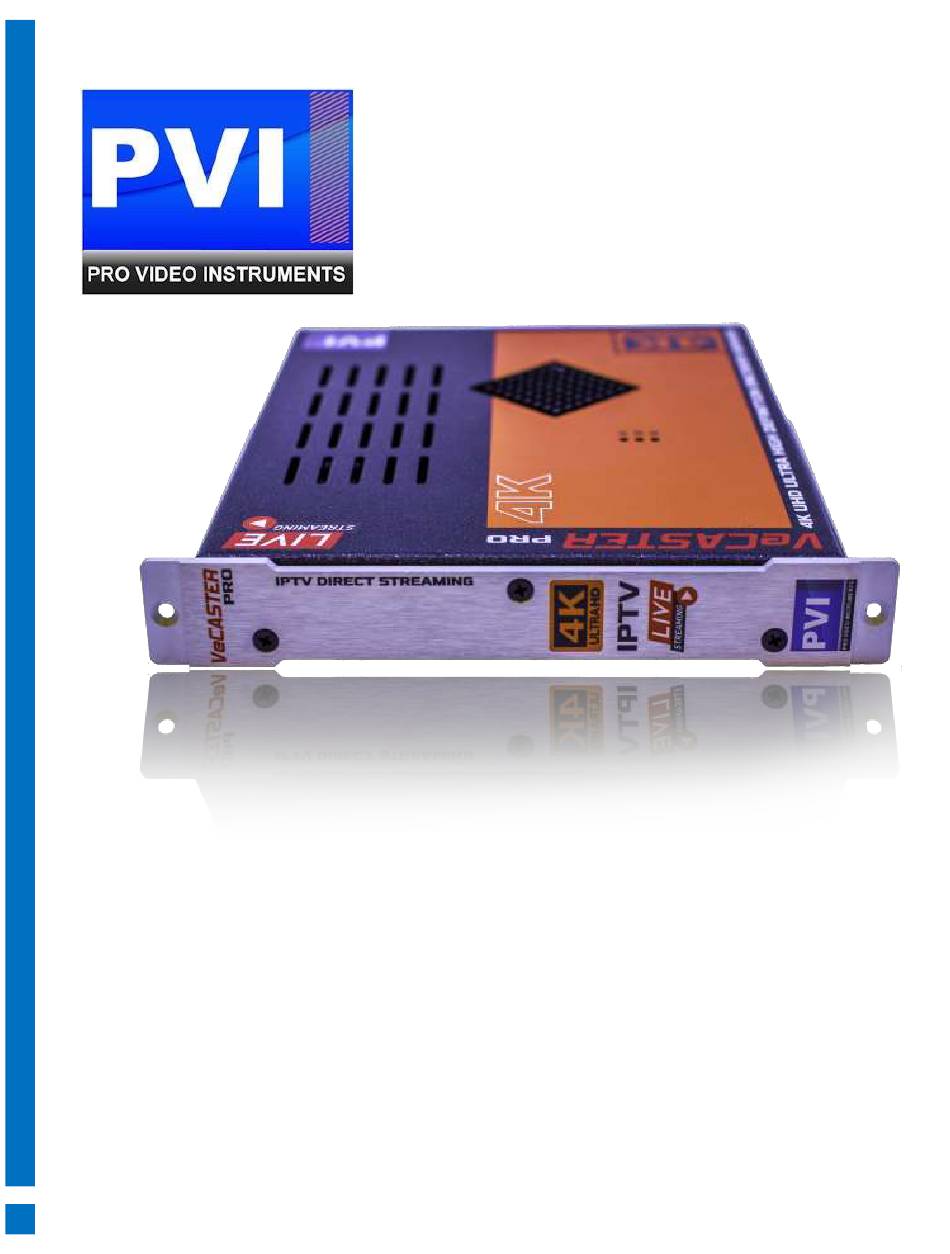

- Page 1 VECASTER PRO SERIES H264/H265 ENCODER USER MANUAL...
- Page 2 Pro Video instruments VECASTER PRO SERIES H264/H265 ENCODER PRODUCT SPECS & FEATURES Power - 12v/DC (12v/2A 5W) Encoding - Latest H.264/H265 High Efficiency Encoding Technology (Depending on Model) HD 720P/ 1080I/1080P / 4K UltraHD (Depending on Model) @ 60 Hz Ultra Low Latency. Standard Baseline/Main/High Profile Support.
- Page 3 Free Unlimited Tech support over the phone is always available Mon-Fri 9 am / 4 pm EST US. For troubleshooting or questions please open a Ticket on our site pvisupport.com Your Satisfaction is top priority and most important for us. VeCaster Pro Series H264/H265 Encoder...
- Page 4 170 171 … Write down these values, or put a sticker on each unit with the new assigned IP address so it will be easy to login to the unit in future without the need to reset it. Depending on your setup it’s suggested to use a Multicast IGMP enabled switch to help with the traffic. VeCaster Pro Series H264/H265 Encoder...
- Page 5 Pro Video instruments PVI - PC CONNECTION GUIDE On Windows open your control panel Once on control panel, open Network and Sharing (Network and Internet for Windows 8 and above) VeCaster Pro Series H264/H265 Encoder...
- Page 6 Pro Video instruments Once you have Network and Sharing Center open, Click on “Change adapter settings.” Right Click on your Local Ethernet connection and click on “properties.” VeCaster Pro Series H264/H265 Encoder...
- Page 7 Product. Click ok once you are done and close everything. You are now ready to connect to the Web interface of your Unit. VeCaster Pro Series H264/H265 Encoder...
-
Page 8: Web Interface
This is at the bottom of the web interface. Here you can change between your different streams, Network settings, Audio settings, and Advance system menu. Your main focus would be on MAIN STREAM and NETWORK. VeCaster Pro Series H264/H265 Encoder... -
Page 9: Main Stream
NOTE: If the unit starts slowing down or the CPU usage is too high under the status page, please disable any formats you are not using or Factory Reset the Unit under the Systems Tab. VeCaster Pro Series H264/H265 Encoder... -
Page 10: On-Screen Display (Osd)
TEXT Y: [0-1080] – Up and down position of the Text FONT: [8-72] – Size of Text ALPHA: Opacity of the Text [0-128] COLOR: Color of the Text BG: Background color of the text if you wish VeCaster Pro Series H264/H265 Encoder... -
Page 11: Picture Settings
Picture Y: [0-1080] – Up and down position of the Picture ALPHA: Opacity of the Picture [0-128] NETWORK Here you can adjust the network settings to match your needs of your specific network or switch. VeCaster Pro Series H264/H265 Encoder... -
Page 12: Audio Encoding Settings
Pro Video instruments AUDIO ENCODING SETTINGS Here you can adjust your Audio Format and Volume for the Streams to suit your needs. The settings by default work just fine. VeCaster Pro Series H264/H265 Encoder... - Page 13 Please don’t change these settings unless you know what you are doing or require a specific setting for your application such as a different Multicast Type (UDP/RTP). Changing these settings could result in unwanted effects to your video Stream. VeCaster Pro Series H264/H265 Encoder...
- Page 14 Pro Video instruments VeCaster Pro Series H264/H265 Encoder...
-
Page 15: Tech Support
TeamViewer. You can download and install a copy of TEAMVIEWER Version 11 from teamviewer.com or we can provide you a temporarily access link by opening a Ticket and requesting support. VeCaster Pro Series H264/H265 Encoder...
