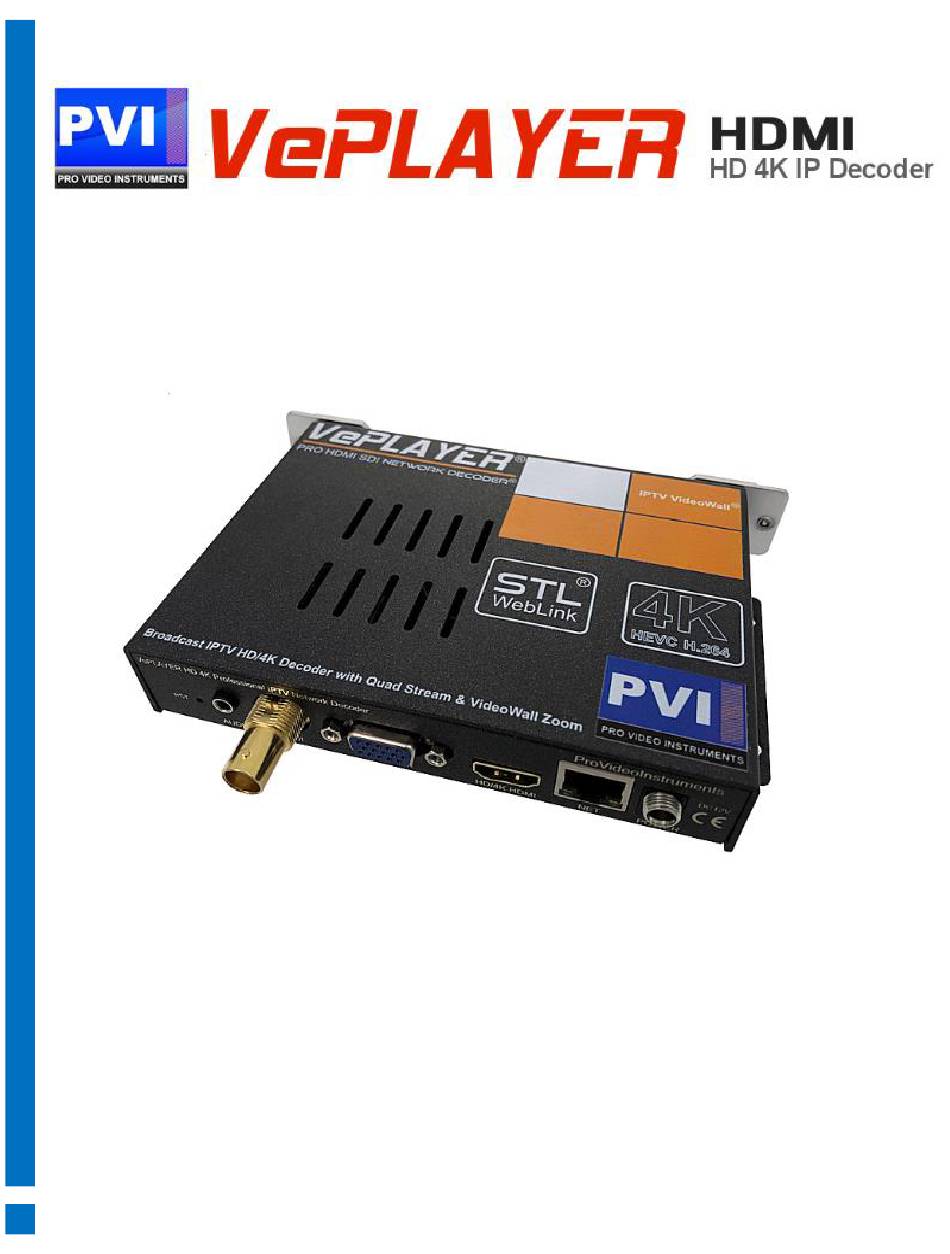

- Page 1 VEPLAYER PRO SERIES IPTV DECODER USER MANUAL...
- Page 2 Pro Video instruments VEPLAYER PRO SERIES IPTV DECODER PRODUCT FEATURES Power – 12V 1A DC, Power Supply Cable included. High quality HD Video Stream Decoding. Compact design makes installation easy. Supports H.264 baseline/main/high profile L4.2, H.265 main profile, MJPEG/JPEG baseline.
- Page 3 If you change log-in credentials and those changes are lost, you can reset the VEPLAYER by pressing for 10 seconds the reset button located on the rear panel. This resets ALL settings, including the IP and Log-in info. VEPLAYER Pro Series IPTV Decoder...
- Page 4 Frame Rate (fps): Shows current video frame rate, in frames per second. • Code Rate (kbit/s): Shows current video bitrate, in kilobits per second. If using Quad Split Screen, each “Channel” will show its own status information. VEPLAYER Pro Series IPTV Decoder...
- Page 5 Cache (ms): Set video cache, from 0 up to 4000 ms. If Quad Split Screen is enabled, each quadrant will display its own “Channel” for address input, audio control, and cache. TO SAVE CHANGES: CLICK “SET UP”. VEPLAYER Pro Series IPTV Decoder...
- Page 6 Mask: Set Subnet Mask for this device, if DHCP is disabled. Gateway: Set Default Gateway for this device, if DHCP is disabled. MAC: Displays MAC address of this device. DNS: Set DNS server address, if DHCP is disabled. TO SAVE CHANGES: CLICK “SET UP”. VEPLAYER Pro Series IPTV Decoder...
- Page 7 If you change log-in credentials and those changes are lost, you can reset the VEPLAYER by pressing for 10 seconds the reset button located on the rear panel. This resets ALL settings, including the IP and Log-in info. VEPLAYER Pro Series IPTV Decoder...
- Page 8 Brightness: Adjust brightness, on scale of 0 – 100. Contrast: Adjust contrast, on scale of 0 – 100. Hue: Adjust hue, on scale of 0 – 100. Saturation: Adjust saturation, on scale of 0 – 100. TO SAVE CHANGES: CLICK “SET UP” VEPLAYER Pro Series IPTV Decoder...
- Page 9 X/Y: Set the Vertical and Horizontal positioning of this region. X = 0, Y = 0 is the top left corner of the display. LOGO Preview: If using Image OSD type, this shows the selected logo image. Click on the image to upload a new image. Requires 200x200 px BMP format image. VEPLAYER Pro Series IPTV Decoder...
- Page 10 Font Color: Set the font color of this block of text. TO SAVE CHANGES: CLICK “SET UP” SYSTEM SETTINGS – CROP SETTING Crop the image to only view a specific part. Select by clicking System Setting, then Crop Setting. This feature is currently under development. VEPLAYER Pro Series IPTV Decoder...
- Page 11 Allows you to view the current software version, and perform software updates. Select by clicking System Setting, then System Update. NOTE: Only perform this function as directed by PVI technical support staff, using software and instructions provided by PVI. Updating improperly may damage the device and void your warranty.
- Page 12 SYSTEM SETTINGS – REBOOT DEVICE Use to restart the device remotely. Select by clicking System Setting, then Reboot Device. Click REBOOT to restart the unit. This is a simple restart, no settings will be lost. VEPLAYER Pro Series IPTV Decoder...
-
Page 13: Specifications
G711A/G711U/AAC/AAC+/AAC++/AC3/MP2/MP3 Audio Channels Stereo Audio Sample Rate 8000/11250/22500/44100/48000 Hz HDMI Video Output 2160P@30, 1080P@60, 1080I@60, 1080P@50, 1080I@50, Supported Resolutions 1080P@30, 1080P@25, 720P@60, 720P@50, 576P@50, 480P@60 CVBS Video Output PAL 720*576 / NTSC 720*480 Supported Resolutions VEPLAYER Pro Series IPTV Decoder...
