Quick Start-up Guide
How to wire and set up the relays on the FLXA402
1. Wiring Relays
Cut any power to the analyzer
a.

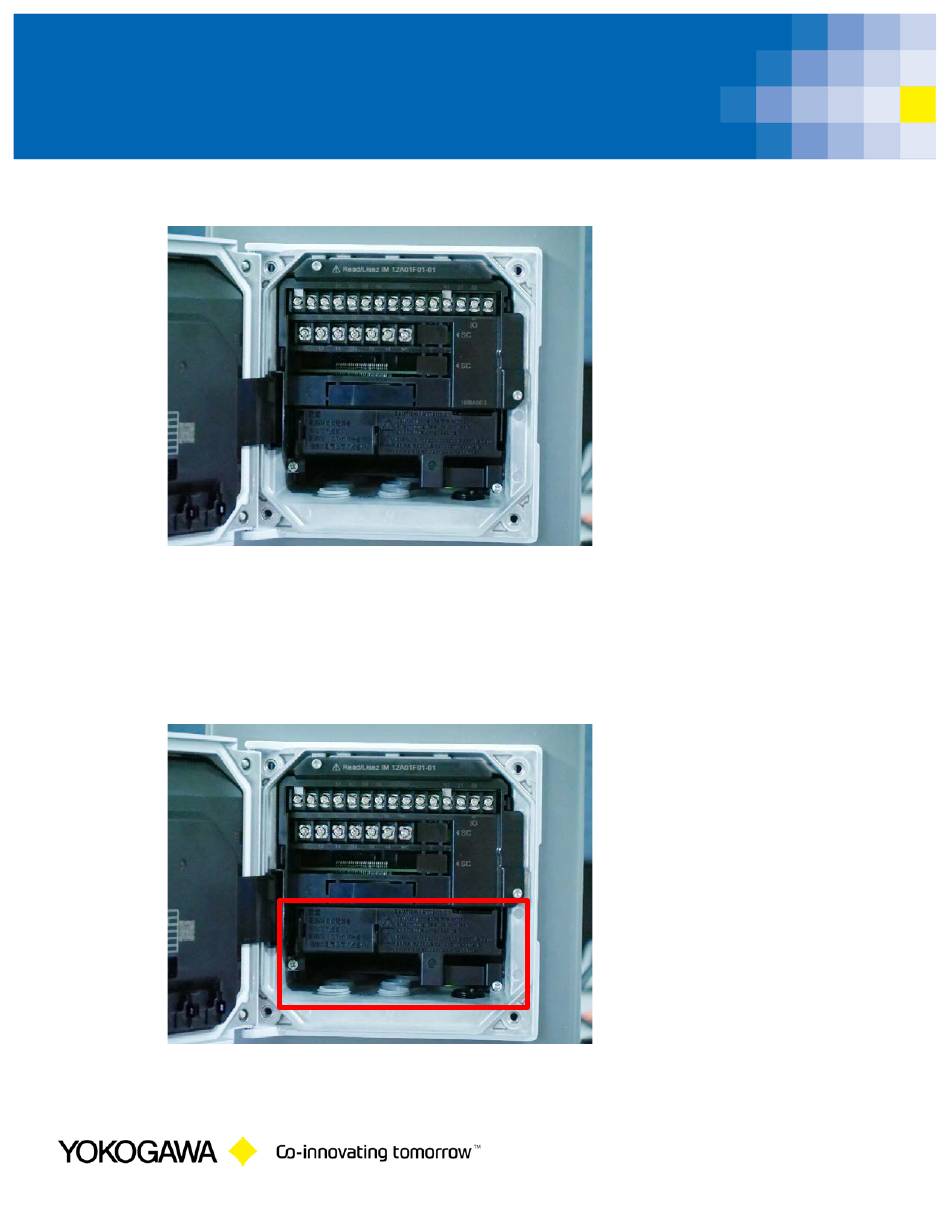

Unwire any sensor or OI connected to the upper rail. This will make it easier to
b.
access the relays.
Remove the cover over the relays, but unscrewing the 2 phillips head screws ( they
c.
are captive), and pulling straight out.
TNA2001

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLXA402 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YOKOGAWA FLXA402

Summary of Contents for YOKOGAWA FLXA402

  • Page 1 Quick Start-up Guide How to wire and set up the relays on the FLXA402 1. Wiring Relays Cut any power to the analyzer Unwire any sensor or OI connected to the upper rail. This will make it easier to access the relays.
  • Page 2 Quick Start-up Guide How to wire and set up the relays on the FLXA402 Wire the desired contacts. S1 is the left more set of terminals 31-33 and S4 is the right most set of terminals 71-73. Note that the center terminal of each set is the common terminal with the...
  • Page 3 Quick Start-up Guide How to wire and set up the relays on the FLXA402 NC terminal on the left and the NO terminal on the right. Below is the state of each relay during alarm, error, and power off. Replace relay cover Rewire sensors and OI 2.
  • Page 4 Quick Start-up Guide How to wire and set up the relays on the FLXA402 Press “Contact output settings (R)” TNA2001...
  • Page 5 Quick Start-up Guide How to wire and set up the relays on the FLXA402 Select the contact you wish to set up Select what you want to trigger the contact TNA2001...

  • Page 6: Operation

    Quick Start-up Guide How to wire and set up the relays on the FLXA402 Options for S1, S2, and S3 include Alarm, Hold, Wash, Error, USP, Simulate, and Off. S4 options include Alarm, Error, Simulate, and Fail safe. For a full description of each option, see Chapter 4.4 in the FLXA402...
  • Page 7 Quick Start-up Guide How to wire and set up the relays on the FLXA402 TNA2001...
  • Page 8 Quick Start-up Guide How to wire and set up the relays on the FLXA402 TNA2001...
  • Page 9 Quick Start-up Guide How to wire and set up the relays on the FLXA402 TNA2001...
  • Page 10 Quick Start-up Guide How to wire and set up the relays on the FLXA402 Be sure to press to store any changes before exiting the contact option page. For additional details on each option refer to section 4.4 in the FLXA404 operation...
