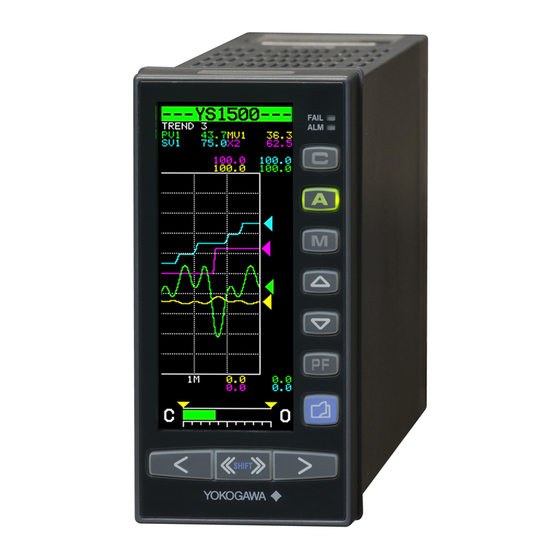

YOKOGAWA YS1000 Series User Manual

Manual setter for sv/mv setting
Hide thumbs Also See for YS1000 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

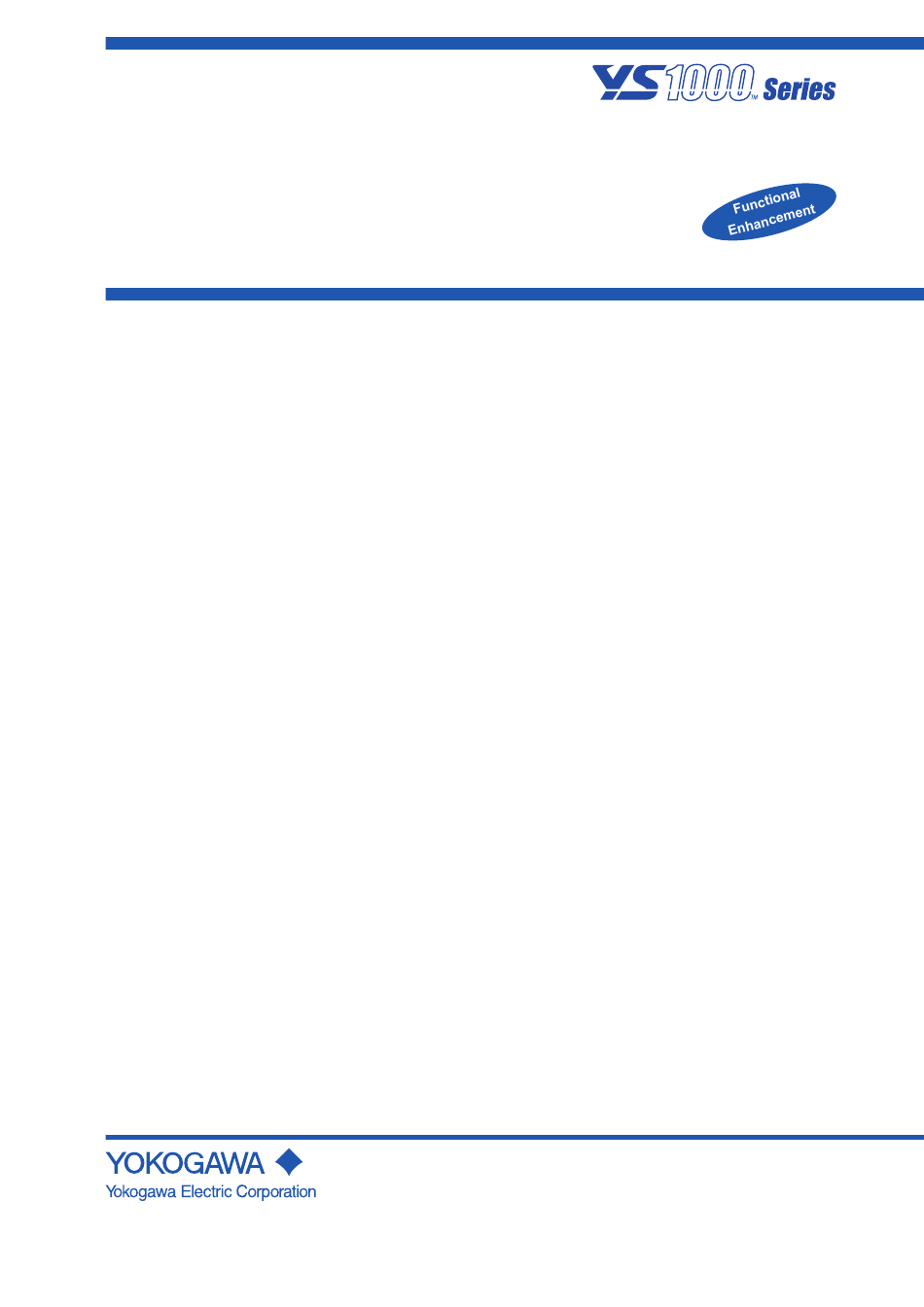

User's
Manual
YS1350 Manual Setter for SV Setting
YS1360 Manual Setter for MV Setting
User's Manual
IM 01B08E02-02EN
IM 01B08E02-02EN
4th Edition

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YS1000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for YOKOGAWA YS1000 Series

Summary of Contents for YOKOGAWA YS1000 Series

  • Page 1 User’s Manual YS1350 Manual Setter for SV Setting YS1360 Manual Setter for MV Setting User’s Manual IM 01B08E02-02EN IM 01B08E02-02EN 4th Edition...

  • Page 2: Introduction

    Introduction Thank you for purchasing the YS1000 series single-loop controller (hereinafter referred to as “YS1000”). This manual describes how to use YS1350 and YS1360 functions other than communication function. Please read through this user’s manual carefully before using the product.

  • Page 3: How To Use This Manual

    How to Use This Manual Usage First read through the Operation Guide to understand the basic operations and then read this manual. For the communication functions and replacements, see the respective manuals. This User’s Manual is organized into Chapters 1 to 6 as shown below: Chapter Title and Description Input/output and Auxiliary Function...

  • Page 4: Symbols Used In This Manual

    Symbols Used in This Manual This symbol is used on the instrument. It indicates the possibility of injury to the user or damage to the instrument, and signifies that the user must refer to the user’s manual for special instructions. The same symbol is used in the user’s manual on pages that the user needs to refer to, together with the term “WARNING”...
  • Page 5 Blank Page...

  • Page 6: Table Of Contents

    Contents Introduction ............................i How to Use This Manual ........................ii Symbols Used in This Manual ......................iii Chapter 1 Input/output and Auxiliary Function Function Block Diagram ....................1-1 1.1.1 YS1350...........................1-1 1.1.2 YS1360...........................1-1 Compensating or Computing Process Variables ............. 1-4 1.2.1 Input Filter (First-order Lag Operation) ..................1-4 1.2.2 Square Root Extraction (Low Cutoff Adjustable) ..............1-4...
  • Page 7 5.1.3 Inspecting Output Indication Accuracy ..................5-2 Recommended Part Replacement Period ............... 5-3 Packaging when Shipping the Product for Repair ............5-4 Chapter 6 Specifications General Specifications ....................6-1 Index Revision Information IM 01B08E02-02EN...

  • Page 8: Chapter 1 Input/Output And Auxiliary Function

    Chapter 1 Input/output and Auxiliary Function Function Block Diagram 1.1.1 YS1350 The following figure shows the function configuration. Cascade Action mode Backlight OFF Measurement input input switching input PSR1 SV key Square root extraction and low  cutoff adjustable  PLC1 Input filter PLG1...
  • Page 9 1.1 Function Block Diagram ■ Ramp Follow-up (YS1350/YS1360) The YS1350 manual setter for SV setting and YS1360 manual setter for MV setting switch the ramp characteristic bumplessly when switching from mode M to mode C. The switching rate is 40 seconds/full scale. For example, if 50% output in mode M is switched to 75% output in mode C as shown in the figure below, the output reaches the 75% level in 10 seconds following a gradient of being full scale in 40 seconds.
  • Page 10 Reference Destination Square root extraction 1.2.1 Square Root Extraction (Low Cutoff Adjustable) Digital input function 1.5 Setting Digital Input Function Other Function Main Functions Reference Destination Display function Chapter2, Display/Security Functions Communication function YS1000 Series Communication Interface User's Manual IM 01B08E02-02EN...

  • Page 11: Compensating Or Computing Process Variables

    Compensating or Computing Process Variables 1.2.1 Input Filter (First-order Lag Operation) Description First-order lag operation is performed on PV input. This function is used if there are significant variations in the display value such as the presence of noise. The greater the time constant, the stronger the filtering function.

  • Page 12: Changing The Valve Direction (Ys1360)

    Changing the Valve Direction (YS1360) Description The valve direction is used to decide "C-O" or "O-C" displayed in LCD. Setting Details Display Transition and Display Parameter Name Setting Range Title C–O: Manipulated output variable 0% = C Tuning Display > Engineering 100% = O VDIR1 Valve direction...

  • Page 13: Setting Alarm Output Hysteresis

    Setting Alarm Output Hysteresis Description Setting hysteresis (differential gap) to alarm action prevents chattering in digital output. High limit alarm output for PV Open Closed High limit alarm setpoint for PV Alarm hysteresis (HYSn) Alarm hysteresis (HYSn) Low limit alarm setpoint for PV Open Closed Low limit alarm output for PV...

  • Page 14: Setting Digital Input Function

    Setting Digital Input Function Description Changing action of Operation mode by digital input. When using this in the analog cascade mode (CMOD1=CAS), the operation mode can be switched through digital input. Operation LOOP Display Operation DI1F DI1D Digital Operation Mode Display Control Status Mode Status Parameter...
  • Page 15 1.5 Setting Digital Input Function Setting Details Display Transition and Parameter Name Setting Range Display Title NONE: No function E-MAN: Switching to manual mode (status) TR-MAN: Switching to manual DI1F DI1 function selection mode TR-CAS: Switching to cascade mode TR-EVT.C: All event OFF Tuning Display >...

  • Page 16: Setting Digital Output Function

    Setting Digital Output Function Description There are the follwing three digital outputs. DO1: Hig limit alarm output, current output open status output or no function DO2: Low limit alarm output, current output open status output or no function DO4: C/M status output, current output open status output or no function Setting Details Display Transition and Parameter...

  • Page 17: Using The Event Function

    Using the Event Function 1.7.1 Displaying Messages (Event Display Function (Settable Only in YSS1000)) Description The event display function displays a message (in Japanese, English, or Chinese) on the Operation Display if an event such as an abnormality occurs, providing guidance for the operator.
  • Page 18 1.7 Using the Event Function Event flag The status register is the flag to indicate an event. An event is displayed if the status register changes from 0 to 1 or from 1 to 0. Process alarm such as a high limit alarm and operation mode can be registered as a flag. Simulation Display After downloading the event display data from YSS1000, the event can be displayed forcibly.

  • Page 19: Changing The Pv Bar Display Color In The Event Of A Process Alarm (Active Display Function)

    1.7 Using the Event Function 1.7.2 Changing the PV Bar Display Color in the Event of a Process Alarm (Active Display Function) Description The active color display function changes the colors of the PV bar on the LOOP Display to red to inform the operator of instrument abnormality. Active color display can be set on a loop basis and items can be selected from each loop’s process alarms (see the table below).

  • Page 20: Operator Notification Using Tag Number Display (Alternate Tag Number Color Display Function)

    1.7 Using the Event Function 1.7.3 Operator Notification Using Tag Number Display (Alternate Tag Number Color Display Function) Description In the event of an ALM lamp lighting, the alternate tag number color display function notifies the operator of instrument abnormality by alternating the color of the tag number background back and red.

  • Page 21: Setting The Display For When Measurement Input Is Not Wired

    Setting the Display for When Measurement Input Is Not Wired Description When measurement input 1 is not used, it is possible to prevent (unnecessary) alarms (warnings) from occurring. It is also not necessary to wire the input. When measurement input 1 input specification (PV1IN) is set to “-” PV1 displays SCL1 (scale 0%) regardless of the input (1 to 5 V) to the X1 terminal.

  • Page 22: Chapter 2 Display And Security Functions

    Chapter 2 Display and Security Functions Display Function 2.1.1 Setting Visible/Invisible Status of the Operation Display Description There are five types of Operation Displays. Displays you chose not to display can be made invisible. LOOP1 Display is always displayed even if you set "OFF" for all lines. Operation Display Name YS1350/YS1360 LOOP1 (LOOP 1 Display)
  • Page 23 2.1 Display Function Setting Details Parameter Name Setting Range Display Transition and Display Title LOOP1 LOOP 1 Display ON/OFF Tuning Display > MTR1 METER 1 Display ON/OFF OFF: Invisible Engineering Display > TRND1 TREND 1 Display ON/OFF ON: Visible [CONFIG1] TRND3 TREND 3 Display ON/OFF (Configuration Display 1)

  • Page 24: Setting Visible/Invisible Status Of Trend Display Data

    2.1 Display Function 2.1.2 Setting Visible/Invisible Status of TREND Display Data Description PV trend, SV trend, and MV trends displayed on TREND 1 Display can be set to be visible or invisible. It is possible to select the trends that are to be displayed, making only the data necessary to be monitored visible on the Operation Display.

  • Page 25: Changing The Time Span Of Trend Displays

    2.1 Display Function 2.1.3 Changing the Time Span of TREND Displays Description The time span of trends displayed on the TREND 1, and TREND 3 Displays can be set. Time span 0412E.ai Setting Details Parameter Name Setting Range Display Transition and Display Title 1M: 1 minute 5M: 5 minutes TRDT1...

  • Page 26: Setting Display Data On The Trend 3 Display

    2.1 Display Function 2.1.4 Setting Display Data on the TREND 3 Display Description Display data shown on the TREND 3 Display can be set arbitrarily. A maximum of four data items can be set. This enables the necessary data to be monitored on the Operation Display.

  • Page 27: Changing Scale Divisions On The Loop, Trend, And Dual Displays

    2.1 Display Function 2.1.5 Changing Scale Divisions on the LOOP, TREND, and DUAL Displays Description The provision of scale divisions is relevant to the LOOP, TREND, and DUAL Displays. For scale divisions on the METER Displays, see 2.1.6 Automatic Scale Divisions/Making Scale Values More Legible on the METER Displays Scale division The figure on the left...

  • Page 28: Automatic Scale Divisions/Making Scale Values More Legible On The Meter Display

    2.1 Display Function 2.1.6 Automatic Scale Divisions/Making Scale Values More Legible on the METER Display Description For scales on the METER Displays, scale divisions are automatically provided based on the values set to the scale between 0% and 100% values. The number of scale divisions is from a minimum of 11 divisions to a maximum of 20 divisions.

  • Page 29: Selecting The Operation Display To Be Displayed First At Power On

    2.1 Display Function 2.1.7 Selecting the Operation Display to be Displayed First at Power ON Description The Operation Display to be displayed first when the power is turned ON can be set. The figure below shows an example of displaying the TREND 1 Display first. TREND 1 Display LOOP 1 Display METER 1 Display...

  • Page 30: Turning The Lcd Backlight On/Off

    (communication register). Write “0” or “1” to the CFL flag through communication to (0) to turn the backlight ON or to (1) to turn it OFF. ► For backlight OFF function through communication: see YS1000 Series Communication Interface User’s Manual.

  • Page 31: Changing The Background And Loop Colors

    2.1 Display Function 2.1.9 Changing the Background and Loop Colors Description The background color of the Operation Display, and the color of the PV and MV bars of the LOOP Displays and the DUAL Display can be changed. Setting the Operation Display’s background color to black causes the color of the lettering to be white;...

  • Page 32: 2.1.10 Adjusting Lcd Brightness

    2.1 Display Function 2.1.10 Adjusting LCD Brightness Description The brightness of the LCD can be adjusted. The adjustment bar display shows brightness adjustment values in bar format to indicate the current value with respect to the settable range. Selected parameter (zoom in) Selected parameter Adjustment bar display Color bar displays...

  • Page 33: Security Function

    Security Function 2.2.1 Setting/Releasing Keylock Description Keys can be locked to prevent inadvertent operation on the Operation Display. C/M key SV key (YS1350) MV key (YS1360) 0419E.ai Setting Details Parameter Name Setting Range Display Transition and Display Title CAMLK Keylock for C/M mode change Tuning Display >...

  • Page 34: Inhibiting/Enabling Parameter Change

    2.2 Security Function 2.2.2 Inhibiting/Enabling Parameter Change Description Setpoints for the tuning parameters or engineering parameters can be locked to prevent them from being inadvertently changed. When they are locked, the parameter setting increase key [ ] and decrease key [ ]displays are erased from each setting display. The password for locking them is a 4-digit numeral, which is not set at factory shipment.
  • Page 35 2.2 Security Function Setting/Entry Display Operation Display > keys (to the Tuning Menu Display) > keys (to the SHIFT SHIFT Engineering Menu Display) > [PASSWORD] software key (Password Setting Display) Password setting Password enter/cancellation Password setting Password enter Software key function display Password enter Cursor movement software key Password setting software key...

  • Page 36: Chapter 3 Adjusting Direct Inputs (Temperature/Resistance/Frequency)

    Chapter 3 Adjusting Direct Inputs (Temperature/Resistance/Frequency) List of Direct Input Specifications and Basic Operations In the SC Setting Display, communication with the direct input cards, optional specifications, is made to set or adjust the input specifications. Examples of sensor type setting, burnout setting, input zero adjustment, and span adjustment procedures are described in sections 3.2 to 3.4.
  • Page 37 3.1 List of Direct Input Specifications and Basic Operations Note 1: PT=Pt100 (IPTS-68: JIS'89), JPT=JPt100 (JIS'89), PT100-90=Pt100 (ITS-90: JIS'97), PT50=Pt50 (JIS'81) Note 2: Measurable data is within the range stated in the standard specifications. Note 3: Burnout correction is the function of correcting an error caused by the burnout current produced if an external conductor resistance is large.
  • Page 38 3.1 List of Direct Input Specifications and Basic Operations (2) Press the [ENT] software key again. This writes the data to the SC card, causing the display to return to normal display. If any key other than the [ENT] software key is pressed, the communication data returns to normal display without being written to the SC.

  • Page 39: Setting Sensor Type

    Setting Sensor Type Description The sensor type can be set as for thermocouple and RTD cards. Setting Details Operation Display > keys (to the Tuning Menu Display) > keys (to SHIFT SHIFT the Engineering Menu Display) > [SC MAINT] software key (Input Specification Setting Display) Engineering Display Setting Procedure...

  • Page 40: Setting Burnout

    Setting Burnout Description A burnout can be set as for mV input, thermocouple, RTD, and potentiometer input cards. Setting Details Operation Display > keys (to the Tuning Menu Display) > keys (to SHIFT SHIFT the Engineering Menu Display) > [SC MAINT] software key (Input Specification Setting Display) Engineering Display Setting Procedure...

  • Page 41: Making Zero And Span Adjustments Of Input

    Making Zero and Span Adjustments of Input Description Zero and span adjustments of inputs can be set as for mV input, thermocouple, and RTD cards. Setting Details Operation Display > keys (to the Tuning Menu Display) > keys (to SHIFT SHIFT the Engineering Menu Display) >...

  • Page 42: Chapter 4 Processing During Power Failures

    Chapter 4 Processing during Power Failures Processing during Power Failures Description YS1350/YS1360 enters a power failure status if a momentary power interruption of about 20 ms occurs in the case of 100 V AC supply voltage, or if that of 1 ms or more occurs in the case of 24 V DC.
  • Page 43 4.1 Processing during Power Failures Power Failure Duration and Operation in Each Start Mode Start mode Continuous HOT start HOT start mode M-COLD Continuous HOT start M-COLD start mode C-COLD C-COLD start Continuous HOT start mode COLD Continuous HOT start COLD start mode ▲...

  • Page 44: Chapter 5 Maintenance

    For products with optional code /FM or /CSA: (1) Devices must be maintained by professionally trained personnel or ask YOKOGAWA's sales office or sales representative. (2) In case of option code /FM, install devices according to NEC (National Electrical Code: ANSI/NFPA-70).

  • Page 45: Inspecting Output Indication Accuracy

    5.1 Inspecting Indication Accuracy 5.1.3 Inspecting Output Indication Accuracy Follow the procedure below to specifically check output indication accuracy. (1) Connect the digital multimeter to the terminals in the current mode if the analog output terminals are current outputs, or in the voltage mode if they are voltage outputs. (2) Set the operation mode to manual control.

  • Page 46: Recommended Part Replacement Period

    LCD Display Assembly About 8 years WARNING Part replacement should be carried out by a YOKOGAWA engineer or an engineer certified by YOKOGAWA, as safety standard inspection is required. Contact YOKOGAWA's sales office or sales representative when replacing the parts.

  • Page 47: Packaging When Shipping The Product For Repair

    Packaging when Shipping the Product for Repair Should the instrument break down and need to be shipped to our sales representative for repair, handle it as noted below: WARNING Prior to shipping the instrument, put it into an antistatic bag and repackage it using the original internal packaging materials and packaging container.

  • Page 48: Chapter 6 Specifications

    Chapter 6 Specifications General Specifications WARNING This instrument is for Measurement Category O (other). Do not use it for measurements in locations falling under Measurement Categories II, III, and IV. Internal Wiring Entrance Cable Outlet Measurement Description Remarks Category For measurements performed on circuits not (other) directly connected to MAINS.
  • Page 49 6.1 General Specifications Digital inputs Item YS1350 YS1360 Digital input 2 points Input Signal Closed Open For no-voltage contact (*1) (*2) Resistance: 200 Ω or less Resistance: 100 kΩ or more HIGH For voltage contact (*2) Input voltage: −0.5 to 1 V DC Input voltage: 4.5 to 30 V DC Input contact rating: 5 V DC, 20 mA or more Minimum pulse width: 120 ms...
  • Page 50 Ethernet Item Communication RS-485 Communication Communication Communication (Used for YSS1000) Complies with Electrical Complies with EIA Yokogawa’s proprietary Complies with RS-232C IEEE 802.3 Specifications RS-485 10BASE-T/100BASE-TX Rear panel screw Dedicated front panel terminals Back panel screw terminal Back panel RJ45...
  • Page 51 6.1 General Specifications Operating Conditions  Normal operating conditions, transport and storage conditions Item Normal Operation Transport and Storage Ambient 0 to 50°C −20 to 60°C temperature 5 to 90% RH 5 to 95% RH Ambient humidity (No condensation) (No condensation) 80 to 138 V AC (100 V AC and 24 V AC Power Supply common power supply)
  • Page 52 6.1 General Specifications Reference Performance Item Specifications Input and output conversion accuracy rating 1 to 5 V input signal ±0.1% of span Direct input ±0.5% or ±(2 × |direct input card’s accuracy| + 0.1%) Analog voltage output ±0.1% of span Analog current output ±0.2% of span Allowable input voltage/current...
  • Page 53 6.1 General Specifications Direct Input Specifications Item mV Input Thermocouple Input Optional code /A01 /A02 JIS, ANSI standards Thermocouple types K, T, J, E, B, R, DC potential difference: −50 to Input signal and S +150 mV IEC and ANSI standards Type N 10 to 63 mV (thermoelectric power Measuring range span...
  • Page 54 6.1 General Specifications 2-wire Transmitter Input Item Isolator (Isolated), 2-wire Transmitter Input (Non-isolated) Optional code /A05 /A06, /A07 4 to 20 mA DC signal from 2-wire Input signal 1 to 5 V DC transmitter (Power is supplied to a transmitter.) Input resistance 1 MΩ...
  • Page 55 6.1 General Specifications Structure, Mounting, (Main Unit of Standard Type) Item Specifications Front panel drip and dust proof structure (compliant with IP54). Structure Not appicable for side-by-side mounting instrumentation, and replacement types. Mounting type Indoor panel mounting Panel mounting device Mounting brackets to be used (at the top and bottom)) Panel cutout ×...
  • Page 56 KC marking: Electromagnetic wave interference prevention standard, electromagnetic wave protection standard compliance. The suffix codes -x0x, -x1x, -x2x -x3x, and -x4x for YS1000 series and YSS1000 comply with KC marking. EMC Regulatory Arrangement in Australia and New Zealand...
  • Page 57 Hazardous (Classified) Non-hazardous (Classified) Location Location Location Class I, Division 2, Class I, Division 2, Groups A, B, C, D Groups A, B, C, D Control YS1000 Series Associated Equipment Single-loop Apparatus (Note 1) Controller (Note 3) (Note 4) (Note 5) 0601E.ai...
  • Page 58 6.1 General Specifications Notes: Control equipment connected to the YS1000 series single-loop controller must not use or generate more than 250 Vrms or VDC. In case of option code /FM, install devices according to NEC (National Electrical Code: ANSI/ NFPA-70). In case of option code /CSA, all wiring shall comply with Canadian Electrical Code Part I and local electrical codes.
