Installation Instructions & Homeowner's Manual
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE,PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electric switch
• Do not use any phone in your building.
• Immediately call your gas supplier from
your neighbours phone. Follow the gas
suppliers instructions.
• If you cannot reach your gas supplier call the
fire department.
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER

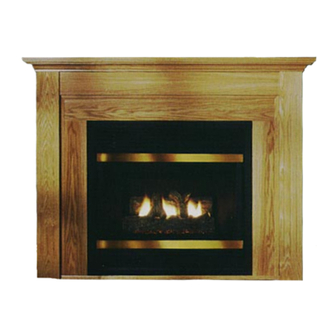

The Vermont Castings
Majestic Products Company
410 Admiral Blvd., Mississauga
Ontario, Canada L5T 2N1
www.majesticproducts.com / www.vermontcastings.com
- 1 -
BHDT36
FOR YOUR SAFETY
DO NOT STORE
OR USE GASOLINE OR OTHER
FLAMMABLE VAPOURS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE.
• Installation and service must be performed
by a qualified installer, service agency or
your gas supplier.
Direct Vent
Top Vent
Model
10001827
11/01 Rev.1
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Vermont Castings BHDT36
Summary of Contents for Vermont Castings BHDT36
-
Page 1: For Your Safety
• Installation and service must be performed by a qualified installer, service agency or your gas supplier. The Vermont Castings Majestic Products Company 410 Admiral Blvd., Mississauga Ontario, Canada L5T 2N1 - 1 - Direct Vent Top Vent Model BHDT36 10001827 11/01 Rev.1... -
Page 2: Table Of Contents
TABLE OF CONTENTS PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE. Thank you and congratulations on your purchase. IMPORTANT: R ead all instructions and warnings carefully before starting installation. instructions may result in a possible fire hazard and will void the warranty. Installation Instructions ... -
Page 3: Important
INSTALLATION AND OPERATING INSTRUCTIONS This gas appliance should be installed by a qualified installer in accordance with local building codes and with current CAN / CGA-B149 (. 1 or .2) Installation codes for Gas Burning Appliances and Equipment. or for U.S.A Installations follow local codes and/ or the current National Fuel Gas Code. -
Page 4: Fireplace Dimensions
FIREPLACE DIMENSIONS ROW 36 Framing Dimensions Appliance Dimensions BHDT36 36" 914mm 1/4" 870mm 21" 533mm 33" 838mm 24" 610mm 16" 406mm 1/4" 946mm 1/8" 181mm 3/4" 171mm 10" 254mm 1/2" 343mm 3/4" 1010mm 1/4" 1403mm 1/8" 714mm 1/2" 419mm 1/2"... -
Page 5: Mantels
MANTELS Depending on the width of the mantel it may be installed higher or lower from the top of the louvre opening. See drawing and chart below for proper installation height of your combustible mantel piece. Non-combustible mantels may be installed at any height above the appliance opening. When using paint or lacquer to finish the mantel, such paint or lacquer must be heat resistant to prevent discolouration. -
Page 6: Hearth
GAS SPECIFICATIONS MODEL FUEL GAS CONTROL BHDT36 RN Natural Gas Millivolt Hi/Lo BHDT36 RP Propane Gas Millivolt Hi/Lo The installation of your Majestic Fireplace... -
Page 7: Gas Line Installation
GAS LINE INSTALLATION When purging gas line the front glass must be removed. The gas pipeline can be brought in through the right side, left side of the appliance as well as the bottom. Knockouts are provided at convenient locations to allow for the gas pipe installation and testing of any gas connection. -
Page 8: General Venting Information
Your fireplace is approved to be vented either through the side wall, or vertical through the roof. Only Majestic venting components specifically approved and labelled for this fireplace may be used. Minimum clearances between vent pipes and combustible materials is one (1") inch (25 mm), except where stated otherwise. -
Page 9: Termination Clearances
Termination Clearances Termination clearances for buildings with combustible and noncombustible exteriors. Inside Corner Combustible 6"(152mm) Noncombustible 2"(50mm) Balcony - with no side wall Combustible& Non-Combustible 12"(305mm) GENERAL INFORMATION ON ASSEMBLING THE VENT PIPES WITH CRIMPED ENDS Before joining elbows and pipes apply a bead of high temperature sealant to crimped end of elbow or pipe. (Fig.12) Join pipes and secure joints with three (3) sheetmetal screws. -
Page 10: Assembling Vent Pipes With Crimped Ends
GENERAL INFORMATION ON ASSEMBLING THE VENT PIPES WITH CRIMPED ENDS Before joining elbows and pipes apply a bead of high temperature sealant to crimped end of 4" and 7" elbow or pipe. (Fig. 12) Join pipes and secure joints with three (3) sheetmetal screws. -
Page 11: How To Use The Vertical Sidewall Venting Graph
If a 90 degree elbow is used in the horizon- tal vent run (level height maintained) the maximum horizontal vent length is reduced by 36 inches. Fig. 15. This does not apply if the 90 degree elbows are used to increase or redirect a vertical rise. -
Page 12: Vertical Sidewall Installation
VERTICAL SIDEWALL INSTALLATION STEP 1 Locate vent opening on the wall. It may be necessary to first position the fireplace and measure to obtain hole location. Depending on whether the wall is combustible or non- combustible, cut opening to size. (For combustible walls first frame in opening). - Page 13 STEP 5 (Fig. 23) Use the appropriate length of pipe section – telescopic or fixed – and install. The 20" (508mm) section of pipe which goes through the wall is packaged with the 7DVSK kit, and can be cut to suit if necessary. Sealing vent pipe and firestop gaps with hi- temperature sealant will restrict cold air being drawn in around fireplace.
-
Page 14: Below Grade Installations
BELOW GRADE INSTALLATIONS When it is not possible to meet the required vent terminal clearances of 12 inches (305mm) above grade level a model #7DVSKS vent kit is required. It allows installation depth of down to 7 inches (178mm) below grade level. The 7 inches is measured from the centre of the horizontal vent pipe as it penetrates through the wall. -
Page 15: Vertical Through The Roof Installation
MAX. 8 FEET 2438mm 45° 40 FEET (12.2m) MAX. 8 FEET 2438mm 45° TYPICAL OFFSET INSTALLATION Fig. 28 VENT TERMINATION ROOF 2' Min. ATTIC INSULATION JOISTS 40 FEET ATTIC INSULATION (12.2m) SHIELD TYPICAL STRAIGHT-UP INSTALLATION Clearance above a roof shall extend a minimum of 24"... -
Page 16: Crimped End Venting Components
CRIMPED ENDS VENTING COMPONENTS Starter Kit -Model 7DVSK - Sidewall Venting Starter Kit - Model 7DVSKV - Vertical Venting for 7DVSKV-A order 1/12 to 6/12 roof pitch for 7DVSKV-B order 7/12 to 12/12 roof pitch for 7DVSKV-F order flat roof Starter Kit - Model 7DVSKS -Snorkel Kit for Below Grade Installation 45º... -
Page 17: Assembling Twist Lock Vent Pipes
GENERAL INFORMATION ON ASSEMBLING When using CFM Majestic twist lock pipe it is not neces- sary to use silicone to seal the twist lock joints. The only areas that need silicone are the collars on the fireplace, the telescoping pipe (if used) and the horizontal termina- tion connection (when necessary). - Page 18 The maximum number of 90 degree elbows per side wall installation is three (3). The maximum number of 45 degree elbows permitted per side wall installation is two (2). These elbows can be installed in either the vertical or horizontal run. The maximum horizontal vent length is 36"...
-
Page 19: How To Use The Vertical Sidewall Venting Graph
HOW TO USE THE VENT GRAPH 1. Determine the height of the centre of the horizontal vent pipe exiting through the outer wall. Using this dimension on the Sidewall Vent Graph (Fig. 39), locate the point it intersects with the slanted graph line. - Page 20 Maximum Length 12" (294mm) SCREWS(2) SCREWS(2) ADJUSTABLE ZERO CLEARANCE SLEEVE FIRESTOP STEP 3 (Fig. 43) Apply a bead of high temperature sealant to the inner and outer flue collars of the fireplace and using appropriate venting component(s) attach to fireplace with three (3) screws.
-
Page 21: Below Grade Installations
STEP 7 Support the horizontal pipes every 36 inches (914mm) with metal pipe straps. Make sure that the horizontal vent pipe is installed on a level horizontal plane. STEP 8 Recheck the fireplace to make sure that it is levelled, properly positioned, and nailed or screwed to the floor. -
Page 22: Vertical Through The Roof Applications
FOUNDATION RECESS WATERTIGHT SEAL AROUND PIPE SHEET METAL SCREWS If the foundation is recessed, use recess brackets (not supplied) for securing lower portion of the snorkel. Fasten brackets to wall first and then secure to snorkel with self drilling #8 x 1/2 sheet metal screws. It will be necessary to extend vent pipes out as far protruding wall face (Fig. -
Page 23: Vertical Through The Roof Installation
VERTICAL THRU THE ROOF INSTALLATION 1. Locate your fireplace. 2. Plumb to centre of the (4") collar from ceiling above and mark position. 3. Cut opening equal to 9-3/8" x 9-3/8" (240 mm x 240 mm). 4. Proceed to plumb for additional openings through the roof. -
Page 24: Twist Lock Venting Components
TWIST LOCK VENTING COMPONENTS Starter Kit -Model 7TDVSK - Sidewall Venting Starter Kit - Model 7TDVSKV - Vertical Venting for 7TDVSKV-A order 1/12 to 6/12 roof pitch for 7TDVSKV-B order 7/12 to 12/12 roof pitch for 7TDVSKV-F order flat roof Starter Kit - Model 7TDVSKS -Snorkel Kit for Below Grade Installation 45º... -
Page 25: Operating Instructions
OPERATING INSTRUCTIONS GENERAL GLASS INFORMATION Only glass approved for use in Majestic products may be used for replacement. 1 . The use of subsitute glass will void all product warranties. 2. Care must be taken to avoid breakage of the glass. 3. -
Page 26: Installation Of Logs
INSTALLATION OF LOGS 1 . Remove front glass. (See "Glass Removal" Section) 2. Remove logs from the packaging. As with all plastics — these are not toys and should be kept away from children and infants. 3. Place rear log (BH2) on rear bracket (ensure log is seated properly, leveled and centered to the unit), so it will not move from side to side and it is firmly positioned on the bracket. -
Page 27: Flame Characteristics
FLAME CHARACTERISTICS It is important to periodically perform a visual check of the pilot and the burner flames. Compare them to the pictorials illustrated below (Fig. 61, 62 and 63). If any of the flames appear abnormal call a service person. 3/8"... -
Page 28: Lighting And Operating Instructions
LIGHTING AND OPERATING INSTRUCTIONS FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. This fireplace has a pilot which must be lit manually. When lighting the pilot follow these instructions exactly. -
Page 29: Troubleshooting Gas Control (Honeywell Millivolt Gas Valve)
TROUBLE SHOOTING THE GAS CONTROL SYSTEM HONEYWELL MILLIVOLT VALVE START • GAS SUPPLY ON PILOT LIGHTS WITH PIEZO IGNITOR PILOT STAYS LIT PILOT LIGHTS MAIN BURNER SYSTEM OK. CHECK • SUPPLY LINE HOOKED UP • SHUTOFF VALVE OPEN • LOCKOUT HAS ENGAGED. WAIT 60 SECONDS AND TRY AGAIN. -
Page 30: Troubleshooting Gas Control (Sit 820 Millivolt Gas Valve)
TROUBLE SHOOTING THE GAS CONTROL SYSTEM GLASS DOOR TO BE REMOVED BEFORE SERVICE WORK START GAS SUPPLY ON LIGHT PILOT WITH PIEZO IGNITION PILOT STAYS ON MAIN BURNER ON SIT 820 NOVA MILLIVOLT VALVE CHECK • SHUTOFF VALVE OPEN • CONFIRM GAS HOOK-UP •... -
Page 31: Replacement Parts List
REPLACEMENT PARTS LIST ESCRIPTION Log Set Complete Log Front Log Rear Log Top Left Log Top Right Lava Rock (Package) Burner Tube Assembly Orifice Burner (Nat) Orifice Burner (Prop) Orifice Pilot SIT (Nat) Orifice Pilot SIT (Prop) Orifice Pilot PSE (Nat.) Orifice Pilot PSE IProp.) Pilot Assembly SIT (Nat) Pilot Assembly SIT(Prop) -
Page 32: Replacement Parts Pictorial
REPLACEMENT PARTS 7 a/b 19 a/b 4 a/b 20 a/b 8 a/b 5 a/b 6 a/b 10 15 #1 - COMPLETE LOG SET - 32 -... -
Page 33: Options
OPTIONAL FAN KIT - FK24 Fan Specifications: 120 Volt 60 HZ .75 Amp. This fan does not need regular maintenance, however periodic cleaning is required. Check the area under the control door and in front of the fan and wipe or vacuum at least once a month during the operating season. -
Page 34: Screen Kit
6. Hang Bay Window Frame assembly over existing glass frame. Do not remove existing glass frame 7. Re-install top louvre assembly. Remove all plastic from brass trims 8. Open the Bottom Bay Louvre door and screw two (2) self tapping screws (as per step 1 above) to the bottom of the unit where the hinges were 9.
