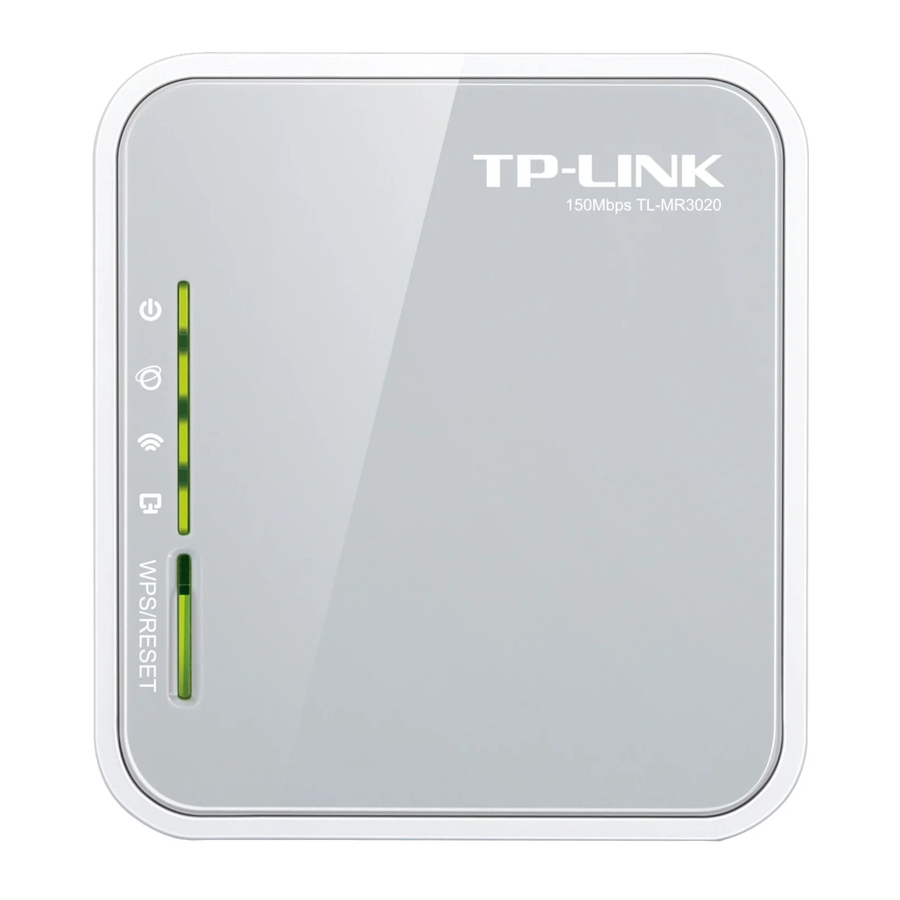

Configure the Client Mode on the TL-MR3020
The TL-MR3020 can be connected to another device via Ethernet cable and acts as a
wireless adaptor to send/receive the wireless signal from your wireless network.
Application:
For a laptop, PC, Network Video recorder(NVR), Smart TV, Media Player, or
game console with an Ethernet port. Use the TL-MR3020 to make your devices Wi-Fi
enabled, granting them access to your wireless network.
Application Example
Step 1
- Connect the LAN port of the TL-MR3020 to a PC or laptop and power up.
Step 2
- Change the IP address of the PC or laptop to 192.168.1.100 (or other IP address
other than 192.168.1.1) and subnet mask to 255.255.255.0
- NVR connection
Figure 1
Advertisement
Related Manuals for TP-Link TL-MR3020
Summary of Contents for TP-Link TL-MR3020
- Page 1 - NVR connection Figure 1 Step 1 - Connect the LAN port of the TL-MR3020 to a PC or laptop and power up. Step 2 - Change the IP address of the PC or laptop to 192.168.1.100 (or other IP address...
- Page 2 Step 3 - Log in to the web management page by typing 192.168.1.1 (default IP address) on a web browser. Select Quick Setup then click Next button to continue. Step 4 - Click Client and then click Next button to continue. Step 5 - Enter the SSID of the WiFi network or click Survey...
- Page 3 Step 6 - Click Connect to connect to the selected AP. Step 7 - Enter the password of the selected AP and click Next button to continue. Step 8 Reboot - Click button and wait until the progress bar reaches 100%. The setup is completed.
