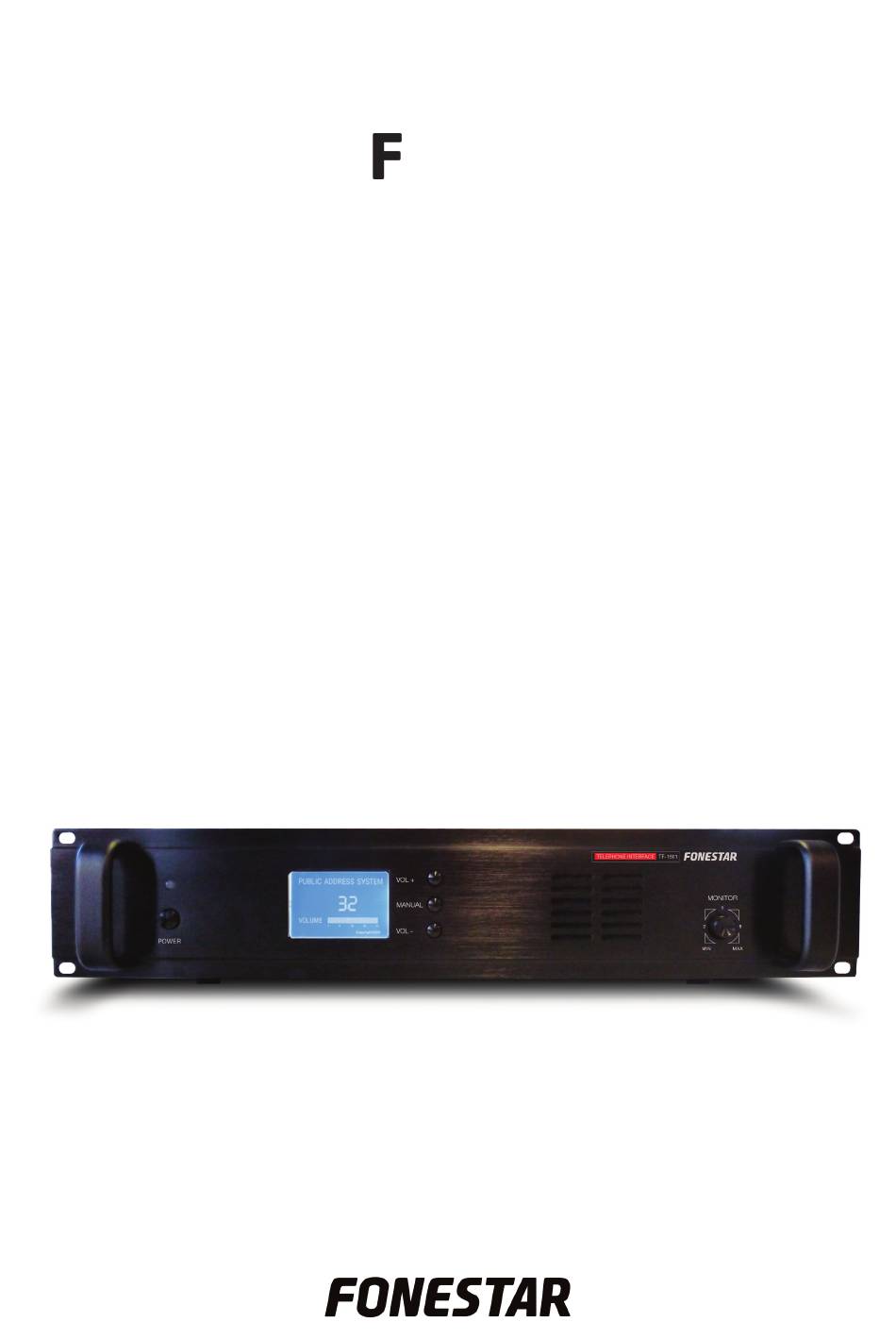

- Page 1 T -1601 TELEPHONE SWITCHBOARD ADAPTER FOR PA SYSTEM INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.
- Page 4 DESCRIPTION - Telephone switchboard adapter for PA systems. - Automatic or manual pick up and line closure. - Contact closure output during call. - Loudspeaker monitor incorporated. - Contact closure switch on. CONTROLS AND FUNCTIONS FRONT PANEL 1.- LED device power indicator. 2.- POWER: device on/off switch.
- Page 5 11.- RING: microswitches which allow the number of call tones to be selected before the device is picked up automatically Pick up Pick up Pick up Pick up automatically automatically automatically automatically after first tone after second tone after third tone after fourth tone Note: if the microswitches are in any other position than these four, the device will not allow manual or automatic pick up...
- Page 6 TECHNICAL SPECIFICATIONS TF-1601 CHARACTERISTICS Telephone switchboard adapter for PA systems. Automatic or manual pick up and hang up. Contact closure output during call. Monitor loudspeaker incorporated. Contact closure switch on. INPUTS 1 telephone extension, RJ-11 OUTPUTS 1 aux, 2 x RCA...
- Page 7 This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
