  • Page 1                                     EW‐7722UnD        Quick Installation Guide    11‐2012 / v1.1 ...
  • Page 2     COPYRIGHT    Copyright © Edimax Technology Co., Ltd. all rights reserved. No part of this publication  may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated  into any language or computer language, in any form or by any means, electronic,  mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written  permission from Edimax Technology Co., Ltd.    Edimax Technology Co., Ltd. makes no representations or warranties, either expressed or  implied, with respect to the contents hereof and specifically disclaims any warranties,  merchantability, or fitness for any particular purpose. Any software described in this  manual is sold or licensed as is. Should the programs prove defective following their  purchase, the buyer (and not this company, its distributor, or its dealer) assumes the  entire cost of all necessary servicing, repair, and any incidental or consequential damages  resulting from any defect in the software. Edimax Technology Co., Ltd. reserves the right  to revise this publication and to make changes from time to time in the contents hereof  without the obligation to notify any person of such revision or changes.    The product you have purchased and the setup screen may appear slightly different from  those shown in this QIG. For more information about this product, please refer to the  user manual on the CD‐ROM. The software and specifications are subject to change  without notice. Please visit our website www.edimax.com for updates. All brand and  product names mentioned in this manual are trademarks and/or registered trademarks  of their respective holders.    1 ...
  • Page 3: Package Contents

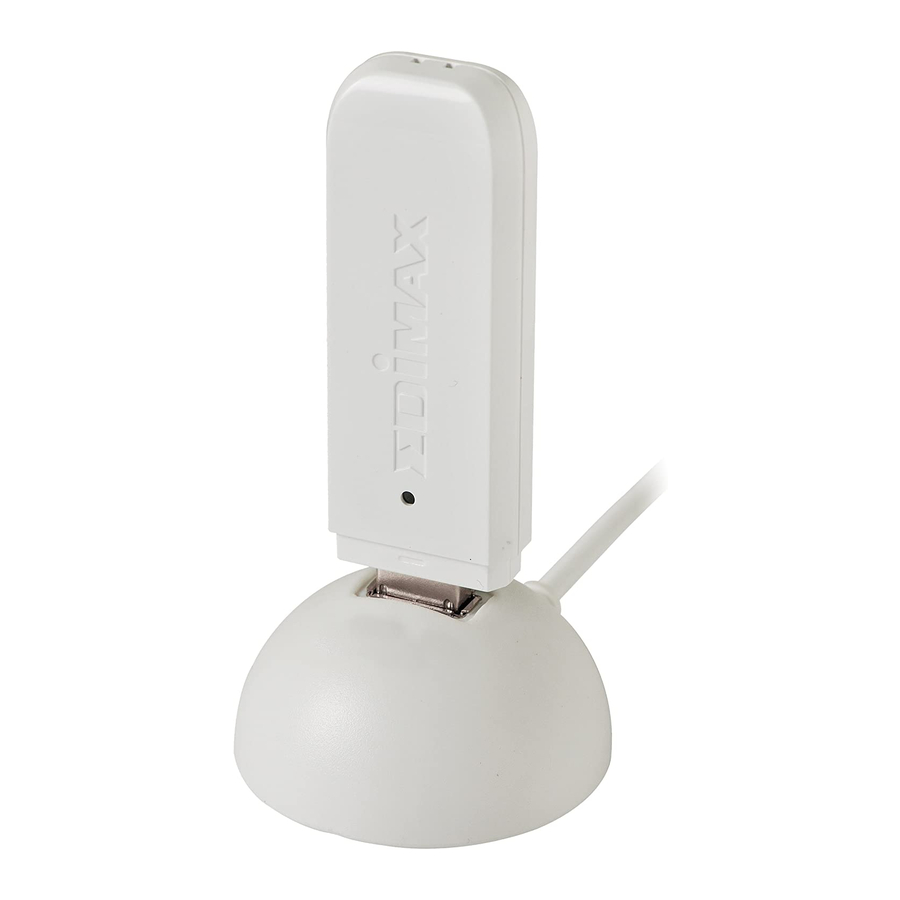

      Package Contents                USB Cradle  Wireless USB Adapter                  CD‐ROM      Installation      Switch on your computer and insert the USB  adapter into an empty USB 2.0 port of your  computer.            If a Hardware Wizard/Driver    Installation window opens such as    in the example below, please click    “Cancel” or “Close”.   ...
  • Page 4     Insert the included CD‐ROM into the    CD drive of your computer. The    Setup Wizard supports Windows XP,    Vista, 7 & 8. When the wizard begins,    please click the image of the wireless    adapter.        Note: If the setup wizard doesn’t run    automatically, please browse your CD    drive and double click the “Autorun.exe”    file in the “Autorun” folder to start the    wizard.      Please click “Install Driver” to install    the drivers for your EW‐7722UnD.                       ...
  • Page 5     You will see a welcome screen as    pictured (right) – please click “Next”    to continue.                    Please click “Install” to begin the    installation.                  Please wait while the wizard installs the drivers for your EW‐7722UnD.        4 ...
  • Page 6     When the wizard is complete as      shown in the screenshot (right),    please click “Finish” to exit the    installation wizard.                    You will return to the CD contents    screen, please select “Exit” to finish    the setup process.        Note: The multi‐language QIG is also    included on the CD, you can open it from    here if you wish. After you have    finished, click “Exit”.            Your EW‐7722UnD is now installed and fully functional. You can use your   ...
  • Page 7         .  Search for the SSID of your Wi‐Fi    network, click it and then click    “Connect”. If you set a password    for your network, you will then be    prompted to enter it.                    . After correctly entering your    password, you will be successfully    connected to your Wi‐Fi network.                   Alternatively,  if your router/access point supports WPS, you can use the WPS    button (see next section).
  • Page 8: Wps Setup

      WPS Setup      If your wireless router/access point supports WPS (Wi‐Fi Protected Setup) then you  can use this method to connect to a Wi‐Fi network.        Press the WPS button (often the WPS/Reset    button) on your router/access point to activate      WPS.   Note: Please check the instructions for your    wireless router/access point for how long you    need to hold down its WPS button to activate    WPS.        Within two minutes, press and hold the WPS    WPS Button button for 5 seconds on the EW‐7722UnD to      activate its WPS.       The devices will establish a connection.       Disabling Network Adapters ...
  • Page 9     For Windows Vista:  Go to Start > Control Panel. Click View network status and tasks > View Status and  click Disable.              8 ...
  • Page 10: Uninstall Drivers

      Uninstall Drivers    To uninstall the drivers for your USB adapter, go to Start > Programs > Edimax  Wireless LAN > Uninstall and follow the on screen instructions. An uninstall wizard  will guide you through the process.        9 ...
  • Page 11 Federal Communication Commission Interference Statement    This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part  15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a  residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not  installed and used in accordance with the instructions, may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation. If this equipment does  cause harmful interference to radio or television reception, which can be determined by turning the equipment  off and on, the user is encouraged to try to correct the interference by one or more of the following measures:    1. Reorient or relocate the receiving antenna.  2. Increase the separation between the equipment and receiver.  3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  4. Consult the dealer or an experienced radio technician for help.    FCC Caution  This device and its antenna must not be co‐located or operating in conjunction with any other antenna or  transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two  conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference  received, including interference that may cause undesired operation. Any changes or modifications not expressly  approved by the party responsible for compliance could void the authority to operate equipment.    Federal Communications Commission (FCC) Radiation Exposure Statement  This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid  the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be  less than 2.5cm (1 inch) during normal operation.    Federal Communications Commission (FCC) RF Exposure Requirements  This EUT is compliance with SAR for general population/uncontrolled exposure limits in ANSI/IEEE  C95.1‐1999 and had been tested in accordance with the measurement methods and procedures specified in  OET Bulletin 65 Supplement C. The equipment version marketed in US is restricted to usage of the channels  1‐11 only. This equipment is restricted to indoor use when operated in the 5.15 to 5.25 GHz frequency range.    R&TTE Compliance Statement  This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND  THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal equipment and the mutual  recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC  (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.    Safety  This equipment is designed with the utmost care for the safety of those who install and use it. However, special ...
  • Page 12 EU Declaration of Conformity    English:  This equipment is in compliance with the essential requirements and other relevant  provisions of Directive 1999/5/EC, 2009/125/EC.  Français:   Cet équipement est conforme aux exigences essentielles et autres dispositions de la  directive 1999/5/CE, 2009/125/CE  Čeština:   Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními  směrnic 1999/5/ES, 2009/125/ES.  Polski:   Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami  określonymi Dyrektywą UE 1999/5/EC, 2009/125/EC  Română:     Acest echipament este în conformitate cu cerințele esențiale şi alte prevederi relevante ale  Directivei 1999/5/CE, 2009/125/CE.  Русский:   Это оборудование соответствует основным требованиям и положениям Директивы  1999/5/EC, 2009/125/EC.  Magyar:   Ez a berendezés megfelel az alapvető követelményeknek és más vonatkozó irányelveknek  (1999/5/EK, 2009/125/EC)  Türkçe:     Bu cihaz 1999/5/EC, 2009/125/EC direktifleri zorunlu istekler ve diğer hükümlerle ile  uyumludur.  Українська:   Обладнання відповідає вимогам і умовам директиви 1999/5/EC, 2009/125/EC.  Slovenčina:   Toto zariadenie spĺňa základné požiadavky a ďalšie príslušné ustanovenia smerníc  1999/5/ES, 2009/125/ES. ...
  • Page 13     Declaration of Conformity    We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the  equipment described below complies with the requirements of the European R&TTE  directives.    Equipment:  Dual Band 300Mbps Wireless 802.11a/b/g/n USB Adapter Model No.:  EW‐7722UnD    The following European standards for essential requirements have been followed:  Directives 1999/5/EC Spectrum ETSI EN 300 328 V1.7.1 (2006-10); EN 301 893 V1.5.1 (2008-12) EN 301 489-1 V1.8.1 (2008-04); EN 301 489-17 V2.1.1 (2009-05); Safety (LVD) IEC 60950-1:2005 (2 Edition);...
  • Page 14     13 ...
