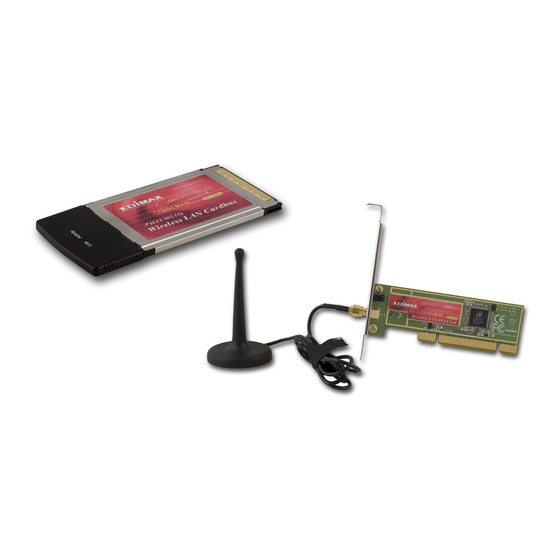

Summary of Contents for Edimax EW-7108PCg
- Page 2 Multi-Languages QIG in Driver CD ================================================ Český: Českého průvodce rychlou instalací naleznete na přiloženém CD s ovladači Deutsch: Finden Sie bitte das deutsche QIG beiliegend in der Treiber CD Español: Incluido en el CD el QIG en Español Français: Veuillez trouver l’français QIG ci-joint dans le CD Italiano: Incluso nel CD il QIG in Italiano Magyar: A magyar telepítési útmutató...
-
Page 3: Table Of Contents
1. Product Information ...3 2. Package Contents ...4 3. Network Card Installation ...6 3.1 Hardware Installation ...6 3.2 Software Installation ...9 4. Connect to Wireless Access Point ...12 Index... -
Page 4: Product Information
1. Product Information Main Features Complies with 802.11n, 802.11g and 802.11b standards. Provides further coverage, less dead spot and high throughput (11n Adapter Up to 300Mbps with MIMO technology). Supports WMM, WMM-PS (IEEE 802.11e QoS standard). Supports 64/128-bit WEP, WPA (TKIP with IEEE 802.1x),WPA2 (AES with IEEE 802.1x) for high security level. -
Page 5: Package Contents
2. Package Contents Before you starting to use this wireless network card, please check if there's anything missing in the package, and contact your dealer of purchase to claim for missing items: EW-7318Ug / EW-7718Un / EW-7717Un □ USB wireless adapter with Protection Cap (1 pcs) □... - Page 6 □ Antenna (2 pcs) . □ Quick installation guide (1 pcs) □ User Guides / EZMAX Setup Wizard & driver CDROM (1 pcs) EW-7108PCg / EW-7708Pn / EW-7738Pn □ Wireless network cardbus (1 pcs) □ Quick installation guide (1 pcs) □...
-
Page 7: Network Card Installation
3. Network Card Installation Please follow the following instructions to install your new USB wireless network card: 3.1 Hardware Installation EW-7318USg/ EW-7318Ug / EW-7718Un / EW-7717Un 1. Fasten the antennas to the antenna connectors on the network card by clockwise direction. (EW-7318USg only) 2. - Page 8 EW-7128g / EW-7728In / EW-7727In / EW-7748In 1. SWITCH THE COMPUTER OFF, remove the cover and insert the wireless network card into an empty PCI slot (EW-7128g/EW-7728In/ EW-7727In) or PCI Express slot (EW-7748In) of your computer. 2. Fasten the antennas to the antenna connectors on the network card by clockwise direction.
- Page 9 EW-7108PCg/ EW-7708Pn / EW-7738Pn 1. Please insert the wireless network card into an empty PCMCIA slot (EW-7108PCg/EW-7708Pn) or ExpressCard slot (EW-7738Pn) of your computer. You can insert the card when the computer is power off or on Don’t use force to insert the card into PCMCIA or ExpressCard slot;...
-
Page 10: Software Installation
3.2 Software Installation This wizard can be run in Windows 2000/XP/Vista. The following procedures are operated in Windows XP. You can install the Wireless Adapter by EZMAX Setup Wizard in the CD-ROM including in the package. The wizard is an easy and quick configuration tool for internet connection with series process. - Page 11 3.2.2 You can choose the configuration tool used to configure the wireless network card here. It’s recommended to select ‘Edimax Configuration Tool’, which provides fully access to all function of this wireless network card. If you prefer to use the wireless configuration tool provided by Windows XP or Vista, please select ‘Microsoft Zero...
- Page 12 3.2.3 Please select ‘Optimize for WiFi mode’ for wireless compatibility, then click ‘Next’. If you want to enhance wireless performance, please select ‘Optimize for performance mode’. However, wireless compatibility is not guaranteed in this mode. Please refer to user manual for details of performance mode.
-
Page 13: Connect To Wireless Access Point
4. Connect to Wireless Access Point Using Configuration Utility to Connect to Wireless Access Point After installation is complete, wireless configuration utility will be shown as an icon at the lower-right corner of your windows desktop. Please click the icon by right mouse key, and select ‘Launch Config Utilities’... - Page 14 If the wireless access point uses encryption, you have to input WEP passphrase or WPA preshared key. Please ask the owner of the wireless access point you want to connect, and input the correct passphrase / preshared key here, then click ‘OK’. If the value you inputted here is wrong, you will not be able to connect to wireless access point.
- Page 15 For advanced settings and other features of this wireless network card, please refer to user manual enclosed in supplied CD-ROM.
