Unit Dimensions; Type Plate - Chiller BOX Vari Installation, Operation And Maintenance Manual

N02118905 Rev. A
3.2
The unit comes in two sizes, Box Mono and Box Double.
Note! The unit dimensions are given as reference. Chiller Oy reserves the right to
make changes to them. Check the actual dimensions from the order
documentation.

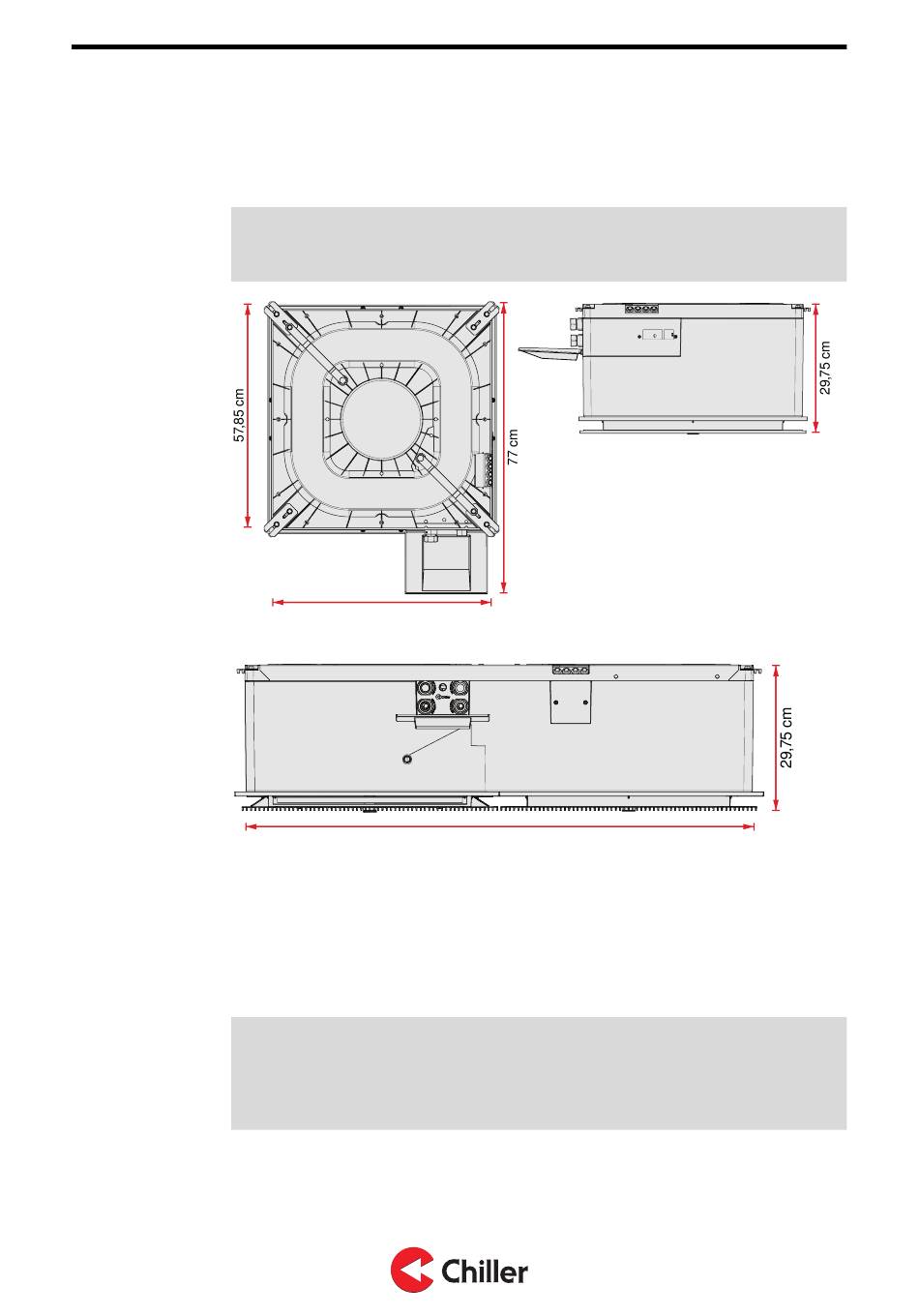

Figure 2: Dimensional drawings of Box Mono
Figure 3: Dimensional drawing of Box Double
3.3
The type plate is located in the inlet opening. It is visible when you remove the
intake grille and filter.
Note! Record the type plate information on the unit card and file it carefully. The
type and serial numbers of the unit are required for identifying the unit when, for
instance, purchasing spare parts.
When you order maintenance or order spare parts. you always need the serial
number. You cannot make an order without the serial number.
