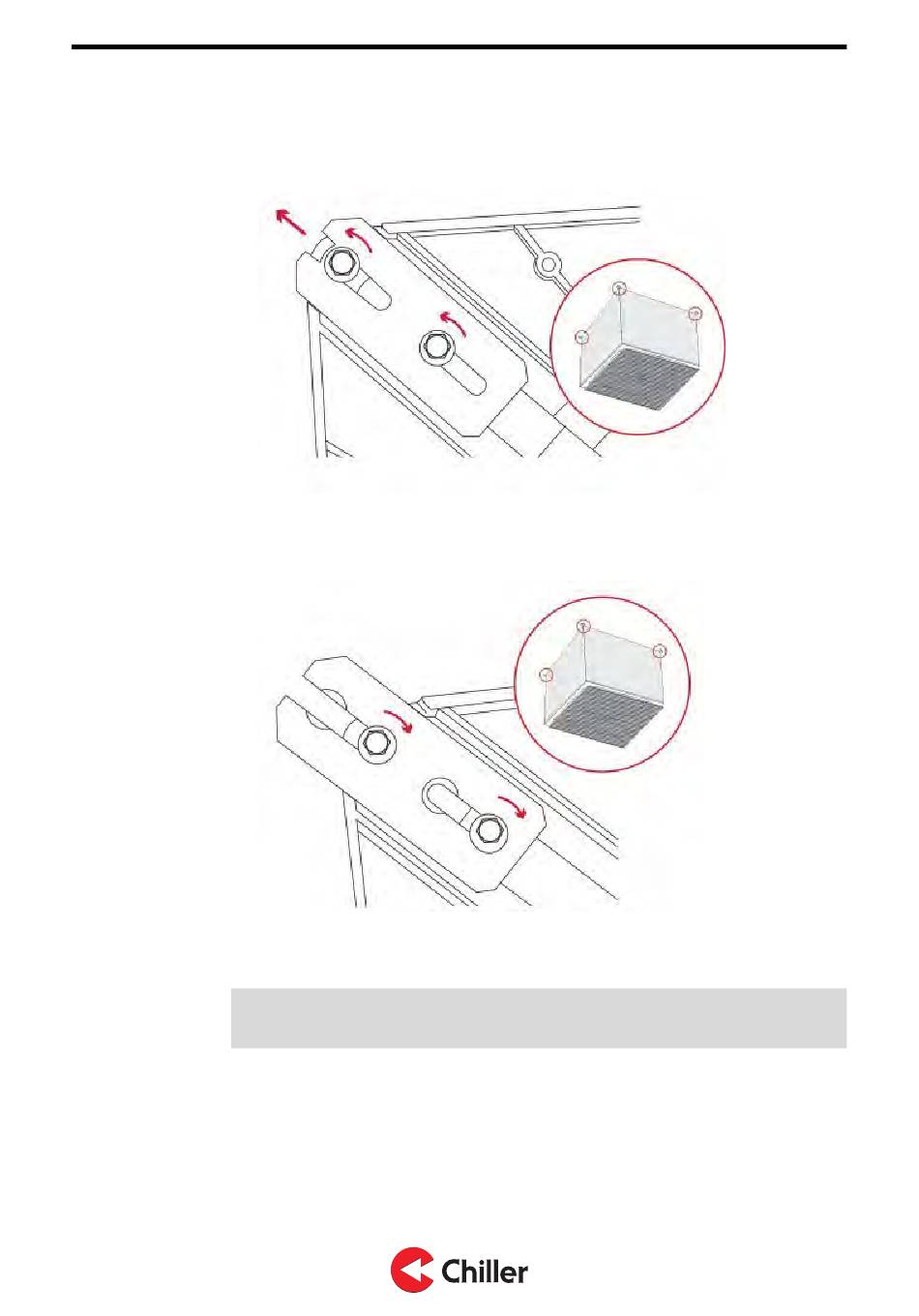

1. Open the attachment bracket screws by turning them counterclockwise.
2. Move the attachment brackets from transport position to installation position
3. Secure the attachment brackets by tightening the fastening bolts. Tighten the
4. Attach supports to the 8 mm wide slots on the attachment brackets.
5. Mount the unit on the ceiling with the supports.
Note! Do not hoist the unit from pipe joints, valves, or the condensation water basin.
You can hoist the unit on the ceiling by using, for instance, a flat jack.
Copyright © 2020. All rights reserved.
BOX Vari & Vari Pro – Installation, Operation, and Maintenance Manual
by pulling them outwards.
bolts to 8 Nm.
a. If you use threaded bars for supporting the unit, you must secure the joint
between the threaded bar and the support with locknuts and washers.
b. Make sure that the bars are strong enough to hold the weight of the unit.
c. Make sure that the bars are attached tightly to the ceiling and they do not
come off.
