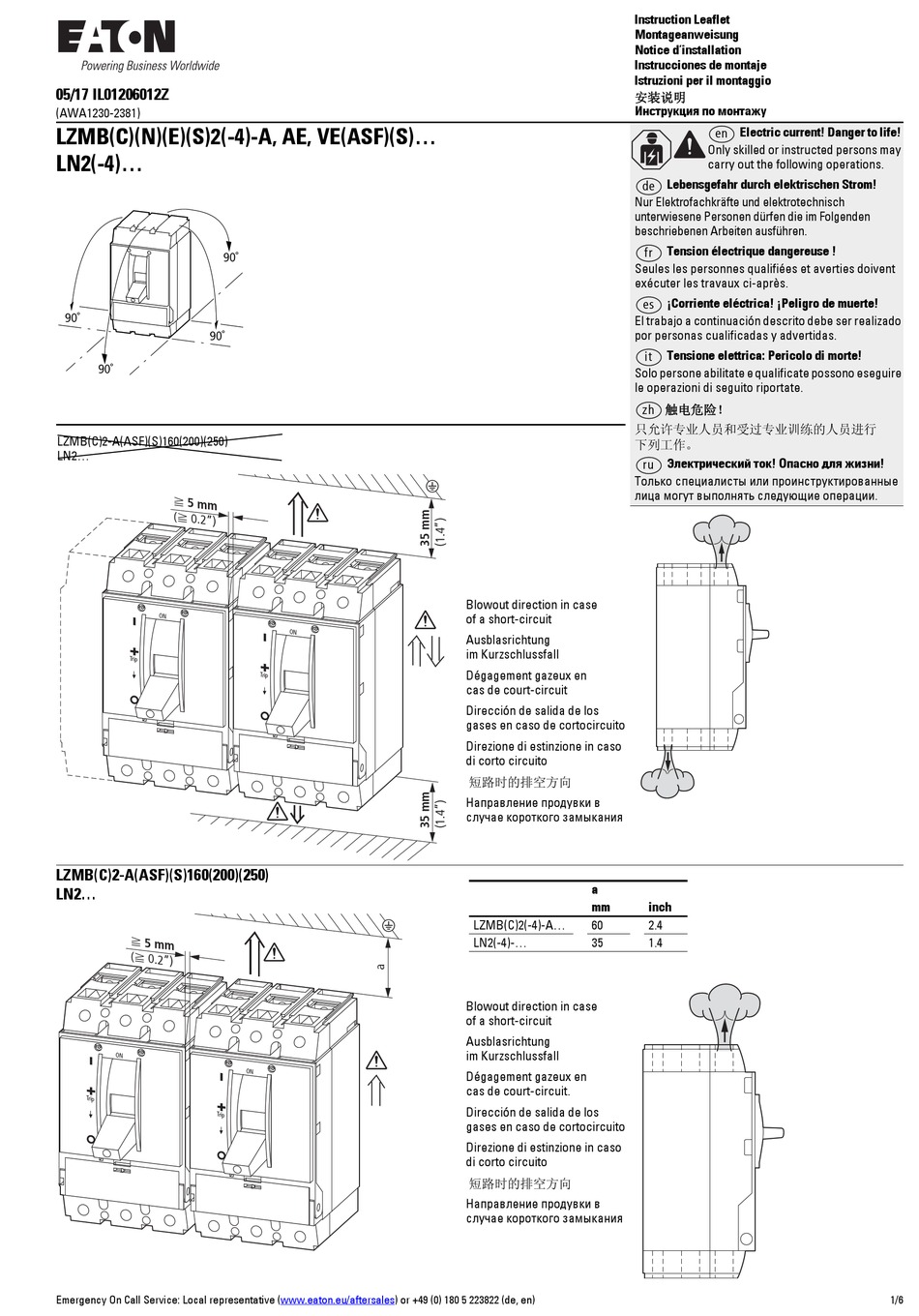

05/17 IL01206012Z
(AWA1230-2381)
LZMB(C)(N)(E)(S)2(-4)-A, AE, VE(ASF)(S)...
LN2(-4)...
90˚
90˚
90˚
90˚
LZMB(C)2-A(ASF)(S)160(200)(250)
LN2...
f 5 m m
(f 0 .2 " )
LZMB(C)2-A(ASF)(S)160(200)(250)
LN2...
f 5 m m
(f 0 .2 " )
Emergency On Call Service: Local representative (www.eaton.eu/aftersales) or +49 (0) 180 5 223822 (de, en)
Blowout direction in case
of a short-circuit
Ausblasrichtung
im Kurzschlussfall
Dégagement gazeux en
cas de court-circuit
Dirección de salida de los
gases en caso de cortocircuito
Direzione di estinzione in caso
di corto circuito
Направление продувки в
случае короткого замыкания
LZMB(C)2(-4)-A...
LN2(-4)-...
Blowout direction in case
of a short-circuit
Ausblasrichtung
im Kurzschlussfall
Dégagement gazeux en
cas de court-circuit.
Dirección de salida de los
gases en caso de cortocircuito
Direzione di estinzione in caso
di corto circuito
Направление продувки в
случае короткого замыкания
Instruction Leaflet
Montageanweisung
Notice d'installation
Instrucciones de montaje
Istruzioni per il montaggio
安装说明
Инструкция по монтажу
Electric current! Danger to life!
en
Only skilled or instructed persons may
carry out the following operations.
Lebensgefahr durch elektrischen Strom!
de
Nur Elektrofachkräfte und elektrotechnisch
unterwiesene Personen dürfen die im Folgenden
beschriebenen Arbeiten ausführen.
Tension électrique dangereuse !
fr
Seules les personnes qualifiées et averties doivent
exécuter les travaux ci-après.
¡Corriente eléctrica! ¡Peligro de muerte!
es
El trabajo a continuación descrito debe ser realizado
por personas cualificadas y advertidas.
Tensione elettrica: Pericolo di morte!
it
Solo persone abilitate e qualificate possono eseguire
le operazioni di seguito riportate.
触电危险!
zh
只允许专业人员和受过专业训练的人员进行
下列工作。
ru
Электрический ток! Опасно для жизни!
Только специалисты или проинструктированные
лица могут выполнять следующие операции.
a
mm
inch
60
2.4
35
1.4
1/6
