HoneyDripper
FX Type: Filter
Based on the Colorsound® Dipthonizer™
© madbeanpedals
2015 Version

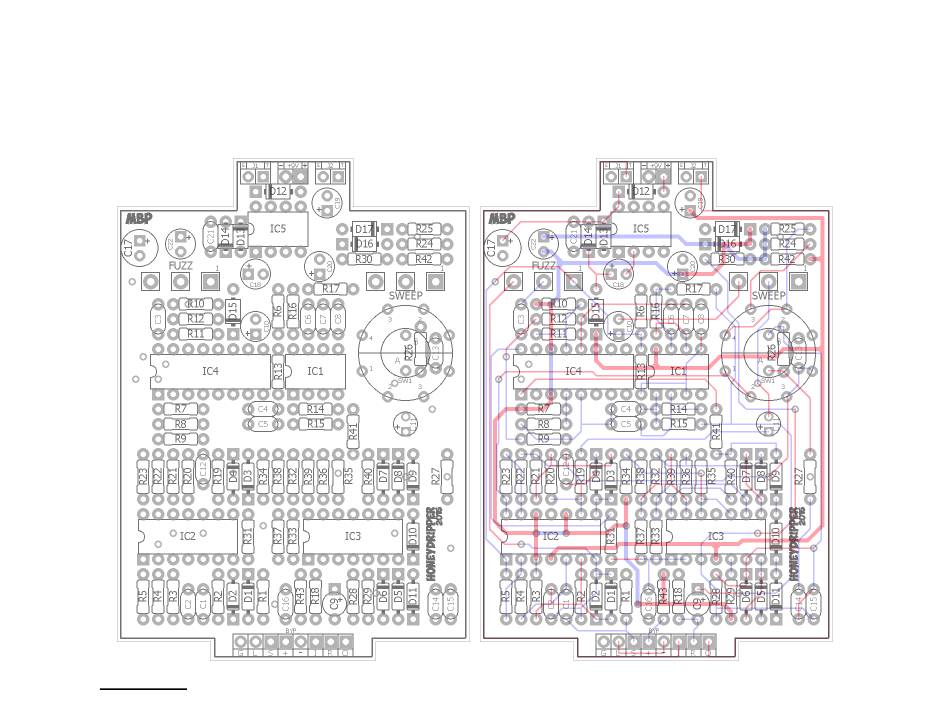

2.35" W x 3.35" H
Terms of Use: You are free to use purchased HoneyDripper circuit boards for both DIY and small commercial operations. You
may not offer HoneyDripper boards for resale or as part of a "kit" in a commercial fashion. Peer to peer re-sale is, of course, okay
Advertisement
Related Manuals for Mad Bean Pedals HoneyDripper
Summary of Contents for Mad Bean Pedals HoneyDripper
- Page 1 Terms of Use: You are free to use purchased HoneyDripper circuit boards for both DIY and small commercial operations. You may not offer HoneyDripper boards for resale or as part of a “kit” in a commercial fashion. Peer to peer re-sale is, of course, okay...
- Page 2 10uF The rotary switch is included with the purchase of the HoneyDripper 2015 PCB. The switch has a knurled shaft instead of a smooth one like the Alpha in the previous version. Just be sure that you order/use a knob made for knurled shafts or you're going to have a bad time.
-
Page 3: Shopping List
Shopping List Value Type Rating Metal / Carbon Film 1/4W Metal / Carbon Film 1/4W Metal / Carbon Film 1/4W Metal / Carbon Film 1/4W Metal / Carbon Film 1/4W Metal / Carbon Film 1/4W Metal / Carbon Film 1/4W Metal / Carbon Film 1/4W Metal / Carbon Film... - Page 5 125B Drill Guide 5.52" W x 7.65" H Tip: When mounting the knob on the rotary switch, turn it to the "bow" setting. This will allow you to mount the knob perpendicular to the enclosure so it will line up with the hash marks shown above.
-
Page 6: Wiring Guide
Wiring Guide Pots, Switch and indicator LED should be soldered directly to the PCB. - Page 7 2015 version The HoneyDripper has been re-designed to utilize the LM137000 instead of the stock CA3080 (which are becoming increasingly rare and ever-more expensive). The Alpha rotary switch has been replaced with a much smaller 2P4T (this was necessary to make the new layout fit in a 125B).
- Page 8 Voltages - 9.42 supply 4558 LM324 LM324 IC4 LM13700 IC5 LT1054 4.73 4.74 0.45 35mV 1.44 4.74 4.75 0.45 varies 4.93 4.71 4.74 0.45 4.73 17.42 17.51 4.73 28mV 4.72 4.69 4.54 4.73 4.74 4.74 4.74 2.43 4.68 4.88 38mV ignore 1.36 17.49...
- Page 9 This unit was built stock except for a 680pF cap in C2 and a 1uF film cap instead of the 2u2 electrolytic for C9. R1 was also socketed to try higher values but did not seem to make much of an impact when tested with both single coils and humbuckers.
