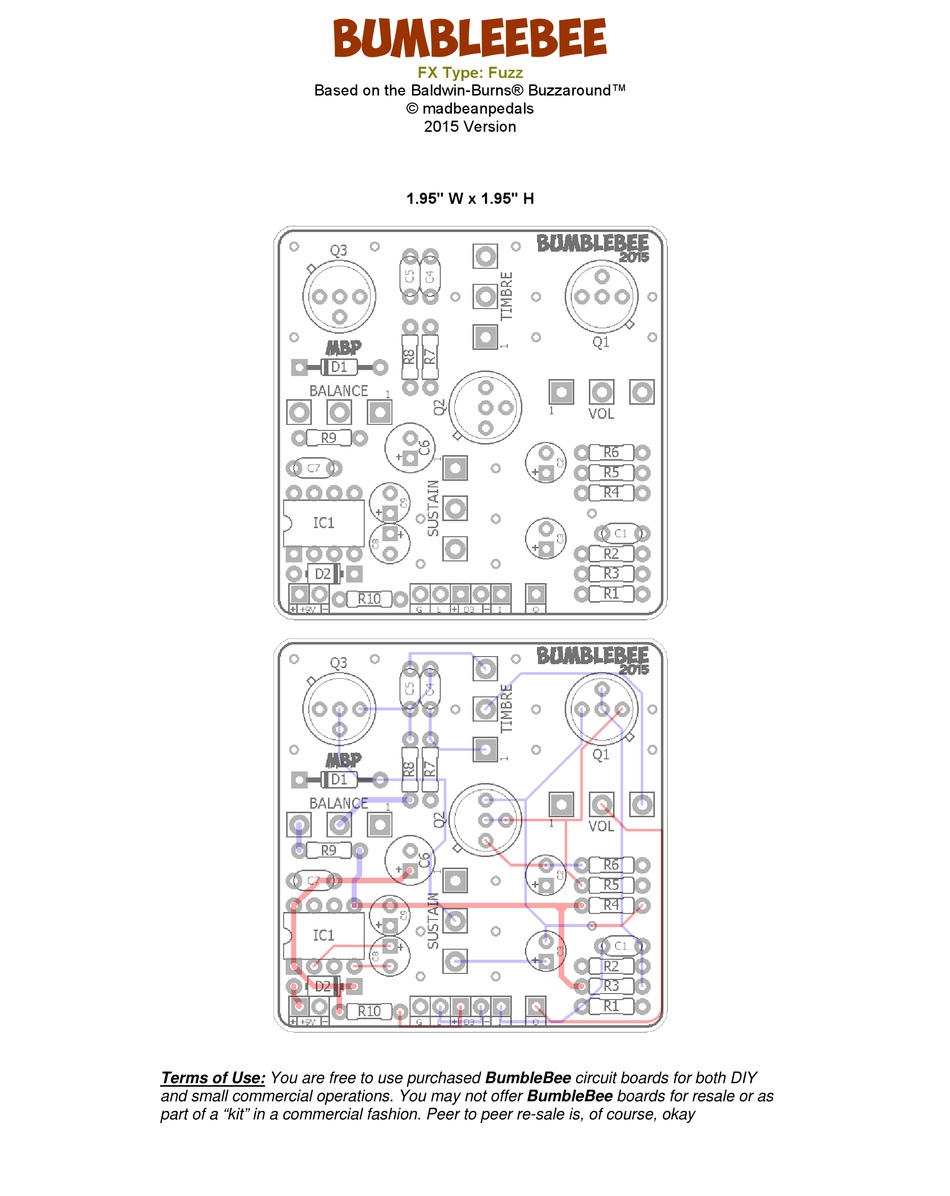

Based on the Baldwin-Burns® Buzzaround™
Terms of Use: You are free to use purchased BumbleBee circuit boards for both DIY
and small commercial operations. You may not offer BumbleBee boards for resale or as
part of a "kit" in a commercial fashion. Peer to peer re-sale is, of course, okay
Bumbleebee
FX Type: Fuzz
© madbeanpedals
2015 Version
1.95" W x 1.95" H
Advertisement
Table of Contents
Related Manuals for Mad Bean Pedals Bumblebee
Summary of Contents for Mad Bean Pedals Bumblebee
- Page 1 2015 Version 1.95" W x 1.95" H Terms of Use: You are free to use purchased BumbleBee circuit boards for both DIY and small commercial operations. You may not offer BumbleBee boards for resale or as part of a “kit” in a commercial fashion. Peer to peer re-sale is, of course, okay...
- Page 2 B.O.M. Resistors Caps Diodes 100n 1n34a 100k 1N5817 470k Transistors Q1 - Q3 PNP Germ 100n 100uF TC1044SCPA 100n Pots 10uF SUSTAIN 100kB 10uF TIMBRE 100kB 100kB 10kB Shopping List Value Type Rating Metal / Carbon Film 1/4W Metal / Carbon Film 1/4W Metal / Carbon Film 1/4W...
- Page 4 1590B Drill Guide 4.44" W x 6.47"H...
- Page 5 1590B Drill Guide...
- Page 6 The BumbleBee is a re-creation of the Baldwin Burns Buzzaround; a very rare and somewhat legendary fuzz monster. The Bumblebee stands apart from the Fuzz Face and Tonebender. It's not as nearly as bassy as the FF and it is capable of getting even more fuzz saturation than the TB (IMO).
- Page 7 Voltages - 9.42v supply IC1 TC1044 Q1 9.22 -3.12 -3.1 -1.15 5.57 -1.64 -1.59 -46mV -1.59 -1.48 -3.72 -9.15 4.34 9.22 The voltages for Q3 are read when the Balance pot is all the up. When it is all the way down, Q3 is at ground.
