Mad Bean Pedals Mangler Quick Start Manual

Fx type: fuzz, based on the fuzz face

Mangler

FX TYPE: Fuzz

Based on the Fuzz Face

1.95" W x 1.875" H

Terms of Use: You are free to use purchased circuit boards for both DIY and small commercial operations. You may not offer these PCBs for resale or

as part of a "kit" in a commercial fashion. Peer to peer re-sale is, of course, okay.

Table of Contents

Need help?

Do you have a question about the Mangler and is the answer not in the manual?

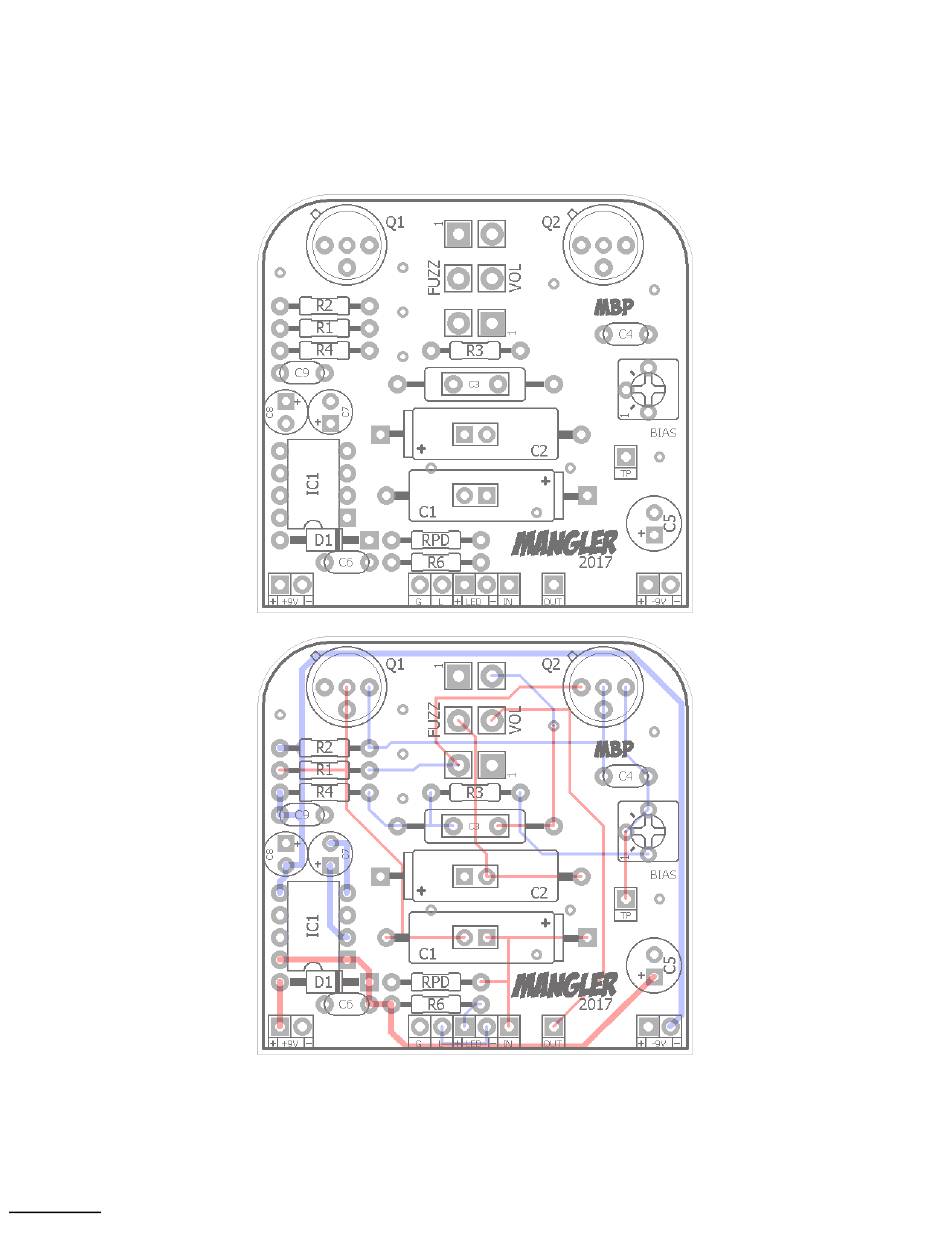

Page 1 Mangler FX TYPE: Fuzz Based on the Fuzz Face © 2017 madbeanpedals 1.95” W x 1.875” H Terms of Use: You are free to use purchased circuit boards for both DIY and small commercial operations. You may not offer these PCBs for resale or...
Page 2 B.O.M. Resistors Caps Diodes 100k 1N5817 22uF Transistors 220R Q1, Q2 PNP GE 470R 100pF 100uF TC1044SCPA 100n Trimmer 10uF BIAS 10uF Pots 100n FUZZ 500kA Shopping List Value Type Rating 220R Carbon/Metal Film, Carbon Comp 1/4W 470R Carbon/Metal Film, Carbon Comp 1/4W Carbon/Metal Film, Carbon Comp 1/4W...
Page 3 1590B Drill Guide 4.43”W x 6.47”H...
Page 4 The -9v, Ground connections on the lower right are courtesy power in case you are doing a 2 in 1 effect that is also positive ground, ex. the Mangler with a Rangemaster or PNP Tonebender. In this combination, you only need to use one inverter to power both circuits. If you are doing a 2 in 1 and...
Page 5 Calibration To bias the Mangler, touch the black lead from your DMM to the TP pad under the Bias trimmer on the PCB and the red lead to any ground point on the circuit. Adjust the trimmer until your DMM reads approximately -4.5v. It does not have to be EXACTLY -4.5v…but keep it pretty close.
Page 6 Notes C1, C2 and C3 can be either axial or radial caps. The radial spacing is standard (5mm for C3, 2.5mm for C1 and C2). The axial spacing is 18mm for C3 and 23mm for C1 and C2. It doesn’t matter with type you use…the axial caps are for pure mojo.
