Digital Watchdog Star-Light Plus DWC-D4583WTIR User Manual

5mp universal hd over coax indoor snapkit dome camera
Hide thumbs Also See for Star-Light Plus DWC-D4583WTIR:

Advertisement

Quick Links

Download this manual
Before installing and using the camera, please read this manual carefully.
nstalling and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
to keep it handy for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Star-Light Plus DWC-D4583WTIR and is the answer not in the manual?

Questions and answers

Related Manuals for Digital Watchdog Star-Light Plus DWC-D4583WTIR

Summary of Contents for Digital Watchdog Star-Light Plus DWC-D4583WTIR

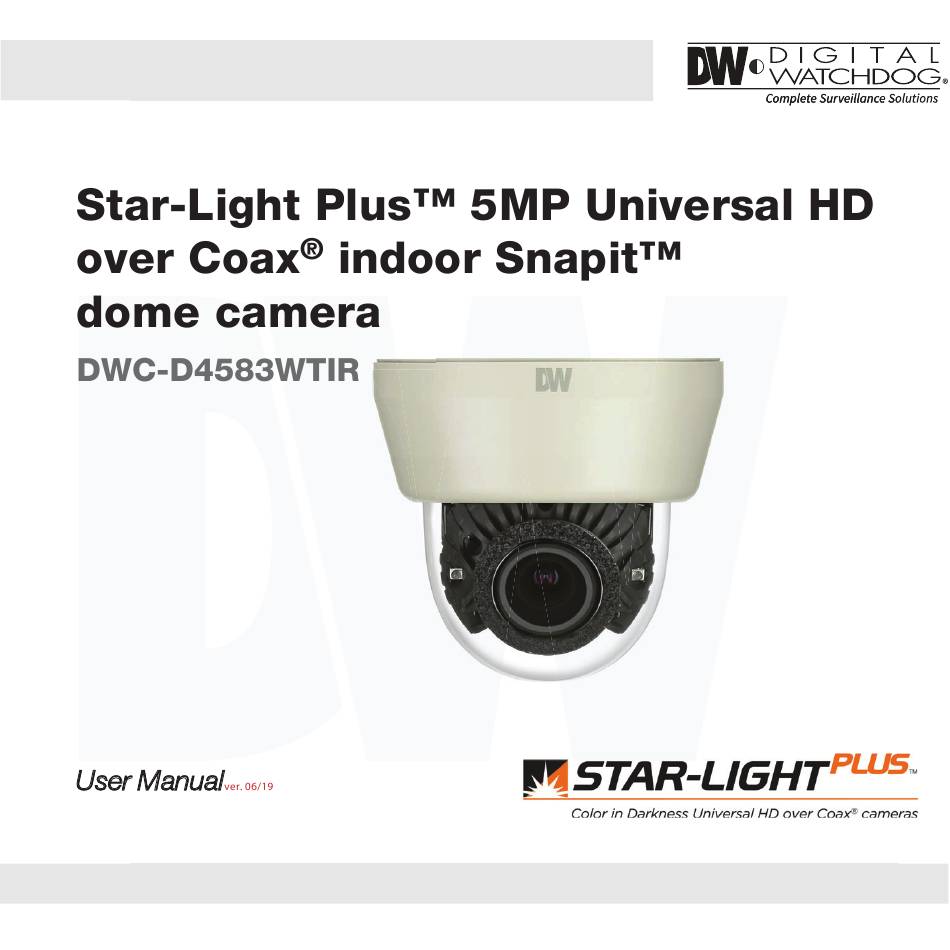

  • Page 1 Before installing and using the camera, please read this manual carefully. nstalling and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. to keep it handy for future reference.
  • Page 2 OSD MENU...
  • Page 8 Star-Light Plus™ color in darkness technology...
  • Page 10 RS 485 ALARM BK D+ BLUE + WH D- WHITE -...
  • Page 13 Template sheet...
  • Page 15 Monitor...
  • Page 17 EXPOSURE DAY & NIGHT (IR OPTION) EXPO D&N LENS MANUAL / AUTO MODE AUTO / COLOR / B&W AF MODE / D&N FILTER 2-MOTOR IR LED ON / OFF / INITIAL SMART IR 0 ~20 0 ~ 20 BRIGHTNESS D>N THRES 0~ 20 AUTO / MANUAL / FLICKER SHUTTER...
  • Page 18 MOTION SETUP MOTI COMM. CAM ID / BAUDRATE / CONFIRM DET WINDOWS 0 ~ 10 FRAME RATE / FREQ / OUTPUT SENSITIVITY ANALOG MODE / CONFIRM OFF / ON MOTION OSD OFF / ON ENG / CHN / CHN(S) / JPN / KOR LANGUAGE TEXT ALARM OFF / ON...
  • Page 19 LENS EXPOSURE EXPO 2-MOTOR LENS AUTO AF MODE ONESHOT 2-MOTOR D&N FILTER SYNC OFF BRIGHTNESS INITIAL SHUTTER AUTO RETURN BACK-LIGHT STARLIGHT 3D DNR HIGH RETURN 2-motor Enter the 2-Motor lens sub-menu. In this menu, you can adjust the following options: AF mode - ONESHOT: Select for auto focus.

  • Page 20: Back-Light Off

    Back-light EXPOSURE LENS AUTO HME (highlight masking exposure) 2-MOTOR BRIGHTNESS SHUTTER AUTO BACK-LIGHT STARLIGHT 3D DNR HIGH RETURN BACK-LIGHT BLC (back-light compensation) LEVEL LEVEL COLOR COLOR RETURN BACK-LIGHT H-POS V- V-P V-POS H-SIZE H-SI V-SIZE V- V-SI RETURN WDR (Wide Dynamic Range) BACK-LIGHT WDR MODE FRAME...
  • Page 21 EXPOSURE EXPO LENS AUTO 2-MOTOR BRIGHTNESS SHUTTER AUTO BACK-LIGHT STARLIGHT 3D DNR HIGH RETURN Star-Light™ AGC (auto gain control) 3D DNR (3D digital noise reduction)
  • Page 22 WB mode COLOR WHITE BAL. WHITE BAL. AUTO C-TEMP 5000K COLOR GAIN 10 R-GAIN B-GAIN RETURN RETURN Auto AUTOext Preset Manual Color gain...
  • Page 23 DAY/NIGHT D&N DAY & NIGHT DAY & NIGHT MODE AUTO MODE COLOR MODE B&W IR LED IR LED NOT USED IR LED SMART IR SMART IR NOT USED SMART IR 3 D>N THRES RETURN RETURN N>D THRES D>N THRES NOT USED N>D THRES NOT USED DELAY...

  • Page 24: Mirror, Flip

    FUNCTION DEFOG FUNC MODE MANUAL SHARPNESS LEVEL MIDDLE RETURN GAMMA 0.55 MIRROR FLIP D-ZOOM 1.0X DEFOG RETURN Sharpness Gamma Mirror, flip D-Zoom DRC (digital image stabilizer) DEFOG...

  • Page 25: Det Window

    The camera can detect movement and display an alarm on the screen when movement is detected. MOTION MOTI DET WINDOW WINDOW USE DET WINDOW WINDOW ZONE SENSITIVITY DET H-POS MOTION OSD DET V-POS TEXT ALARM DET H-SIZE SIGNAL OUT DET V-SIZE RETURN RETURN DET window...

  • Page 26: Text Alarm

    The camera can detect movement and display an alarm on the screen when movement is detected. MOTION MOTI DET WINDOW WINDOW USE DET WINDOW WINDOW ZONE SENSITIVITY DET H-POS MOTION OSD DET V-POS TEXT ALARM DET H-SIZE SIGNAL OUT DET V-SIZE RETURN RETURN Text alarm...
  • Page 27 You can hide some parts of the camera’s view to protect privacy and sensitive data. A total of 24 privacy masking zones are available, including 16 square zones and 8 polygon shaped zones. PRIVACY PRIV ZONE NUM ZONE DISP POLYGON H-POS RETURN V-POS...
  • Page 28 You can hide some parts of the camera’s view to protect privacy and sensitive data. A total of 24 privacy masking zones are available, including 16 square zones and 8 polygon shaped zones. PRIVACY POLYGON PRIV ZONE NUM ZONE DISP POLYGON POS0-X RETURN...
  • Page 29 COMM OUTPUT SETUP CAM ID FRAME RATE 1440p 30 BAUDRATE 9600 FREQ 60HZ CONFIRM ANALOG MODE HD_T COMM RETURN CONFIRM OUTPUT RETURN LANGUAGE CAM TITLE RESET RETURN COMM Output NOTE :...

  • Page 30: Cam Title

    SETUP COMM OUTPUT LANGUAGE CAM TITLE RIGHT UP RESET RETURN Language CAM title Reset...

  • Page 31: Save And Exit

    EXIT EXIT SAVE&EXIT EXIT RETURN Save and exit Exit the OSD menu after saving the recent changes. Exit Exit the OSD menu without saving any changes.
