Summary of Contents for Climax Vesta ESGW Series

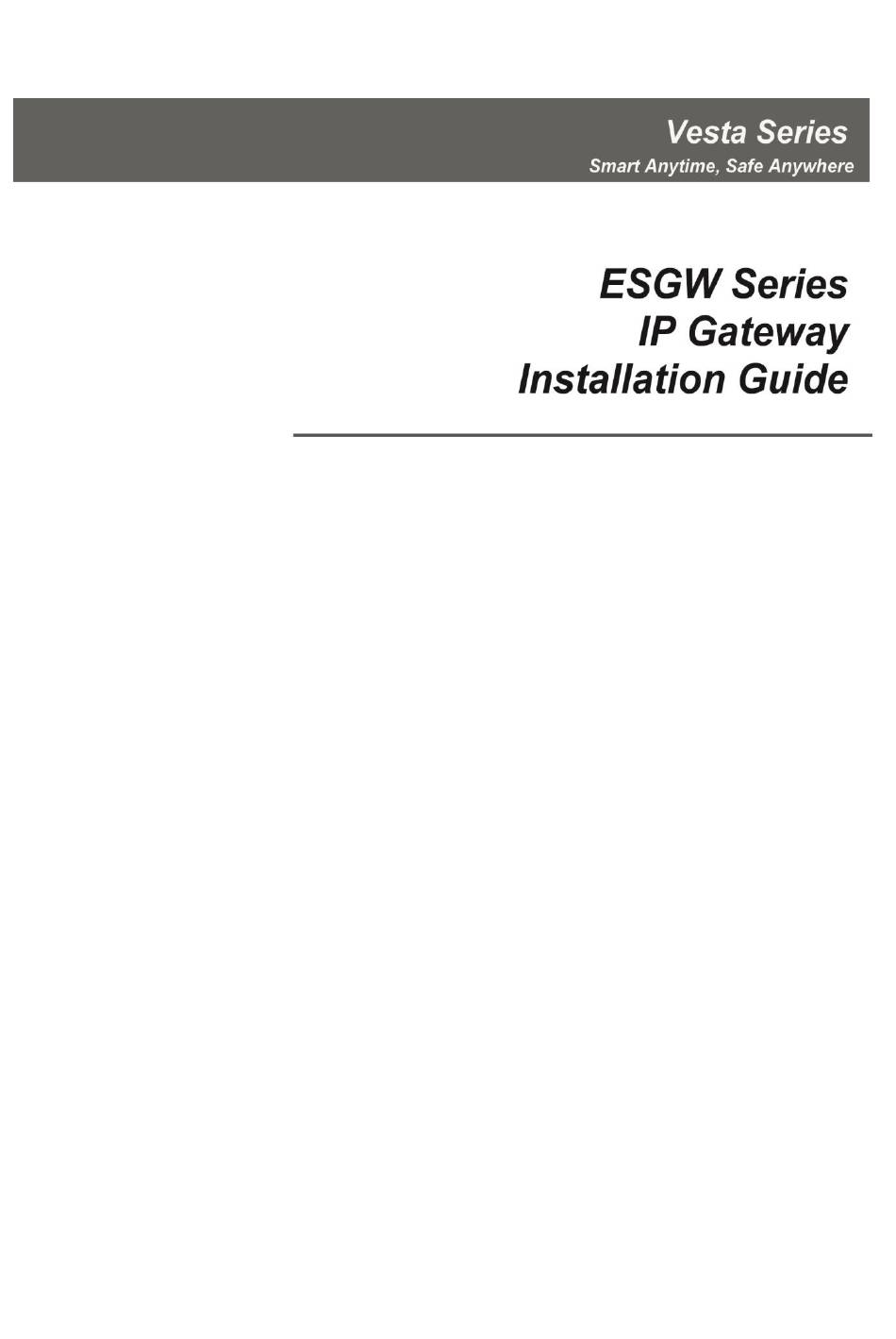

  • Page 1 November 28, 2019...

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION __________________________________________________________________ 1 DEVICE MANAGEMENT ____________________________________________________________ 2 2.1. I : _____________________________________________________________ 2 DENTIFYING THE PARTS 2.2. T : ________________________________________________________________ 3 OWER UPPLY 2.3. S : _____________________________________________________________ 3 YSTEM EQUIREMENTS GETTING STARTED _______________________________________________________________ 4 3.1. S _______________________________________________________________ 4 YSTEM EPLOYMENT 3.2.
  • Page 3 8.5. C __________________________________________________________________ 49 ETTINGS 8.6. SMTP S ___________________________________________________________________ 51 ETTING 8.7. M ___________________________________________________________________ 52 EDIA PLOAD 8.8. P ________________________________________________________________________ 53 OLLING 8.9. XMPP__________________________________________________________________________ 54 8.10. D & T ____________________________________________________________________ 55 8.11. D DNS ___________________________________________________________________ 56 YNAMIC 8.12. T IP ________________________________________________________________________ 57 8.13.

  • Page 4: Introduction

    Introduction This section covers unpacking your ESGW IP Gateway Control Panel. Refer to later chapters for information on setting up and configuring the system over the Web Page in more detail. The Control Panel utilizes ZigBee Pro Home Automation 1.2 profile is compatible with all ZigBee devices of same protocol on the market produced by other manufacturers.

  • Page 5: Device Management

    2. Device Management 2.1. Identifying the parts: 1. Function Button & System Mode LED (Red/Blue) Function Button: Press and hold for 3 seconds – Enable WPS Protocol Press and hold for 10 seconds – Enter Learning Mode Press once under Learning Mode – Exit Learning Mode Press and Hold then apply AC Power –...

  • Page 6: The Power Supply

    2.2. The Power Supply: An AC power adapter is required to connect to a wall outlet. Be sure only to use an adapter with the appropriate AC voltage rating to prevent component damage. DC 5V 1A switching power output adaptor is generally used to power the Control Panel for standard version. 2.3.

  • Page 7: Getting Started

    ※ THIS INSTALLATION IS ONLY REQUIRED FOR FIRST TIME USER ※ RUNNING THE FINDER SOFTWARE The Finder software is required for your computer to identify the control panel on the LAN. pen your browser and type below URL in the Step 1. To download Finder software, o address bar: http://www.climax.com.tw/climax-download-finder.html.
  • Page 8 After download, install the software and follow on-screen instructions to Step 2. .complete installation. Step 3. Follow on screen instruction to complete installation Step 4. Once complete, the Finder icon will be displayed on your desktop. Double click on the “Finder.exe” to start the software. Finder will automatically search Step 5.
  • Page 9 Step 7. (Optional)You can choose to edit the panel’s network setting by clicking on the panel column, then click “Configure Setting” The LanType is default to DHCP and does not require manual input of IP/Netmask/Gateawy/DNS setting. If you wish to configure these setting manually, change LanType to Static.

  • Page 10: Connection To Panel Webpage

    4. Connection to Panel Webpage For first time setup, webpage connection is only available within 1 hour after the panel is powered on; if the panel has been powered on for more than 1 hour. Webpage access will be disabled. Reboot the panel to enable webpage function again. Change default password after login to gain unrestricted webpage access.
  • Page 11 The Welcome page displays current control panel firmware version information according to different panel model and MAC address. < > < >  If the default login password is not changed, webpage access will be disabled 1 hour after power on. Reboot the panel and changed password to allow unrestricted webpage access.

  • Page 12: Device Management

    5. Device Management 5.1. Learning This feature is for you to add new devices into the Control Panel.  The panel can support a maximum of 160 devices in two areas (80 devices each area.).  Up to 6 IP Cameras can be included in the panel. ...
  • Page 13 < < > >  Z-Wave devices requires an additional Z-Wave Dongle. Step 6. If the device is successfully learnt into the system, the added device will be displayed in the “Learned Device” section as below. 5.1.2. Local Learning Press and hold the Function Button at the top of Control Panel for 10 seconds to enter learning mode, then transmit signal from your accessory devices.
  • Page 14 5.1.3. Edit Devices Step 1. To edit device setting, go to “Panel” webpage and click “Edit” after the device column under the Device List section. Step 2. You device information and setting will be displayed. Programming the settings according to instructions below and click OK when completed to confirm change. <...
  • Page 15 Step 3. Edit your device setting and information according to instruction below. Click “OK” to save your new changes when finished. Alternatively, click “Default” to reset all parameters to default values or click “Reset” to re-enter all the information.  Name: Enter a name for the device.
  • Page 16 Control Panel will report the arm/disarm event by the particular device Latch Reprot OFF = Whenever the system is armed, home armed or disarmed, the Control Panel will NOT report the event.  Set/Unset: For Door Contact only. This function allows Door Contact to control system mode..
  • Page 17 Burglar Follow is triggered, the Control Panel will report a burglar alarm immediately.  When a Start Entry sensor is triggered and the system is under Entry Delay Timer countdown, if a sensor set to Burglar Follow is triggered, the Control Panel will wait until the Entry Delay Timer expires before activating a burglar alarm.
  • Page 18 5.1.4. Delete Devices To delete a sensor, choose “Delete” under “Panel” section. Step 1. A message “Delete success” is displayed and the sensor you choose is deleted Step 2. successfully.
  • Page 19 5.1.5. Identify ZigBee Device The Identify function is available for ZigBee device only, it can be used to locate ZigBee devices after learning. For battery powered ZigBee devices, the identify fuction should be used within 1 minute after pressing device button, or 3 minute after learning in the device. Otherwise due to ZigBee network mechanisms, the device may not be able to receive signal successfullly from panel.

  • Page 20: Learn Rule

    5.2. Learn Rule You can enter the sensor ZigBee MAC address manually to assign area and zone number to this sensor. Sensors learned with pre-assigned rule will be put under the area and zone number you specified. This function does not work with Z-Wave devices or IP Camera Step 1.
  • Page 21 Step 11. Learn in the sensors you have entered rules for according to 5.1.1 Add Sensor. < < > >  Learn rule function is only used to pre-assign area and zone number to sensors before learning. To add senor to control panel, you still need to follow the instruction in 5.1.1 Add Sensor to complete the learning process.

  • Page 22: Walk Test

    5.3. Walk Test This is to test the sensor operation range for installation purpose. Step 1. Click on “Start”. The system will automatically exit the test mode after 5 minutes Step 2. Press the test button on the sensor(s) or any button on the Remote Controller (Please refer to your sensor manual for detail.) Step 3.

  • Page 23: Exclusion

    5.4. Exclusion This feature is only available when Z-Wave dongle is inserted. This feature is for you to remove Z-Wave device only. Step 1. Click on “Exclusion” and click on “Start” to start the procedure. Then the Panel will enter the removing mode. Step 2.

  • Page 24: Z-Wave Tool

    5.5. Z-Wave Tool This feature is only available when Z-Wave dongle is inserted. This feature is for you to reset the Z-Wave dongle to factory default and remove all Z-Wave devices, or change routing setting.  Reset Z-Wave Dongle Step 1. Click ”Z-Wave Factory Reset”, Then the inserted Z-Wave dongle is reset to factory default and all Z-Wave devices will be removed automatically.

  • Page 25: Pss Control

    5.6. PSS Control This feature is designed to control/edit/delete an added power switch. 5.6.1. Edit PSS Click Edit to further edit attributes of power switches. Step 1. To program the power switch, select PSS Control → Edit menu to edit the power switch’s settings.
  • Page 26 5.6.2. Delete PSS Click Delete to delete power switches. 5.6.3. Control PSS Click Switch On/Switch Off to turn on/off power switches. Or click Switch Toggle to control the power switch status.

  • Page 27: Upic Control

    5.7. UPIC Control UPIC Control webpage allows you to control UPIC IR Transmitter included in Control Panel Step 1: Refer to UPIC manual to complete IR signal learning of “Off”, “Heating” and “Cooling” command for air conditioner. Step 2: Use the drop down menu to select “Off”, “Heating” or “Cooling”. Then click “Setup UPIC” to transmit corresponding command to air conditioner with UPIC.

  • Page 28: Surveillance

    5.8. Surveillance The PIR Camera/Video Cameras and IP Cameras are listed under Surveillance for separate control.  Click Edit to edit camera attributes.  Click Delete to remove device from panel.  Click Request Media to capture a picture or vide ...
  • Page 29 5.8.2. Delete PIR Camera / PIR Video Camera Click Delete to delete an existing PIR Camera / Video Camera/ IP Camera. 5.8.3. Request Images / Video Step 1. Click Request Media to capture picture or video. PIR camera: A picture will be captured upon request PIR Video Camera: A 10-second video will be recorded upon request IP Camera: The IP Camera will record a video according to its video length setting (Please refer to IP Camera manual for detail.)
  • Page 30 Step 2: The captured image and video from PIR Camera/Video Camera will be displayed in the Captured Events section. To view captured image and video, select Captured Events to view details. < > < >  If the number of captured events exceeds 100, the oldest record will be replaced the latest one.

  • Page 31: Group Control

    5.9. Group Control This feature is designed for you to edit a name of group, switch on or off a group of power switches. Besides, you also can assign power switches to a group you wish. 5.9.1. Group Control/Edit Step 1. Specify a new name for a group. Step 2.

  • Page 32: Program The System

    6. Program the System After the initial set-up, you can then program your system by clicking on the left menu to set them individually. 6.1. Panel Condition In the Panel Section, user can arm, disarm or partially arm the system. Besides, it displays the current Panel Status &...
  • Page 33 Fault Status The fault events that exist in the alarm system is displayed under this section. When fault event exists in system, the control panel Fault LED will light up to indicate fault status under Disarm or Home Arm mode (The Fault LED will not light up under Arm mode). When fault event exists, and you attempt to arm the system, the arming action will be prohibited and the panel will display fault information on the webpage.

  • Page 34: Panel Settings

    6.2. Panel Settings Program the Panel, Time and Sound Settings at your discretion. Panel Setting  Auto Check-in: this is to select whether the Control Panel needs to do check-in reporting to the Central Station automatically and to select the period of time between check-in reports.
  • Page 35 the setting of the Auto Check-in Report. For example, if Offset Period is set to 2 Hours, and Auto Check-in Report is set to 3 Days, the Control Panel will transmit an event code 602 to the CMS after 2 hours, and then report 602 event code periodically at a regular intervals of 3 days.
  • Page 36 will not be sent during the time period you set in Entry Delay 1 for full arm mode. On the other hand, if the correct Pin code has not entered during the period, Control Panel raises an alarm and sends alarm report. If Door Contact (DC) or PIR Detector (IR) is set as Entry Delay 1 for Full Arm attribute, the system will get into counting down period (Away entry timer) while the DC or IR is triggered under full arm mode.
  • Page 37 arm mode.  Exit Delay Sound for Home Arm: this is for you to decide whether the system should sounds count-down beeps and volume of beep during the exit delay timer in the home arm mode.  Entry/ Exit Only Final Beeps: This is for you to determine when the system should start warning beep during Entry or Exit countdown timer.

  • Page 38: Pin Code

    6.3. PIN Code 6 User PIN Codes are available in each Area. Each consists of 4 digits (only valid for numeric number 0~9). User PIN code #1 for each Area is always activated factory default. All User PIN Codes are used to regularly arm/disarm the system and are allowed to access the Programming mode accompanied with the Master Code.

  • Page 39: Network Settings

    7. Network Settings 7.1. Network This is for you to program the Network for IP connection.  Obtain an IP address automatically (DHCP) If DHCP is selected, the Network will obtain an IP address automatically with a valid Network DHCP Server. Therefore, manual settings are not required. This is only to be chosen if your Network environment supports DHCP.

  • Page 40: Wireless (Optional)

    7.2. Wireless (Optional) The Wireless page is only available to panel model with built-in wifi function. There are 3 ways to connect to the wireless network. 1. Click “Site Survey” to search for available wireless access points. Select the desired access point and click “Add”...

  • Page 41: Upnp

    7.3. UPnP UPnP is Universal Plug and Play, which opens networking architecture that leverages TCP/IP and the Web technologies to enable seamless proximity networking in addition to control and data transfer among networked devices in the home, office, and public spaces. ...

  • Page 42: System Settings

    8. System Settings 8.1. Administrator Setting It is used to set new Administrator Log-in Name and Password when accessing this web page. Please note the Caps for your Log-in Name and Password. Step 1. Enter the preferred Login-in Name. Step 2. Enter the preferred Password in the “New Password” field and repeat the same Password in the Repeat Password field.

  • Page 43: Home Automation

    8.2. Home Automation It is used to set Home Automation rules to control sensors and home appliances. You can set 20 rules. Step 1. Click on Edit. Step 2. Select an operation area. Step 3. Set a rule condition. Step 4. Set a rule schedule. Step 5.
  • Page 44  Mode Change : if the rule condition is set as Mode Change, when the system changes to Disarm/ Full Arm/ Home Arm 1/ Home Arm 2/ Home Arm 3, the system will follow the schedule and execution rule to respond accordingly. ...
  • Page 45  Humidity Below : When set as Humidity Below,if the humidity reading from specified room sensor falls below the level specified, the rule will be activated according to rule schedule and execution setting.  LUX Between : When set as LUX Between, if the lux reading from specified light sensor falls below the level specified, the rule will be activated according to rule schedule and execution setting.
  • Page 46  Execution Rule  Zone Switch Off: a device in the zone which you specify will be switched off.  Zone Swich On : a device in the zone which you specify will be switched on.  Zone Switch Level:: this function is used for Z-Wave device Dimmer only to control the output percentage.
  • Page 47  Request Video : The PIR Video Camera or IP Camera in specified zone will record a video.  Request Video (All) : All PIR Video Cameras and IP Cameras in the system will record a video.  Setup UPIC:: The UPIC and specified zone will transmit Off/Heat/Cool command to the air conditioner as programmed.

  • Page 48: Scene

    8.3. Scene The Scene setting allows you to customize a series of actions with your devices, such as Power Switch control, image/video request, mode change and trigger alarm. The programmed scene can be set to activated when a device is triggered. (See 5.1.3. Edit Devicesl), or when a Home Automation Rule is excuecuted.
  • Page 49 included in one scene. Step 6. Click “Done”. Step 7. Click “OK” at bottom of webpage to confirm the new scene setting.

  • Page 50: Reporting

    8.4. Reporting This is used for installer to program/ set all requirements for reporting purposes.  Reporting URL This is used for installer to program/ set all requirements for reporting purposes.  Report via IP in CID format: ip://Account Number@server ip:port/CID ...
  • Page 51 All events: the system will report any event to this destination. Alarm events: the system will only report alarm event to this destination. Status events: the system will only report status event(mode change /fault/auto cheeck-in..) to this destination.  Group Select a group for your report destination The system will make report according to the following settings: ...

  • Page 52: Code Settings

    8.5. Code Settings The Duress Code, Master Code & Temporary Code adds the flexibility of different security level for operation in Code Settings menu. Step 1. Key in your preferred 4 digit Installer Code, Duress Code, Master Code, and/or Temporary Code. Step 2.
  • Page 53 indicate of a Duress Situation in Progress. The Duress Code consists of 4 digits and is not activated as default by the factory.  Guard Code The Guard Code is designed for security patrol personnel to arm/disarm the system. It can be set the same as a User PIN Code.

  • Page 54: Smtp Setting

    8.6. SMTP Setting Program the mail server related settings. The email account you set here would be used to send report for events Step 1. Enter the following settings:  Server: set the mail server (max. 60 digits/alphabets).  Port: set the port number (max. 5 digits/alphabets). ...

  • Page 55: Media Upload

    8.7. Media Upload The Media Upload function sets the upload destination for video clips captured by IP Camera.  URL 1~5: Upload destination for the video clips  Prefix: The prefix assigned the file name of captured video clip for you to identify the file.

  • Page 56: Polling

    8.8. Polling The polling function enables the Control Panel to query the destiation you set (URL1 or URL2) in turn as to whether it has any data to transmit.  URL/URL2: ip://server:port/path  Interval : interval time of polling...

  • Page 57: Xmpp

    8.9. XMPP XMPP setting enables the Control Panel to query the set destination. This setting is required for the Control Panel to connect to server for further remote control.

  • Page 58: Date & Time

    8.10. Date & Time Program the current Date & Time. Normally this will automatically synchronize with Network Time Server with a valid internet connection.  Date & Time: set current month, date and time.  Time Zone: choose your time zone, and then the system will calculate the daylight saving time automatically (if necessary).

  • Page 59: Dynamic Dns

    8.11. Dynamic DNS It is used to get your real public IP address on the internet.  Dynamic DNS Server: http://checkip.dyndns.org...

  • Page 60: Test Ip

    8.12. Test IP This is for you to test the Control Panel internet connection. Step 1. Enter the URL destination you want to test connection to. Step 2. Enter the test interval. Click “OK” Step 3. You can check the test connect result in System Log.

  • Page 61: Firmware Upgrade

    8.13. Firmware Upgrade You can update the firmware via this web page. Click on “Browse” and locate the latest firmware file (“unzipped image.bin” file) in Step 1. your PC. Press “Apply” to upload the latest firmware. It will takes about 2~5 mins to load the file Step 2.

  • Page 62: Factory Reset

    8.14. Factory Reset Yan can clear all programmed parameters in the Control Panel and reset it to Factory Default. Once the Factory Reset is executed, all the programmed data & IP values will returned to its default value, and all the learnt-in devices will be removed. You have to reprogram and learn in the device one by one again.

  • Page 63: Backup & Restore

    8.15. Backup & Restore Yan can backup all programmed parameters and save these programmed values into a file. Besides, you also can restore pre-programmed settings. 8.15.1 Backup Data Yan can backup all programmed data and save these programmed values into a file. Step 1.

  • Page 64: System Log

    8.16. System Log The sytem log webpage logs the control panel’s detail system operation history.  System Log File Download” Click to download a detail log files into your computer for more information.

  • Page 65: Event & History

    9. Event & History This section introduces event history of the system. 9.1. Captured Events This page stores all captured pictures and videos by PIR Camera and PIR Video Camera. When a PIR Camera is triggered, it will take 3 pictures in quick succession, when a PIR Video Camera is triggered, it will take a 10-second video clip.

  • Page 66: Reported Events

    9.2. Reported Events This page stores all triggered events by the control panel by recording the events’ CID event code and report status.  Reload : Click to refresh the page content  Limit # of Items: Click the drop down menu on the pageto select the numbers of captured events you want to display.

  • Page 67: Event Log

    9.3. Event Log The Event Log page records specific actions performed by the Control Panel and accessory devices.  Reload : Click to refresh the page content  Limit # of Items: Click the drop down menu on the pageto select the numbers of captured events you want to display.

  • Page 68: Device History

    9.4. Device History You can track your ZigBee accessory device status history under Device History. For Power Switch Meter or Temperature Sensor, the update history power consumption or temperature ireading will be displayed under this page (the current info is also displayed under Panel and PSS Control).

  • Page 69: Appendix

    Appendix 10.1. Communication Protocol & Format The Control Panel communicates with Central Station receiver by using Contact-ID protocol. The form of the message is: Where ACCT MT QXYZ GG C = 4 Digit Account number (0-9, B-F) ACCT = Message Type, 18H. = Event qualifier, which gives specific event information: = Event code (3 Hex digits 0-9, B-F)

  • Page 70: Event Code

    10.2. Event Code  100 – Medical  101 – Personal emergency  When the Wrist Transmitter (WTR) or Emergency Pendant (EP) is pressed.  110 – Fire  111 – Smoke  When the Smoke Detector (SD) is triggered. ...
  • Page 71  159 – Low Temperature Alarm  When low temperature alarm is triggered  162 – CO detector  344 – Interference / Interference Restore  374 – Force Arm  When “Arm Fault Type” in Panel Setting is set to “Confirm” and the panel is armed with existing fault event by confirming the arming action.
