Please read the following instructions carefully.
Keep this instruction manual and
save for future reference.
For technical support, contact us at 1-401-671-6551
or www.summerinfant.com/contact
Tools required: Qty. 2-Phillips-head screwdrivers (not included),
measuring tape (not included),
and wrench (included).
For use with children from 6 - 24 months.
Keep small parts away from children.
Adult assembly required.
Fits openings from 28" - 42" wide.

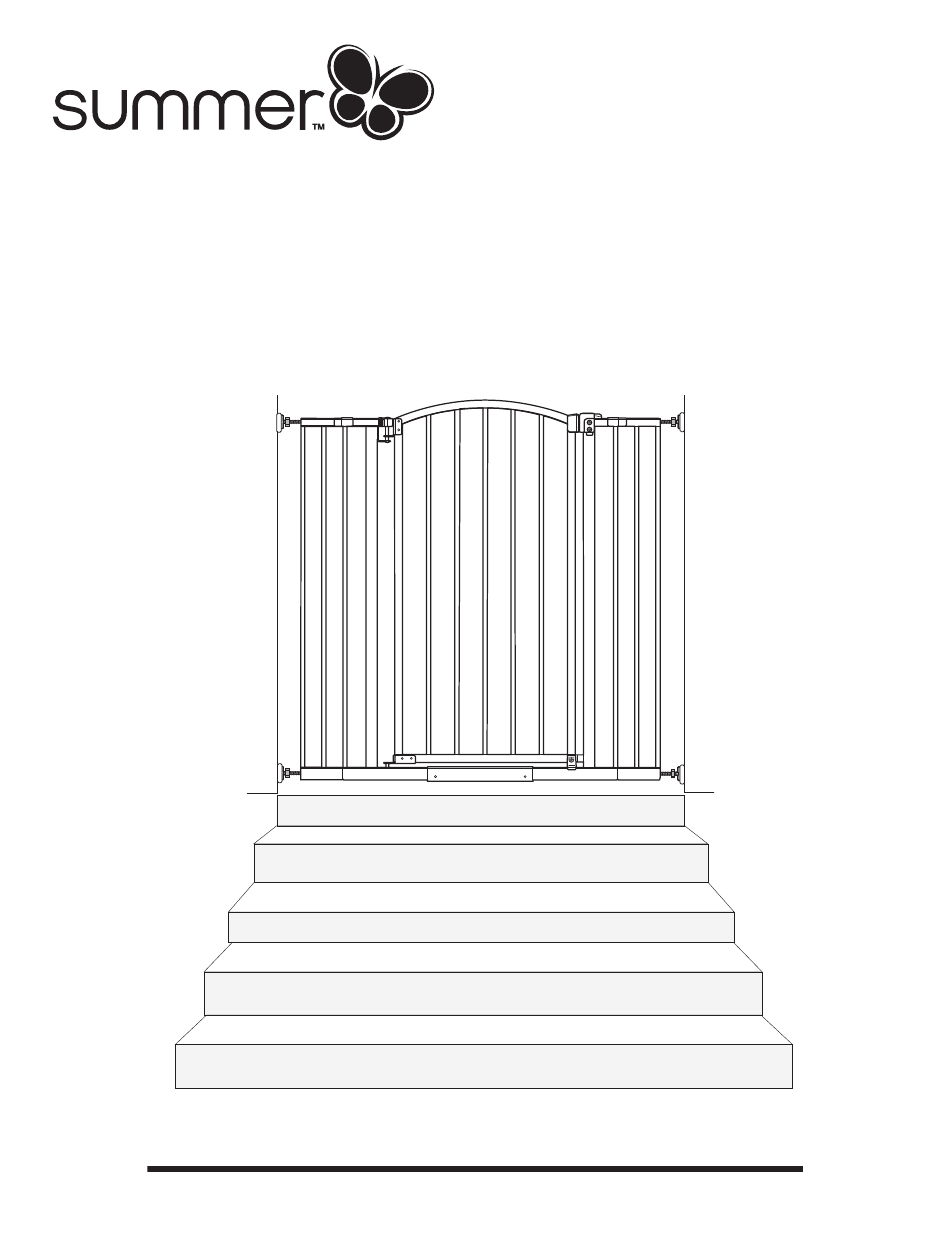

Extra Tall & Wide Arch Safety Gate
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Extra Tall & Wide Arch and is the answer not in the manual?

Questions and answers

Related Manuals for Summer Extra Tall & Wide Arch

Summary of Contents for Summer Extra Tall & Wide Arch

  • Page 1 Please read the following instructions carefully. Keep this instruction manual and save for future reference. For technical support, contact us at 1-401-671-6551 or www.summerinfant.com/contact Tools required: Qty. 2-Phillips-head screwdrivers (not included), measuring tape (not included), and wrench (included). For use with children from 6 - 24 months. Keep small parts away from children.
  • Page 2 WARNING Children have died or been seriously injured when gates are not securely installed. • ALWAYS install and use gate as directed using all required parts. • Install according to manufacturer’s instructions. • Stop using when a child can climb over or dislodge the gate. •...
  • Page 3 assembly Lower the gate frame hinge Attach with 2 binding bolts onto the gate door. and 2 binding posts. NOTE: This is easier to do when using two Phillips head screw- drivers. Attach Lower Gate Frame Hinge using Attach gate door to the Gate 2 binding bolts and 2 binding posts.
  • Page 4 assembly (cont.) Slide the gate frame hinge side and door Attach using 2 binding and the gate frame latch side into the base bolts and 2 binding posts. frame connector. NOTE: The gate will appear off-center until you add the tension bolts, mount it into the door frame and tighten the bolts according to the...
  • Page 5 gate configurations (choose which best fits your scenario) Measure the width of the opening where you intend to install the gate. Refer to the following illustrations to determine the correct installation con guration. Baseboard molding may change which con guration is appropriate. (31.5"- 34.25") with one extension frame (28"- 30.25") without extension frames (39.5"- 42") with three extension frames...

  • Page 6: Installation

    installation • If choosing gate con guration A, skip this step. • If choosing gate con guration B or C, add the desired extension frames to either side of the gate frame. • If choosing gate con guration D, add all 3 extensions to the gate frame. Slide tension bolts into upper and lower holes on both sides of extension...
  • Page 7 Checking the gate fit in the door frame A. Stand the gate in the center of the opening. Make sure the bottom of the gate is completely flush to the floor. B. Slide tension bolts out until they contact the door frame or wall on both sides. IMPORTANT Check distances A &...
  • Page 8 Checking the gate fit in the door frame (cont.) Use the tension nuts to tighten both of the bottom tension bolts. Use the tension nuts to tighten both of the top tension bolts. Proceed to Wall Cup Installation section once check is complete.
  • Page 9 wall cup installation WARNING You MUST install wall cups to keep gate in place. Without wall cups, child can push out and escape. IMPORTANT At the top of the landing, position the gate a minimum of 3-6 inches (8-15cm) away from the top step.
  • Page 10 wall cup installation (continued) NOTE: Skip this step if: - if installing at the bottom of the stairs ONLY Place a wall cup over the center of each circular outline on the wall. Mark drill holes with a pencil through the center of each wall cup.
  • Page 11 wall cup installation (continued) Remove backing Remove backing. from one side of each adhesive mounting pad. Attach one pad to the back of each wall cup. Align the wall cups so the center hole is placed directly over the wall anchor.
  • Page 12 wall cup installation (continued) NOTE: Screws are ONLY required Screw wall for top of stair use. cups into wall. Repeat "installation" steps on page 7&8. The 4 tension bolts will rest within each wall cup.
  • Page 13 wall cup installation Tighten all 4 tension nuts with the provided wrench. If any problems installing, refer to trouble shooting on page 16. Red pin Make sure when tightening the bolts the red pin on the door is not visible when the door is closed.

  • Page 14: Confirming The Installation

    confirming the installation 1. Close the gate. Make sure the upper latch is locked securely and the red pin is not visible when the door is closed. 2. Make sure the gate is installed with the door stopper opposite side of stairs. 3.

  • Page 15: Operation

    operation to unlock gate: First, slide locking tab back to release. Second, lift gate door up and then swing out to open.

  • Page 16: Troubleshooting

    If you have any questions or need assistance, contact our Consumer Relations Team at 1-401-671-6551 or www.summerinfant.com/contact Summer Infant (USA), Inc. 1275 Park East Drive Woonsocket, RI 02895 USA Colors and styles may vary. 1-401-671-6551 MADE IN CHINA. © 2020 Summer Infant (USA), Inc. D0000000776 5/20...
