07600C, 07600CZ, 07600D, 07600DZ, 27410A
Please read the following instructions carefully.
Keep this instruction manual and save for future reference.
For technical support, contact us at 1-401-671-6551
or www.summerinfant.com/contact
Tools required: Phillips-head screwdriver,
measuring tape (not included), and wrench (included).
For use with children from 6 - 24 months.
Keep small parts away from children.
Adult assembly required.
Fits openings from 28.5 in. - 48 in. wide.
Text "Decorative" to 38344 for a demo & install video.
Have questions? We're here to help!
Please contact us at 401-671-6551 or www.summerinfant.com/contact.

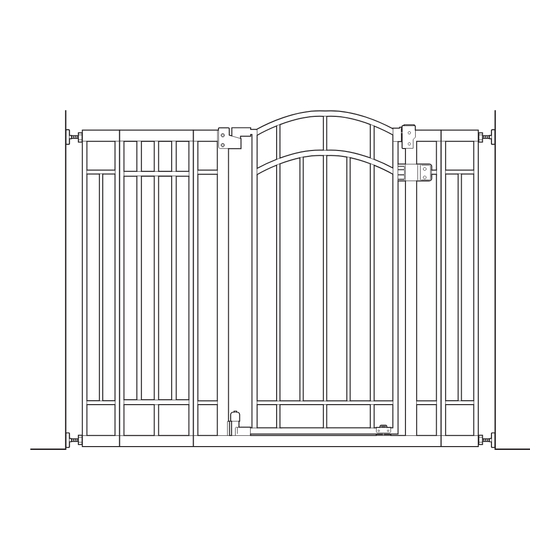

Multi-Use Decorative Extra Tall
Walk-Thru Gate
INSTRUCTION MANUAL
Thank you for purchasing the Multi-Use Decorative Extra Tall Walk-Thru Gate from Summer Infant.
This gate allows you to create and maintain a secure environment for your child just about anywhere in
your home. It has a hinged, swinging door that opens easily in either direction with one hand,
as well as hold-open and auto-close features for added convenience.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Summer 07600C
Summary of Contents for Summer 07600C
- Page 1 Walk-Thru Gate INSTRUCTION MANUAL Thank you for purchasing the Multi-Use Decorative Extra Tall Walk-Thru Gate from Summer Infant. This gate allows you to create and maintain a secure environment for your child just about anywhere in your home. It has a hinged, swinging door that opens easily in either direction with one hand,...
- Page 2 WARNING Children have died or been seriously injured when gates are not securely installed. • ALWAYS install and use gate as directed using all required parts. • Install according to manufacturer’s instructions. • STOP using when a child can climb over or dislodge the gate. •...
- Page 3 gate configurations (choose which best fits your scenario): WARNING Measure the width of the opening where you intend to install the gate. • Refer to the following illustrations to determine the correct installation NEVER install three extension configuration. • Baseboard molding may change which configuration is appropriate. frames on the same side of the gate.
- Page 4 installation: • If choosing gate configuration A, skip this step. • If choosing gate configuration B, add only one short gate extension to either side of the gate frame. • If choosing gate configuration C, add only the large gate extension to either side of the gate frame. •...
- Page 5 installation (continued): Make sure door stop is facing desired direction. For top of stair use, door stop must be on stair side of gate. Gate door must open away from stairs. IMPORTANT Check distances A &B. The distance between the gate and the wall should never exceed 2.75"...
- Page 6 STOP! wall cup/top of stairs installation: WARNING Follow these wall cup installation instructions when using gate at TOP OF STAIRS (MANDATORY), or if using wall cups for a standard opening (optional). If opting not to use wall cups for a standard opening, skip ahead to step 17. For use at top of stairs, wall cup installation is MANDATORY.
- Page 7 wall cup/top of stairs installation (continued): Note: If mounting directly into wood, skip this step.
- Page 8 wall cup/top of stairs installation (continued):...
- Page 9 wall cup/top of stairs installation (continued): IMPORTANT NEVER open gate door over stairs.
- Page 10 wall cup/top of stairs installation (continued): FINISHED!
- Page 11 testing the installation: operation: to unlock gate: hold-open feature:...
- Page 12 If you have any questions or need assistance, contact our Consumer Relations Team at 1-401-671-6551 or www.summerinfant.com/contact Summer Infant (USA), Inc. 1275 Park East Drive Colors and styles may vary. Woonsocket, RI 02895 USA MADE IN CHINA. 1-401-671-6551 © 2019 Summer Infant (USA), Inc. 01/28/19...
