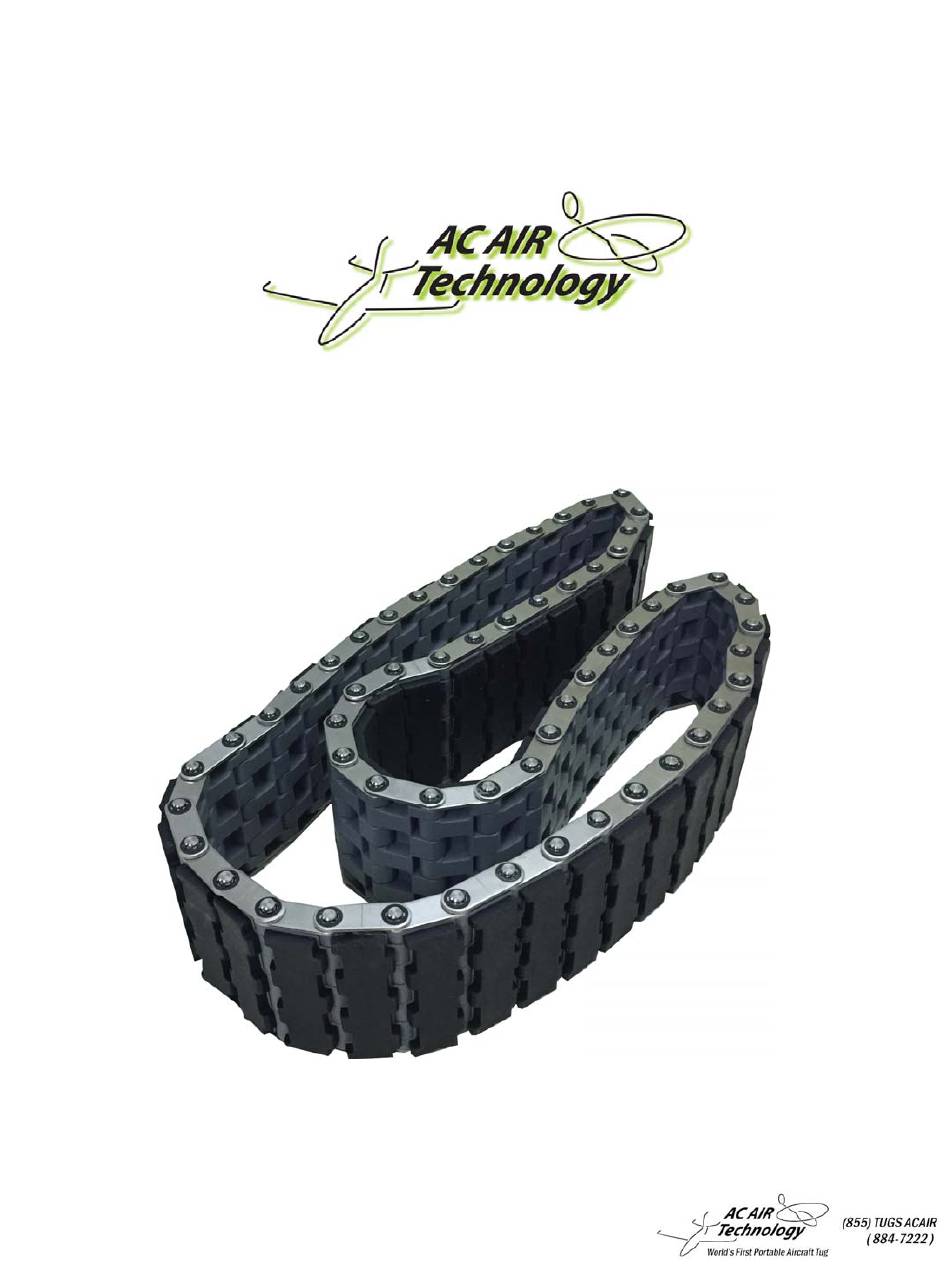

- Page 1 Instruction Manual MODEL: T1 / T1X2 / T1.5 / T2 09844 Rev. A TRACKS World’s First Portable, Remote-Control Aircraft Tugs...
-
Page 2: Table Of Contents
Contents 1. Components 2. Installation Guide 2-1. Old Track Removal 2-2. New Track Installation 2-3. Warranty... -
Page 3: Components
1. Components Install Tools Part # 23194 Retainer Clip Tool Part # 23193 Track Installation Tools Track... -
Page 4: Installation Guide
2. Installation Guide 2-1. Old Track Removal 1. Remove inside and outside plastic track guards by removing several Torx Screws. Torx Screws Plastic Track Guards Torx Screws 2. Loosen the 3 track rail screws and push the end of the track rail to relieve the track tension. - Page 5 3. Remove a Rotoclip from one of the track pins and remove the track pin from the track. Trick: Tap the end of the track pin using a hammer to drive the pin through the Rotoclip. The Rotoclip will not be reusable after removal. Tap Track Pin Here 4.
-
Page 6: New Track Installation
2-1. New Track Installation 1. Assemble one Rotoclip into the track pin groove. Make sure Rotoclip teeth are facing the outside end of the track pin. Use the clip install tool to hold the Rotoclip clip while inserting the track pin into the clip. Track Pin Track Pin Rotoclip... - Page 7 3. Install track on the track rail and align the teeth of 5 sprockets into the pockets inside the track. Sprockets 4. Insert the track pin with Rotoclip into the track to connect the loose ends. Note 1: make sure to get the chain links assembled together with the track pin. Note 2: If the track is too tight see step X at the end of these instructions.
- Page 8 5. Insert a Rotoclip into the clip tool and then press the Rotoclip on the end of the track pin. Make sure the teeth on the rotoclip are facing into the clip tool. You will need to apply pressure on the other end of the pin to keep it from pushing out of the track Apply Pressure on End of Pin Here Rotoclip...
- Page 9 7. Loosen the 3 track rail screws and the springs should tighten up the track tension. Snug the track rail screws while prying with a large screwdriver on track rail to tighten tracks even more. After all 3 screws are snug then remove one at a time and apply removable loctite to each on and reinstall.
- Page 10 STEP X (using installation tools on tight tracks) X1. Position the ends of the track at the front of the track rail as shown below. Then slip the track install tools on the inside and outside adjacent pins to the missing pin hole. Note: You will need to hold these in place by hand. Track Install Tool Adjacent Pin Missing Pin Hole...
- Page 11 X3. After the pin is in place remove both install tools. Then press a Rotoclip on both ends for the pin using the retainer clip tool. Note: See steps 5 and 6 for proper Rotoclip installation. Retainer Clip Tool Rotoclips X4.
-
Page 12: Warranty
In no event shall the liability of AC Air Technology exceed the individual price of the product on which liability is asserted. AC Air Technology has no control of the set up, ap- plication, use, modifi cation, or misuse of this product, thus no liability shall be assumed or ac- cepted for any resulting damage or injury.
