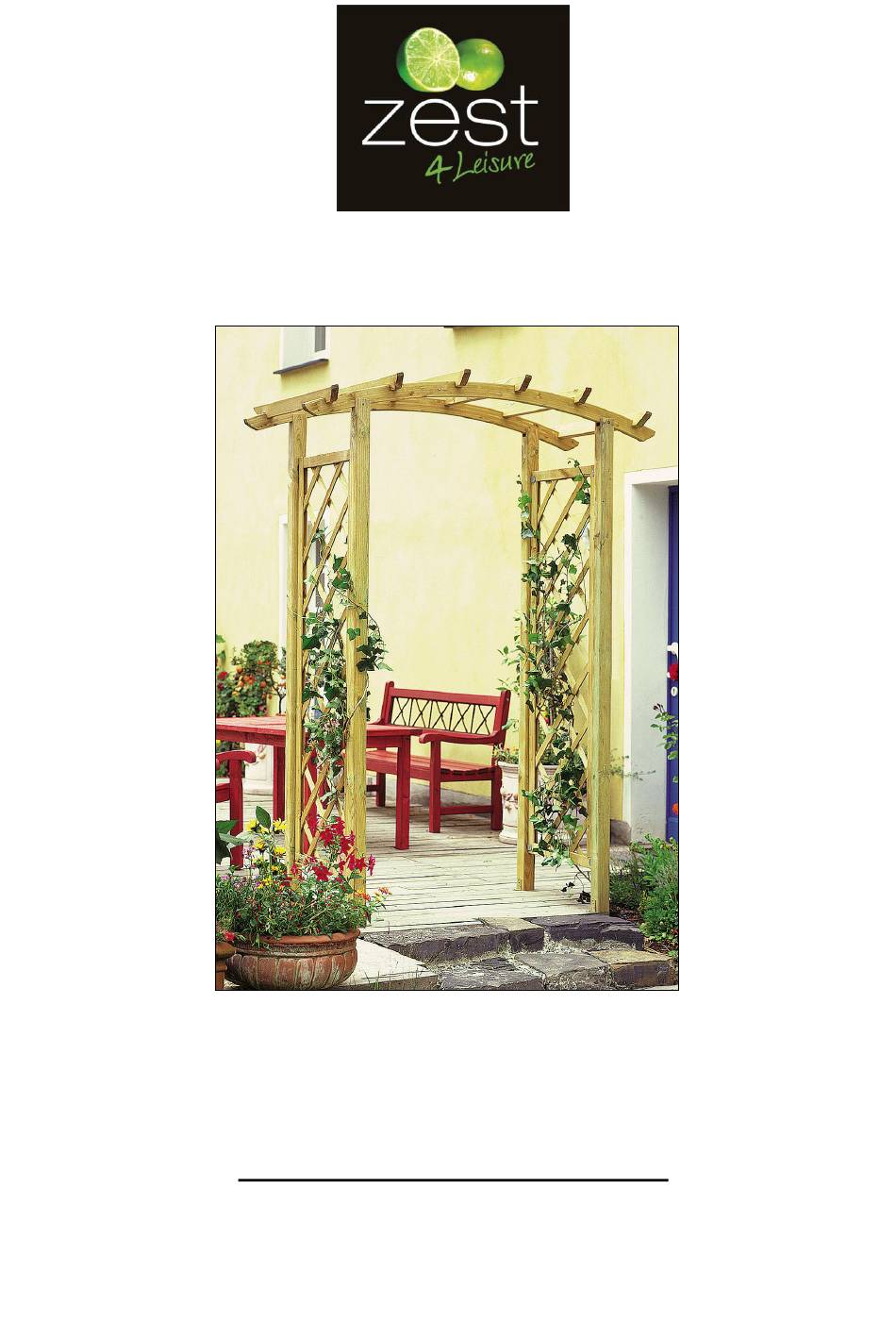

- Page 1 Assembly Instructions (W x D x H) 1.9m x 0.9m x 2.4m Product Name: Daria Arch PLEASE KEEP THIS INSTRUCTION Zest4Leisure 01352 752555 option 1 – sales@zest4leisure.co.uk...
- Page 2 Daria Arch Assembly Instructions Requires 2 person assembly. All screw holes to be pre-drilled. Tools required: Corded / Cordless Drill, Pozi-drive & Pillips Bits / Screwdriver, 3mm & 6mm Drill Bits, Tape Measure. Daria Arch Pack List Item Description Quantity...
- Page 3 Repeat stages 2 & 3 for remaining Posts and Trellis Panel. Locate post assembly onto Arch A (adjust width to suit) and fix in position using 4no 60mm Screws – 2no per Post (Figs.4a & 4b) Repeat procedure for remaining post assembly. Daria Arch is now complete.
- Page 4 www.zest4leisure.co.uk...
