Utp & Contact Port Pin Description - Commax CIOT-D20P User Manual

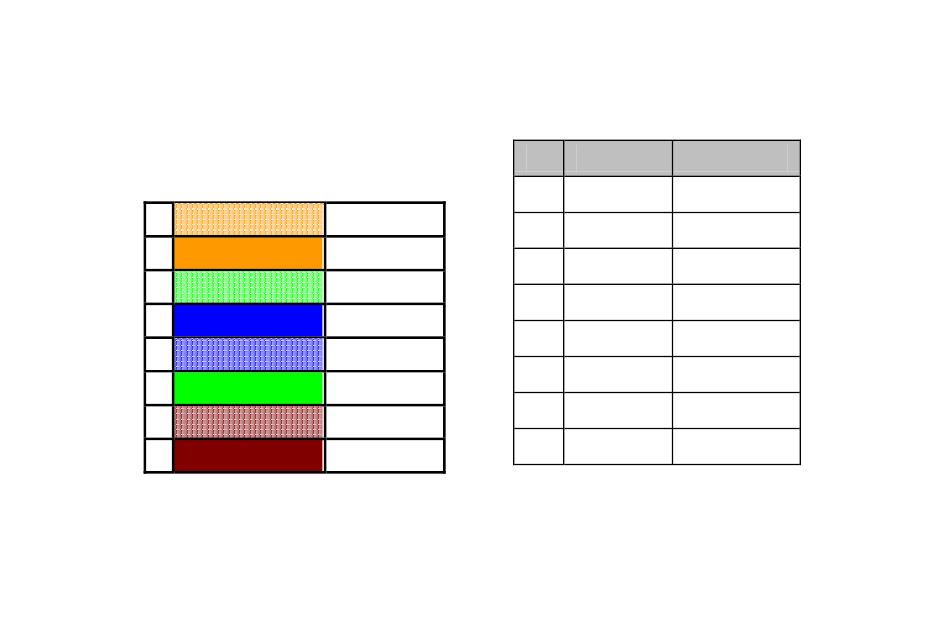

* UTP & Contact Port Pin description
1
2
3
4
5
6
7
8
No.
1
TX+
2
TX-
3
RX+
4
POE+
5
POE +
6
RX-
7
POE-
8
POE-
5
Color Contents
Red VCC 12V
Brown GND
Orange NC(1)
Yellow NO(1)
Green COM(1)
Blue NC(2)
Violet NO(2)
White COM(2)
