User Manual
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.

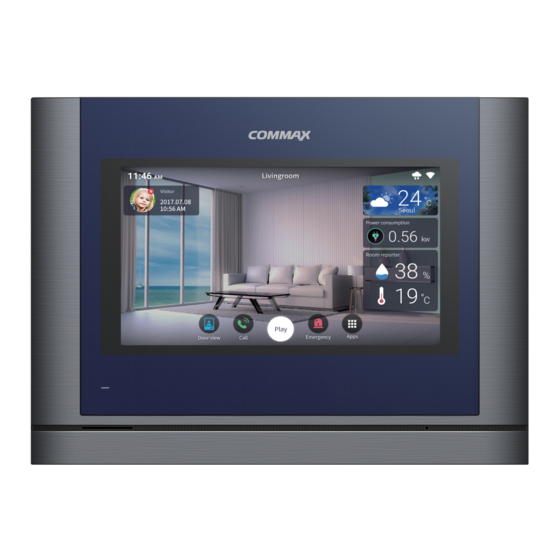

CIOT-700ML

Advertisement

loading
Need help?

Need help?

Do you have a question about the CIOT-700ML and is the answer not in the manual?

Questions and answers

Related Manuals for Commax CIOT-700ML

Summary of Contents for Commax CIOT-700ML

  • Page 1 User Manual CIOT-700ML • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.
  • Page 2 Warnings and caution ··········································· 2 1. Main funciton ·················································· 4 Basic Screen Configuration ································· 6 2. Home Screen ·················································· 9 Home Area ····················································· 9 2.1. Editing a space list ··································· 10 2.2. Widget area ··········································· 11 3. Application ··················································· 12 3.1.

  • Page 3: Safety Warning & Caution

    Safety Warning & Caution Please follow the things described below in order to prevent any danger or property damage. Prohibition. It may cause a serious damage or Warning No disassembly injury if violated. No touch Must follow strictly. Shows plugging out the power cord It may cause a minor damage or without an exception Caution...
  • Page 4 Warning If an abnormal sound, burning Please don’t disassemble, Please don’t insert any Please use only the designated smell or smoke is coming out repair or rebuild this product metallic or burnable materials batteries for the products of of the product, please plug out arbitrarily (please contact the into the ventilation hole.
  • Page 5 Function Description Display of widget type such as today's weather, indoor COMMAX temperature and humidity, smart plug electricity amount, Widget absence information Login and User subscription and login to use UC and Cloud Membership Support for space control / editing / addition to the main...
  • Page 6 Interlocked mobile phone (Smart devices are compatible with Android OS (4.4.1 or later), iOS (8.0 or later) Resolution Mobile phone Apple 1136x640 iPhone5s 1920x1080 iPhone6 1334x750 iPhone6s 1920x1080 iPhone6 Plus 1334x750 iPhone7 Android 1920x1080 Nexus5x 2048x1536 Nexus9 2560x1440 Galaxy Note 2560x1440 GalaxyS5 edge...
  • Page 7 CIOT-700ML Touch screen T-FLASH SPEAKER 7~10 Not Use POWER LED POE-(LAN) POWER S/W T h e m o v i n g o f s c r e e n f o r using scrolling...
  • Page 8 The navigation bar of home screen bottom Go to home screen Go back Volume control Home screen bottom setting bar...
  • Page 9 IPsetting Go to wired network IP setting Door Go to IP Door Camera registration registration User Go to user registration registration Wall pad Go to wall pad setting settings OS setting Go to OS setting...
  • Page 10 View the door View the door camera camera dial Dial key for call Door, network, membership status display Device status Icons is displayed during abnormal operation all Apps All App list Emergency User Emergency button button...
  • Page 12 Provide a summary of our home environment and external environment information at present Press empty space on background screen for one second. Press widget . Select and drag the widget you want to display on the background To delete a widget, press the widge tlonger and move it to the upper trash.
  • Page 13 [Monitoring Screen] Press ① button to end the door monitoring. Press ② button to save video.
  • Page 14 " ④ ③ [Call connection Screen] call. Start Call / Open Door ③ Save video ④ Adjust call volume Monitor and call from door camera Click on the door entrance icon in the Quick Menu. You can monitor the door entrance by pressing the 'door entrance' button.

  • Page 15: Open The Door

    Open the door When the call comes in and the call button is pressed, the door open button appears. Press the door open button to open the door. Saving the image of our house / common entrance visitor When you press the save video button during a call, the icon changes to and video recording starts Once you click the save button again, the image will be saved.

  • Page 16: Call House

    Call house Press dial on background . You can call by entering the number of builidng and household or pressing the button of guard station and office [Display for Call log] When you click icon at the top of screen, you can delete the call log.
  • Page 17 CCTV CCTV monitoring and save the image monitoring Occur Occur emergency on urgent situation emergency...
  • Page 19 ⑥ [CCTV menu display] ① CCTV Display ⑤ Favorites ② Move to the next display ⑥ Seleted lists ③ Move to the previous display ⑦ List of favoirtes ④ Channal list ⑧ Check the saved image Click the channel list(④) you can see the CCTV list(⑥) on the display. Click the CCTV list, you can see the image of CCTV(①).
  • Page 20 Checking visitor Check the saved image of enterence or lobby Check the saved image of enterence or lobby [Display for saved image] Delete Delete the saved image With icons, you can check the location of saved movie clip. Enterence Movie clip from enterence Lobby Movie clip from lobby Missed Call...
  • Page 21 You can check the time and date of saved movie clip from the enterence or lobby. Click the ‘Delete’ button. Click the individual movie clip or “All movie clip’ for the selection. To un-select the movie clip, click that icon again. Click “Delete”...
  • Page 22 Calculator Calculation Set the alarm and time Clock Sign up / Edit / Initialization Sign up Wallpad setting Setting for wallpad Android setting OS setting Brower Internet brower...
  • Page 23 You can use it for calculation. [Display for calculation] This is the web brower for internet.
  • Page 24 Sign up / Edit / Initialization Enter ‘ID’ and clikc ‘Duplication check’. Select the living country. Enter ‘Passward’, ‘Retype Passward’ and click ‘Registration’. [Display for Sign-up] If you have already siged up, you can see the current ID on the display. You can change the passward to click ‘P/W change’...
  • Page 25 You can set the user information, wallpad, controlling devices, Door camera and other devices. Click “Wallpad setting” icon, you can see the display. [Display for Wallpad setting] You can set the SIP server, call number of guard station and passwords for wallpad.
  • Page 26 - You can set wallpad using Maset or Slave - If wallpad sets Slave, input IP of Master wallpad and select Slave number (501 ~ 510) ※ If you are a member of COMMAX, you need to initialize the member information before setting it as Slave.
  • Page 27 Enter the new password. Re-enter the same password. If passwords are same, it has been changed. ※ Initial password is 1234. You can change the building & household number. ※ If you change those number, you need to reboot the wallpad. You can change the number for guard station.
  • Page 28 You can register IP door camera. 1) Click “Door Camera Setting”, push the button of door camera for 5 seconds, the camera image will be displayed automatically. Click “Camera Preview”, you can check the image of door camera.
  • Page 29 Click ‘Registeration’ button, the door camera will be registered to wallpad automatically. You can change the name of door camera to click “Edit” button. You can register IP type CCTV camera. Click “CCTV camera register’ button, you can see the list of CCTV camera on the display..
  • Page 30 Clikc “Register” button, that CCTV camera will be registered. Click “Edit” button, you can change the name of CCTV camera.
  • Page 31 You can adjust the calling functions. The menu is as below. Continuous call time : You can select the call time between 30 sec ~ 3 min. Video recording time : You can select the recording time between 10 sec ~ 60 sec.
  • Page 32 You can select the ringtone from connected devices. Select the place and select the ringtone. (Preview for ringtone) Click the ‘Confirm’ button, the ringtone has been selected. You can check the information of systems such as versions of S/W.
  • Page 35 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2018.05.104...
