Operator's Manual

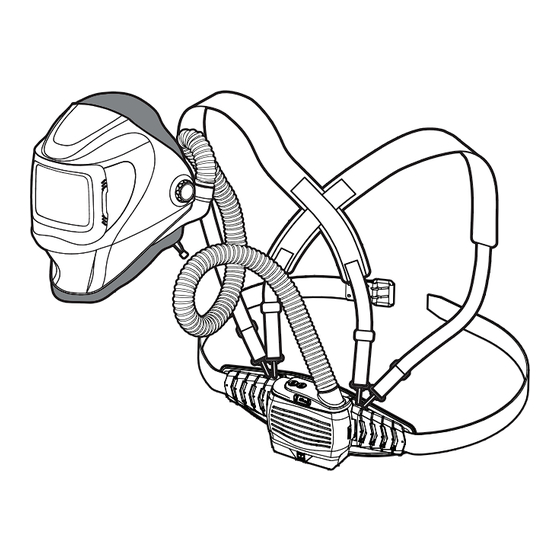

VIKING PAPR FGS 3250D
WELDING HELMET
POWERED AIR-PURIFYING RESPIRATOR (PAPR)
WITH FGS 3250D AUTO-DARKENING HELMET
Register your machine:
www.lincolnelectric.com/register
Authorized Service and Distributor Locator:
www.lincolnelectric.com/locator
Save for future reference
Date Purchased
K#: (ex: K3930-1)
Serial: (ex: U1060512345)
IM10524
| Issue D ate Dec-18
© Lincoln Global, Inc. All Rights Reserved.
PRODUCT NUMBER:
K4550-1
K4550-3
WARNING:
Users must read and understand the
user instructions prior to use. Use of this respirator
by untrained or unqualified people, or use that is not
in accordance with these user instructions, may
adversely affect respirator performance and may
be dangerous to your health. Keep this operator's
manual for future reference.
Advertisement
Table of Contents
Related Manuals for Lincoln Electric VIKING 3250D
Summary of Contents for Lincoln Electric VIKING 3250D
- Page 1 Operator’s Manual VIKING PAPR FGS 3250D WELDING HELMET POWERED AIR-PURIFYING RESPIRATOR (PAPR) WITH FGS 3250D AUTO-DARKENING HELMET PRODUCT NUMBER: K4550-1 K4550-3 WARNING: Users must read and understand the user instructions prior to use. Use of this respirator by untrained or unqualified people, or use that is not in accordance with these user instructions, may adversely affect respirator performance and may be dangerous to your health.
-
Page 2: Safety Warnings - Read Before Using
SAFETY SAFETY WARNINGS – READ BEFORE USING Refer to http: //www.lincolnelectric.com/safety for additional safety information. FUMES AND GASES can be dangerous to your health The Viking PAPR 3350 respirator components and filtration • Fumes from the normal use of welding media must be used only in configurations listed on the NIOSH products contain significant quantities of approval label. - Page 3 THANK YOU FOR SELECTING A QUALITY PRODUCT BY KEEP YOUR HEAD OUT OF THE FUMES. DON’T get too close to the arc. LINCOLN ELEC TRIC. Use corrective lenses if necessary to stay a reasonable distance away from the arc. READ and obey the Safety Data PLEASE EXAMINE CARTON AND EQUIPMENT FOR Sheet (SDS) and the warning label DAMAGE IMMEDIATELY...
- Page 4 W117.2-1974. A Free copy of “Arc Welding Safety” booklet E205 is available from the Lincoln Electric Company, 2.d. All welders should use the following procedures in order to 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199.
-
Page 5: Electric Shock Can Kill
SAFETY ELECTRIC SHOCK ARC RAYS CAN BURN. CAN KILL. 3.a. The electrode and work (or ground) circuits are 4.a. Use a shield with the proper filter and cover plates to protect your electrically “hot” when the welder is on. Do eyes from sparks and the rays of the arc when welding or not touch these “hot”... - Page 6 SAFETY WELDING AND CUTTING CYLINDER MAY EXPLODE IF SPARKS CAN CAUSE DAMAGED. FIRE OR EXPLOSION. 7.a. Use only compressed gas cylinders containing the correct shielding gas for the process used 6.a. Remove fire hazards from the welding area. If and properly operating regulators designed for this is not possible, cover them to prevent the welding sparks the gas and pressure used.
- Page 7 TABLE OF CONTENTS...
-
Page 8: Niosh Cautions And Limitations
VIKING PAPR FGS 3250D WELDING HELMET NIOSH CAUTIONS AND LIMITATIONS L – Follow the manufacturer’s User’s Instructions for changing A – Not for use in atmospheres containing less than 19.5% cartridges, canister and/or filters. oxygen. M – All approved respirators shall be selected, fitted, used, and B –... -
Page 9: Battery Operation
VIKING PAPR FGS 3250D WELDING HELMET BATTERY OPERATION WARNING Battery Safety • Keep battery away from fire or heat as this may cause the battery to explode and may result in serious injury or death. • Battery should be charged with supplied Li-ion charger only. -
Page 10: Installing Battery Pack
VIKING PAPR FGS 3250D WELDING HELMET INSTALLING BATTERY PACK FIGURE 2 Blower Unit Battery Pack Latch Slide battery pack into blower unit just below filter cover until battery pack latch snaps into position. It is very important that the battery pack snaps into position. -
Page 11: Filter Installation
VIKING PAPR FGS 3250D WELDING HELMET FILTER INSTALLATION WARNING Filter Safety • Do not use the respirator without the spark screen, pre- filter, and the HE particulate filter (HEPA) installed. The NIOSH approval of this PAPR is with the spark screen, pre-filter and HE particulate filter installed using respirator without any of these items is not in accordance with NIOSH approval and may be dangerous to your... - Page 12 VIKING PAPR FGS 3250D WELDING HELMET BREATHING TUBE INSTALLATION WARNING Breathing tube safety • Be sure breathing tube is properly installed or non- filtered air may enter the helmet. • Be sure o-ring is properly installed on tube connector and there are no visible signs of cuts or tears on o-ring.
-
Page 13: Shoulder Strap Installation
VIKING PAPR FGS 3250D WELDING HELMET SHOULDER STRAP INSTALLATION Connect hooks (4 total) on shoulder strap assembly to belt attachment points as shown. FIGURE 5 Shoulder Strap Assembly Hook Belt Attachment Location... - Page 14 VIKING PAPR FGS 3250D WELDING HELMET RESPIRATOR CONTROLS FIGURE 6 WARNING Respirator Use If an alarm sounds or the blower vibrates, leave the work area immediately. Do not remove the respirator until you are in a safe area. Starting the Respirator Press ON button for 1 to 2 seconds until the blower is activated.
- Page 15 VIKING PAPR FGS 3250D WELDING HELMET AIR FLOW ALARM OPERATION Air Flow Alarm • The control system of the blower unit maintains the air flow rates consistently throughout the operating time. If the air flow alarm is activated, the filter may need to be replaced and/or breathing tube has become blocked.
-
Page 16: Preparing For Use
VIKING PAPR FGS 3250D WELDING HELMET PREPARING FOR USE FIGURE 9 Breathing Tube Check for Alarms Blower Assembly Battery Before using Respirator – Check the Following Items 1. Blower Assembly • Verify the air filter is proper for application and is NIOSH approved for use with this respirator. - Page 17 VIKING PAPR FGS 3250D WELDING HELMET DONNING PROCEDURE FOR RESPIRATOR WARNING WARNING Respirator Maintenance And Storage Respirator Safety • Replace damaged or dirty air filters. Filters cannot be • Do not enter a hazardous area until you are sure the washed or cleaned with compressed air.
- Page 18 VIKING PAPR FGS 3250D WELDING HELMET TROUBLE SHOOTING GUIDE FOR RESPIRATOR PROBLEMS POSSIBLE RECOMMENDED (SYMPTOMS) CAUSE COURSE OF ACTION No air flow to helmet from blower. 1. Blower not ON. 1. Press ON button. 2. Battery not charged. 2. Charge battery. 3.
-
Page 19: Helmet Information
VIKING PAPR FGS 3250D WELDING HELMET AUTO-DARKENING HELMET SECTION HELMET INFORMATION This auto darkening welding helmet with integrated clear face shield is an all-in-one solution for welding, cutting and grinding. It is designed to provide protection from harmful UV and IR radiation from welding/cutting process with the lens flip down, and help protect against flying particles from grinding with the lens flip up. - Page 20 VIKING PAPR FGS 3250D WELDING HELMET AUTO-DARKENING LENS SPECIFICATIONS Optical Class 1/1/1/1 with 4C™ Technology LCD Viewing Area 74 × 106 mm (2.91 x 4.17in.) Arc Sensors Light State Shade DIN 4 Grind State DIN 4 Cutting Shades 5 to 8 Variable Welding Shades 9 to 13 Shade Control...
- Page 21 VIKING PAPR FGS 3250D WELDING HELMET OPERATING INSTRUCTIONS Headgear Adjustment FIGURE 1 - View of headgear with shell, sweatband, headcovering and air inlet removed for clarity HEAD SIZE ADJUSTMENT: HEADGEAR TIGHTNESS is adjusted by pushing in the Ratchet Knob and turning to adjust for the desired head size. This knob is located at the back of the helmet.
-
Page 22: Mode Control
VIKING PAPR FGS 3250D WELDING HELMET CARTRIDGE OPERATION/FEATURES ON/MODE Button • ON-OFF (Lens will automatically darken when arc is present) The Shade Cartridge will automatically turn on, the digital display control will activate and helmet will be ready for use. It is recommended that the user review helmet settings prior to use. - Page 23 VIKING PAPR FGS 3250D WELDING HELMET Variable Shade Control FIGURE 4 After turning on the lens, press the "FUNC" button GRIND CUTTING WELD 5 5 7 MODE to choose “SHADE”, 4/5-8/9-13 TM 1/1/1/1 CSA Z94.3 / FUNC TM Z87W4/5-8/9-13 adjust lens shade DELAY SENS.
- Page 24 VIKING PAPR FGS 3250D WELDING HELMET Delay Control FIGURE 6 Press "FUNC" button to choose "DELAY", GRIND CUTTING WELD 5 5 7 MODE 4/5-8/9-13 TM 1/1/1/1 begin lens delay CSA Z94.3 / FUNC TM Z87W4/5-8/9-13 adjustments. Use the DELAY SENS. SHADE Lens Delay Control "UP"...
-
Page 25: Helmet Care And Maintenance
VIKING PAPR FGS 3250D WELDING HELMET HELMET CARE AND MAINTENANCE Cleaning: Clean helmet by wiping with a soft cloth. Clean cartridge surfaces regularly. Do not use strong cleaning solutions. Clean sensors and solar cells with soapy water solution and a clean cloth and wipe dry with a lint-free cloth. Do NOT submerge shade cartridge in water or other solution. - Page 26 VIKING PAPR FGS 3250D WELDING HELMET...
- Page 27 VIKING PAPR FGS 3250D WELDING HELMET Installing Aftermarket Side Window Cover Simply cover the Side Window with Side Window Cover, make sure the covers are line up with the lens. Installing Aftermarket Magnifying Lens Simply slide the magnifying lens into the short rail located on the sides of ADF holder per Figure 13.
-
Page 28: Troubleshooting Guide
VIKING PAPR FGS 3250D WELDING HELMET TROUBLESHOOTING GUIDE Test your shade cartridge prior to welding by directing the front of the cartridge toward a bright source of light. Then, using your fingers, rapidly cover and uncover the sensors. The cartridge should darken momentarily as the sensor is exposed. - Page 29 VIKING PAPR FGS 3250D WELDING HELMET SHADE GUIDE SETTING If your helmet does not include any one of the shades referenced above, it is recommended you use the next darker shade.
-
Page 30: Warranty Information
VIKING PAPR FGS 3250D WELDING HELMET WARRANTY INFORMATION WARRANTY INFORMATION: Reference IMWS1 included in Literature. SPATTER DAMAGE IS NOT COVERED BY WARRANTY: Do not use this product without the correct protective clear lenses installed properly on both sides of the Auto-Darkening Lens. The clear lenses supplied with this helmet are properly sized to work with this product and substitutions from other suppliers should be avoided. - Page 31 9SS32652-10 FRONT LENS HOLDER 9SS32652-3 GRIND SHIELD LENS HOLDER KP4473-1 FGS VIKING PAPR - HEADCOVERING KP4474-1 PAPR VIKING 3250D FGS HELMET ASSEMBLY KP3944-1 PAPR VIKING BLOWER ASBLY KP3937-1 PAPR VIKING BATTERY PACK 8 HR KP3938-1 PAPR VIKING BATTERY PACK EXTENDED...
