PR Housewares CONCEPT HOUSWARES PR-40322 Manual

Assembly:

To install, you will need the following:
- Level, pencil and tape measure
- Phillips head screw driver and a standard or
flat head screwdriver
- Hammer
- Electric drill and 5/16 drill bit

Parts:

- Main unit (See Photo – A)
- Pan hooks, PR-41208 (See Photo –B)
- Package of 2 wall brackets and flat bar. (See Photo – C)
- Package of 4 wall screws and 4 plastic anchors and
plastic key (See Photo – D)
Please consult with your local hardware store if you have any
questions or concerns about the construction of your walls or
ceilings. They can assist you in selecting the proper hardware
and procedures. The generic hardware provided will work for
most drywall applications. NOTE: these units are handmade,
slight variations can exist, always measure twice before
drilling.

Mounting Directions:

Undo the front facing screw on each bracket, (photo, E) insert
flat bar and replace screws. Note it may be necessary to use
the flat head screwdriver to hold back of screws while the
Phillips screwdriver is used on the front to tighten or loosen.
Then with rough frame work constructed use as a guide for
installation. Measure carefully where you want to mount the
rack on the wall use a pencil to mark where the screws attach
to the wall.
Remove the unit and drill holes using a 5/16" drill bit. When
possible mount to a wall stud. Supplied anchors have a pull
rating of 20 lbs. or more each and a shear rating of 50 lbs. each.
Insert the anchors into the drilled holes. They may need to be tapped
in gently with a hammer. Use the supplied key to expand the anchor
behind drywall. (See Photos F to J on next page for proper and
improper anchor install). Use supplied screws to attach.
Wall Mounted Wood Pot Racks
Models PR-40322, PR-40326
Concept Housewares, A Division of PR Housewares, LLC
www.prhousewares.com Email: info@prhousewares.com
and PR-49332
Page 1

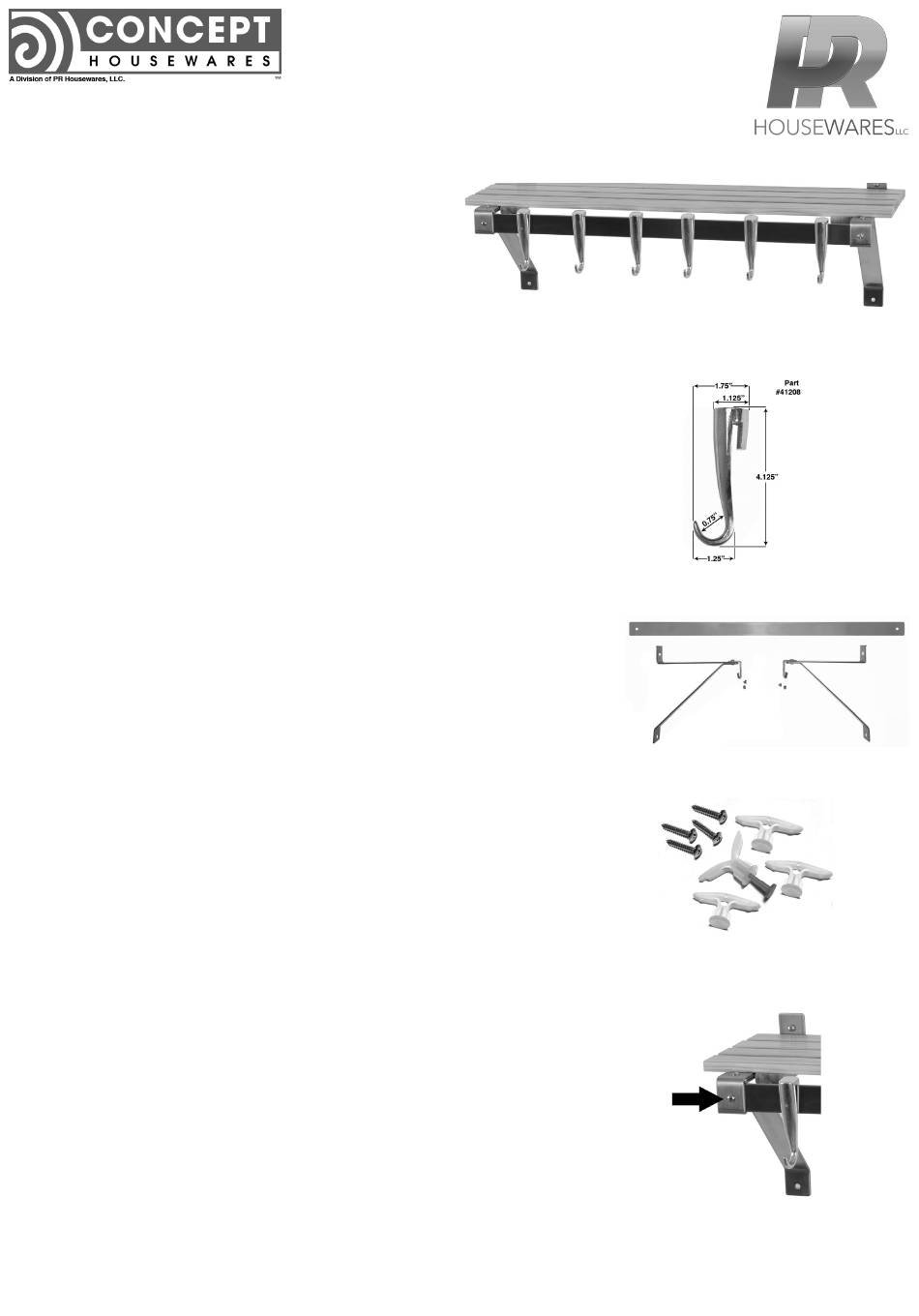

Photo A - Fully Assembled
Photo B - Pan Hooks
Photo C - Pan Hooks
Photo D - Wall screws, plastic
anchors and plastic key
Photo E - Front facing screw
