Frequently Asked Questions
Q1. [VRT-420N. VRT-402N] PPTP VPN setting:
A:

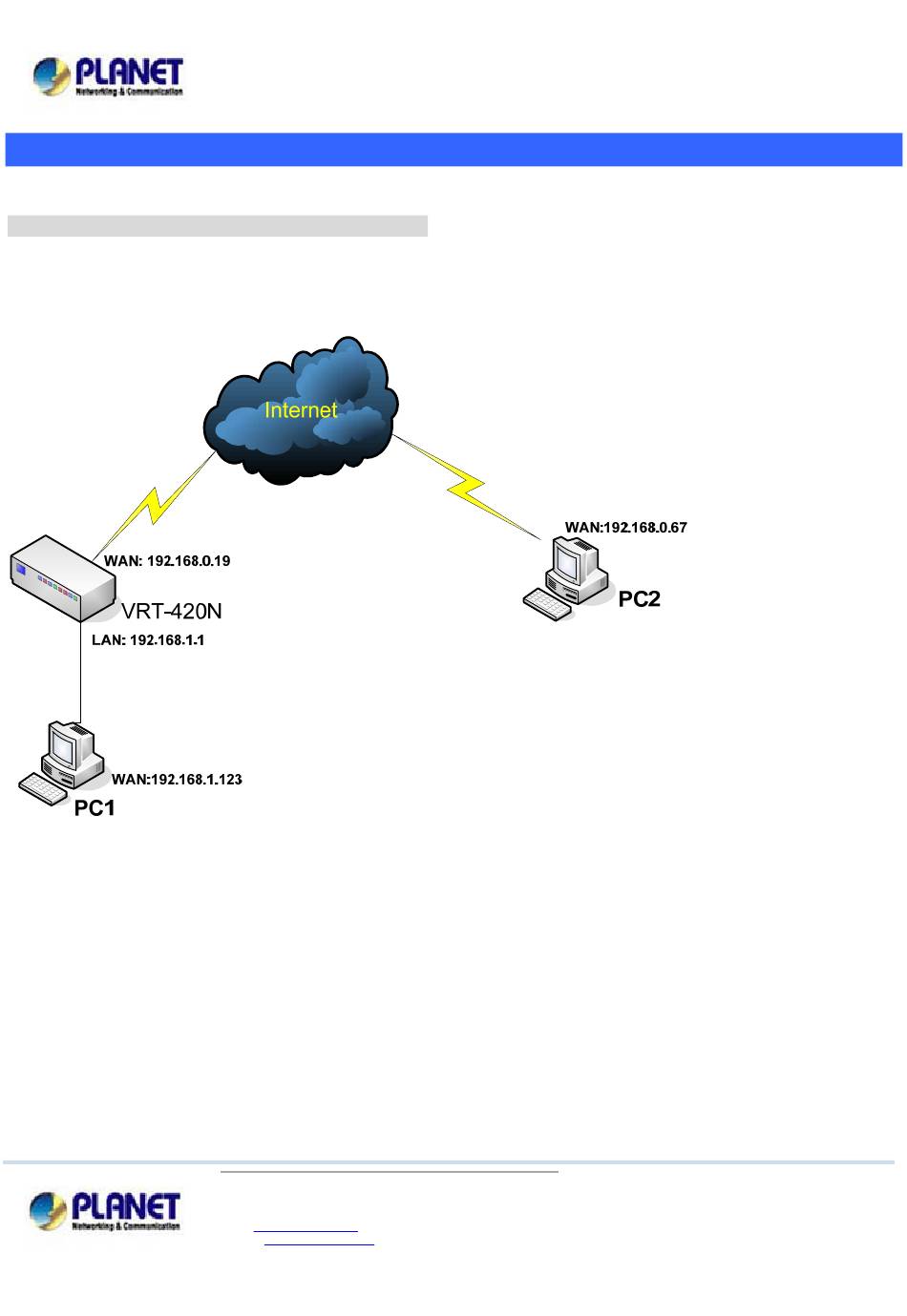

Our connection topology as follow:
VRT-420N:
WAN: 192.168.0.19
LAN: 192.168.1.1
PC1 connect to VRT-420N LAN: 192.168.1.123
PC2: 192.168.0.67
PLANET Technology Corporation
10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231,
Taiwan (R.O.C.)
Email:
support@planet.com.tw
Web
site:http://www.planet.com.tw
P l a n e t r e s e r v e s t h e r i g h t t o c h a n g e s p e c i f i c a t i o n s w i t h o u t p r i o r n o t i c e .
A l l b r a n d n a m e s a n d t r a d e m a r k s a r e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
C o p y r i g h t ( c ) 2 0 1 2 P L A N E T T e c h n o l o g y C o r p . A l l r i g h t s r e s e r v e d
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Planet Networking & Communication VRT420N
Summary of Contents for Planet Networking & Communication VRT420N
- Page 1 Frequently Asked Questions Q1. [VRT-420N. VRT-402N] PPTP VPN setting: Our connection topology as follow: VRT-420N: WAN: 192.168.0.19 LAN: 192.168.1.1 PC1 connect to VRT-420N LAN: 192.168.1.123 PC2: 192.168.0.67 PLANET Technology Corporation 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, P l a n e t r e s e r v e s t h e r i g h t t o c h a n g e s p e c i f i c a t i o n s w i t h o u t p r i o r n o t i c e .
- Page 2 Step 1 : in VRT-420 Security / PPTP page, enable PPTP function. VPN start IP address is 192.168.39.1 VPN Start IP Address must start from 1( x.x.x.1), ex: our default VPN start IP 192.168.39.1 So if user re-define a VPN Start IP address not start with x.x.x.1 it make takes VPN connection issue. PLANET Technology Corporation 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, P l a n e t r e s e r v e s t h e r i g h t t o c h a n g e s p e c i f i c a t i o n s w i t h o u t p r i o r n o t i c e .
- Page 3 Step 2: in User Rule, add a new rule, user name/ password both “test” PLANET Technology Corporation 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, P l a n e t r e s e r v e s t h e r i g h t t o c h a n g e s p e c i f i c a t i o n s w i t h o u t p r i o r n o t i c e . A l l b r a n d n a m e s a n d t r a d e m a r k s a r e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
- Page 4 Step 3: in PC 2 network connection create a new VPN tunnel as follow. Step 4: enter New Connection wizard PLANET Technology Corporation 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, P l a n e t r e s e r v e s t h e r i g h t t o c h a n g e s p e c i f i c a t i o n s w i t h o u t p r i o r n o t i c e . A l l b r a n d n a m e s a n d t r a d e m a r k s a r e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
- Page 5 Step 5: select connect to network at my workplace Step 6: select Virtual Private network connection PLANET Technology Corporation 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, P l a n e t r e s e r v e s t h e r i g h t t o c h a n g e s p e c i f i c a t i o n s w i t h o u t p r i o r n o t i c e . A l l b r a n d n a m e s a n d t r a d e m a r k s a r e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
- Page 6 Step 7: assign the name for this VPN connection PLANET Technology Corporation 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, P l a n e t r e s e r v e s t h e r i g h t t o c h a n g e s p e c i f i c a t i o n s w i t h o u t p r i o r n o t i c e . A l l b r a n d n a m e s a n d t r a d e m a r k s a r e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
- Page 7 Step 8: assign the VRT-420N WAN IP address for it. PLANET Technology Corporation 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, P l a n e t r e s e r v e s t h e r i g h t t o c h a n g e s p e c i f i c a t i o n s w i t h o u t p r i o r n o t i c e . A l l b r a n d n a m e s a n d t r a d e m a r k s a r e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
- Page 8 Step 9: assign the user name/password we create in VRT-420N PLANET Technology Corporation 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, P l a n e t r e s e r v e s t h e r i g h t t o c h a n g e s p e c i f i c a t i o n s w i t h o u t p r i o r n o t i c e . A l l b r a n d n a m e s a n d t r a d e m a r k s a r e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
- Page 9 Step 10: after connection to VPN in VRT-420N, you will see the PC2 have a new ip address 192.168.39.1 Step 11: from PC 2 you can ping PC 1 successfully, that means your PC2 PPTP VPN already connected. PLANET Technology Corporation 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, P l a n e t r e s e r v e s t h e r i g h t t o c h a n g e s p e c i f i c a t i o n s w i t h o u t p r i o r n o t i c e .
