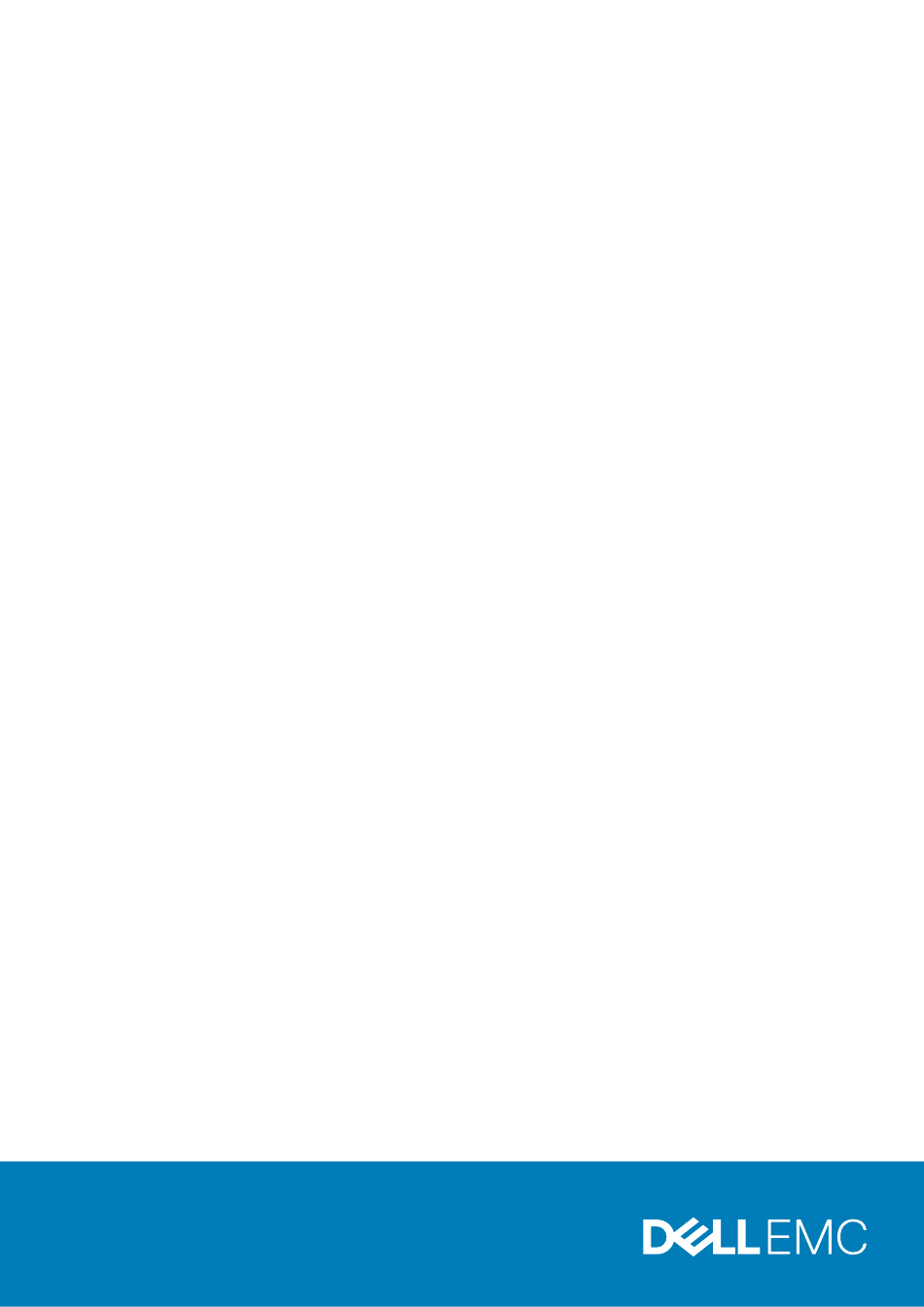

- Page 1 Latitude 5410 Setup and specifications guide Regulatory Model: P98G Regulatory Type: P98G007...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents 1 Set up your computer........................5 2 Create a USB recovery drive for Windows..................7 3 Chassis overview..........................8 Display view.................................... 8 Left view....................................9 Right view....................................9 Palmrest view..................................10 Bottom view..................................11 Keyboard shortcuts................................11 4 Technical specifications......................13 Processors.....................................13 Chipset....................................13 Operating system................................. - Page 4 Updating BIOS on systems with BitLocker enabled....................34 Updating your system BIOS using a USB flash drive....................34 System and setup password..............................35 Assigning a system setup password........................... 35 Deleting or changing an existing system setup password..................36 7 Getting help..........................37 Contacting Dell..................................37 Contents...
-
Page 5: Set Up Your Computer
NOTE: To conserve battery power, the battery might enter power saving mode. 2. Finish Windows system setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: • Connect to a network for Windows updates. - Page 6 SupportAssist. Dell Update Updates your computer with critical fixes and important device drivers as they become available. Dell Digital Delivery Download software applications including software that is purchased but not preinstalled on your computer. 4. Create recovery drive for Windows.
-
Page 7: Create A Usb Recovery Drive For Windows
A message appears, indicating that all data in the USB flash drive will be deleted. 7. Click Create. 8. Click Finish. For more information about reinstalling Windows using the USB recovery drive, see the Troubleshooting section of your product's Service Manual at www.dell.com/support/manuals. Create a USB recovery drive for Windows... -
Page 8: Chassis Overview
Chassis overview Topics: • Display view • Left view • Right view • Palmrest view • Bottom view • Keyboard shortcuts Display view 1. Array microphone 2. Camera shutter 3. Camera 4. Camera status light 5. Array microphone 6. Display 7. -
Page 9: Left View
Left view 1. DC-in port 2. USB 3.2 Gen2 (USB Type-C) port with DisplayPort/Power Delivery/Thunderbolt (optional) 3. USB 3.2 Gen1 Type-A port 4. Air vent 5. Smart card reader (optional) Right view 1. Micro SD card slot 2. Micro SIM card slot 3. -
Page 10: Palmrest View
Palmrest view 1. Power button with optional fingerprint reader 2. Keyboard 3. NFC/Contactless smartcard reader (optional) 4. Touchpad 5. TrackPoint Chassis overview... -
Page 11: Bottom View
Bottom view 1. Air vent 2. Service tag location 3. Speakers Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations. Table 2. List of keyboard shortcuts Keys Primary behavior Secondary behavior (Fn + Key) - Page 12 Keys Primary behavior Secondary behavior (Fn + Key) Fn + F6 F6 behavior Decrease brightness Fn + F7 F7 behavior Increase brightness Fn + F8 F8 behavior Switch to external display Fn + F10 F10 behavior Print screen Fn + F11 F11 behavior Home Fn + 12...
-
Page 13: Technical Specifications
Technical specifications Processors Table 3. Processors Description Values Processors 8th Generation 10th Generation 10th Generation 10th Generation 10th Generation Intel 10th Generation Intel Intel Core Intel Core Intel Core Intel Core Core i7-10610U Core i7-10810U i5-8365U i3-10110U i5-10210U i5-10310U Wattage 15 W 15 W 15 W... -
Page 14: Memory
Memory Table 5. Memory specifications Description Values Slots Two SoDIMM Type DDR4 Speed • 2666 Mhz operates at 2400 MHz for Intel 8th Generation • 3200 Mhz operates at 2667 MHz for Intel 10th Generation Maximum memory 32 GB Minimum memory 4 GB Configurations supported •... -
Page 15: Audio
Description Values Video • One HDMI 1.4b port • One DisplayPort 1.2 port over USB Type-C Power adapter port • 7.4 mm barrel-type • One PowerDelivery 3.0 port over USB Type-C Security One security-cable slot (wedge-shaped) Card slot microSD card slot SIM card uSIM card slot Table 8. -
Page 16: Camera
Table 11. Integrated graphics specifications Integrated graphics Controller External display support Memory size Processor Intel UHD Graphics • One HDMI 1.4b port Shared system memory • 8th Generation Intel Core i5 • One USB 3.1 Gen2 Type-C port with DisplayPort Alt Mode/Thunderbolt 3 •... -
Page 17: Media-Card Reader
Description Values Wireless standards • WiFi 802.11a/b/g • WiFi 802.11a/b/g 802.11ac • WiFi 802.11a/b/g • WiFi 802.11a/b/g • Wi-Fi 4 (WiFi • Wi-Fi 4 (WiFi • Wi-Fi 4 (WiFi • Wi-Fi 4 (WiFi 802.11n) 802.11n) 802.11 n) 802.11 n) • Wi-Fi 5 (WiFi •... -
Page 18: Touchpad
Touchpad Table 17. Touchpad specifications Description Values Resolution: Horizontal 1221 Vertical Dimensions: Horizontal 101.70 mm (4.00 in.) Vertical 55.20 mm (2.17 in.) Power adapter Table 18. Power adapter specifications Description Values Type 65 W 90 W 65 W Type-C 90 W Type-C Diameter (connector) 22 x 66 x 106 mm 22 x 66 x 130 mm... - Page 19 Dell Power using the Dell Power using the Dell Power duration, Manager application. Manager application. Manager application.
-
Page 20: Dimensions And Weight
Description Values intensive conditions. Dimensions and weight The following table lists the height, width, depth, and weight of your Latitude 5410. Table 20. Dimensions and weight Description Values Height: Front height 20.26 mm (0.8 in.) Rear height 21.18 mm (0.83 in.) Width 323.05 mm (12.72 in.) -
Page 21: Fingerprint Reader In Power Button
Standard Security Software Table 24. Security Software specifications Specifications Dell Client Command Suite Optional Dell Data Security and Management Software Dell Client Command Suite Dell BIOS Verification Optional Dell Endpoint Security and Management Software VMware Carbon Black Endpoint Standard VMware Carbon Black Endpoint Standard + Secureworks Threat Detection and Response... -
Page 22: Computer Environment
Specifications Dell Encryption Enterprise Dell Encryption Personal Carbonite VMware Workspace ONE Absolute® Endpoint Visibility and Control Netskope Dell Supply Chain Defense Computer environment Airborne contaminant level: G1 as defined by ISA-S71.04-1985 Table 25. Computer environment Description Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) -
Page 23: Software
Downloading Windows drivers Steps 1. Turn on the notebook. 2. Go to Dell.com/support. 3. Click Product Support, enter the Service Tag of your notebook, and then click Submit. NOTE: If you do not have the Service Tag, use the auto detect feature or manually browse for your notebook model. -
Page 24: System Setup
Boot menu Press <F12> when the Dell logo appears to initiate a one-time boot menu with a list of the valid boot devices for the system. Diagnostics and BIOS Setup options are also included in this menu. The devices listed on the boot menu depend on the bootable devices in the system. -
Page 25: Boot Sequence
Boot Sequence Boot sequence enables you to bypass the System Setup–defined boot device order and boot directly to a specific device (for example: optical drive or hard drive). During the Power-on Self-Test (POST), when the Dell logo appears, you can: •... -
Page 26: System Information
Option Description Date/Time Allows you to set the date and time settings. Changes to the system date and time take effect immediately. System information Table 27. System Configuration Option Description Integrated NIC Allows you to configure the on-board LAN controller. •... -
Page 27: Video
Option Description • Disabled • • Bright-enabled by default Keyboard Backlight Timeout on The Keyboard Backlight Timeout dims out with AC option. The main keyboard illumination feature is not affected. Keyboard Illumination will continue to support the various illumination levels. This field has an effect when the backlight is enabled. -
Page 28: Security
Security Table 28. Security Option Description Admin Password Allows you to set, change, and delete the admin password. System Password Allows you to set, change, and delete the system password. Internal HDD-2 Password This option lets you set, change, or delete the password on the system's internal hard disk drive (HDD). -
Page 29: Secure Boot
Option Description Admin Setup Lockout Allows you to prevent users from entering Setup when Admin password is set. This option is not set by default. Master Password Lockout Allows you to disable master password support Hard Disk passwords need to be cleared before the settings can be changed. -
Page 30: Performance
Option Description Enclave Memory Size This option sets SGX Enclave Reserve Memory Size Click one of the following options: • 32 MB • 64 MB • 128 MB—Default Performance Table 31. Performance Option Description Multi Core Support This field specifies whether the process has one or all cores enabled. -
Page 31: Post Behavior
Adaptive—enabled by default Configuration • Standard—Fully charges your battery at a standard rate. • ExpressCharge—The battery charges over a shorter time using Dell’s fast charging technology. • Primarily AC use • Custom If Custom Charge is selected, you can also configure Custom Charge Start and Custom Charge Stop. -
Page 32: Manageability
Option Description Fn Lock Options Allows you to let hot key combinations Fn + Esc toggle the primary behavior of F1–F12, between their standard and secondary functions. If you disable this option, you cannot toggle dynamically the primary behavior of these keys. -
Page 33: Wireless
Wireless Option Description Wireless Device Allows you to enable or disable the internal wireless devices. Enable • WLAN • Bluetooth All the options are enabled by default. Maintenance screen Option Description Service Tag Displays the Service Tag of your computer. Asset Tag Allows you to create a system asset tag if an asset tag is not already set. -
Page 34: Updating Bios On Systems With Bitlocker Enabled
3. Insert the USB flash drive into the system that requires the BIOS update. 4. Restart the system and press F12 when the Dell splash logo appears to display the One Time Boot Menu. 5. Using arrow keys, select USB Storage Device and click Enter. -
Page 35: System And Setup Password
Figure 1. DOS BIOS Update Screen System and setup password Table 32. System and setup password Password type Description System password Password that you must enter to log on to your system. Setup password Password that you must enter to access and make changes to the BIOS settings of your computer. -
Page 36: Deleting Or Changing An Existing System Setup Password
• Only the following special characters are allowed: space, (”), (+), (,), (-), (.), (/), (;), ([), (\), (]), (`). 3. Type the system password that you entered earlier in the Confirm new password field and click OK. 4. Press Esc and a message prompts you to save the changes. 5. -
Page 37: Getting Help
About this task Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: Steps 1.
