AmpliVox 250 Series Instalaltion Manual

Mini acoustic booth

Advertisement

Quick Links

Installation Manual
250 Series Mini Acoustic Booth
AMPLIVOX
ltd
6 Oasis Park, Eynsham, Oxfordshire OX29 4TP (UK)
+44(0)1865 880426
+44(0)1865 880846
Tel:
Fax:
e-mail: sales@amplivox.ltd.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the 250 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for AmpliVox 250 Series

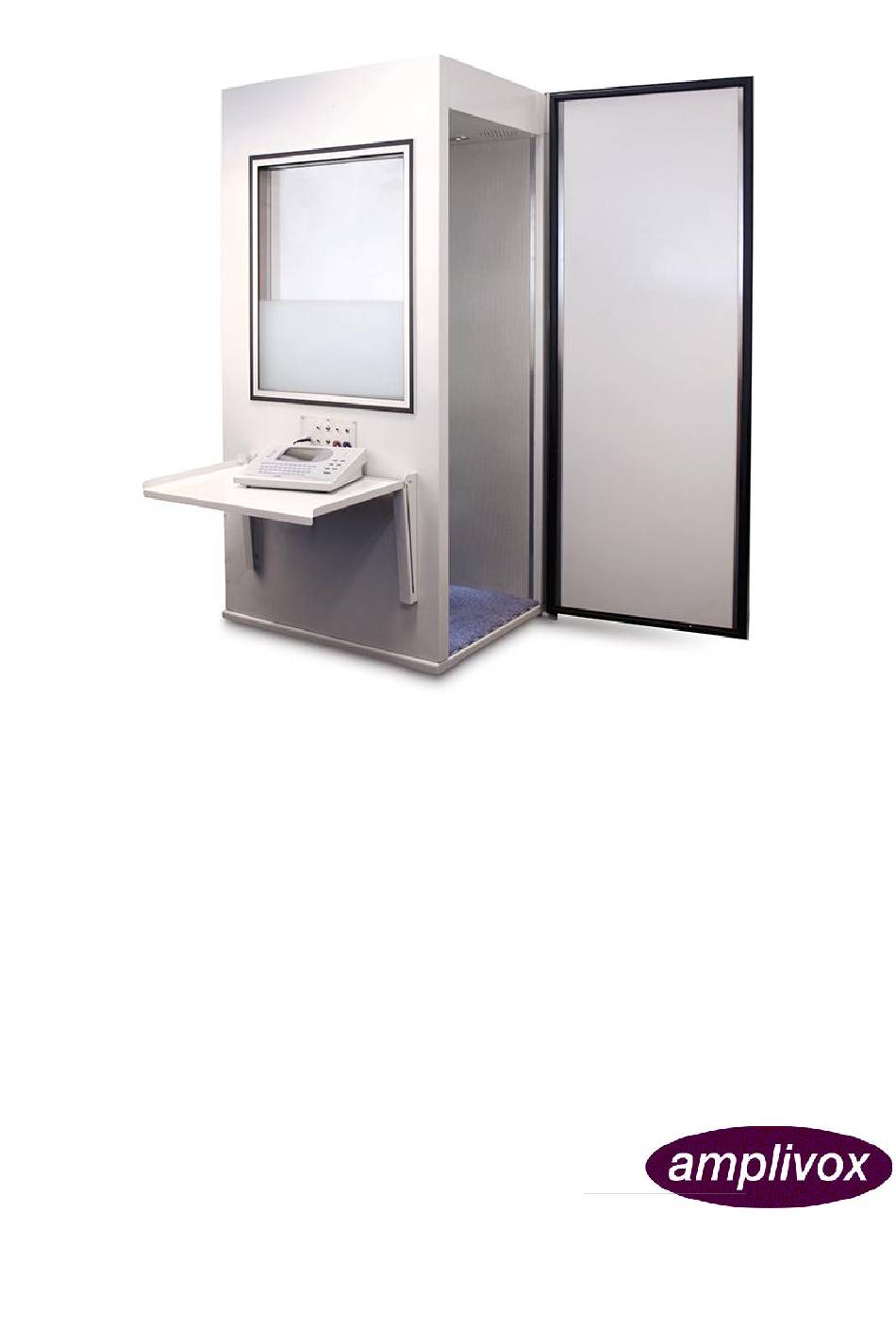

  • Page 1 Installation Manual 250 Series Mini Acoustic Booth AMPLIVOX 6 Oasis Park, Eynsham, Oxfordshire OX29 4TP (UK) +44(0)1865 880426 +44(0)1865 880846 Tel: Fax: e-mail: sales@amplivox.ltd.uk...
  • Page 2 Operation of the 250 Series Acoustic Booth Application The 250 Series Acoustic Booth is designed to provide a sound controlled environment for hearing testing. Location The booth should be located in a weatherproof ventilated environment. Operation 1. Once assembled the booth can be easily manoeuvred and positioned due to the casters on the base.
  • Page 3: Bill Of Materials

    List of Tools Required for Assembly Quantity 5mm Allen Key 13mm Socket and Driver 10mm Socket General Purpose Silicone Gun General Purpose X Head Screwdriver Should you have any items missing or have any queries please contact Amplivox Ltd on +44 (0) 1865 842 411.
  • Page 4 Stage 1 Fit 13.0mm x 3mm self adhesive gasket to Base Panel along the sides with bolt holes (avoiding all holes) Stage 2 Fit 6 off M8 Engineering Pins into the base of both side panels and rear panel (18 total)
  • Page 5 Stage 3 Fit Side Panel into base loosely fix using M8 Nyloc Nuts – do not fully tighten until the roof is fitted (final assembly) Manoeuvre side panel studs through base panel – perforated side on inside Stage 4 Fit Window Panel again loosely fix with M8 Nyloc Nuts - as above...
  • Page 6 Stage 5 Fit rear spar to both panels with M8 x 25 Hex Hd set screws (fully tighten) Stage 6 Run a continuous bead of silicon full length of inner corner (both panels)
  • Page 7 Stage 7 a) Fit rear panel by locating Engineering Pins through the base of unit using M8 Nyloc Nuts to fasten. b) Fix top of rear panel to support spar using M8 x 25 Hex Hd Screws Stage 8 Fit bottom door spigot bracket using M8 x 25 Hex Hd set screws...
  • Page 8 Stage 9 Stand booth up – we recommend the use of at least 3 persons. 2 to lift the booth and 1 to ensure the booth doesn’t run away on its casters once at an upright angle. Stage 10 a) Run a continuous bead of silicon along the top edge of the window panel, rear panel and opposite side panel.
  • Page 9 Stage 11 Ensure front seams of roof and sides are flush before fully tightening. Fully tighten all fixings top and bottom...
  • Page 10 Stage 12 Fit seat mounting brackets using M8 x 25 Hex Hd set screws Stage 13 Fit seat using M8 x 10 Hex Hd set screws...
  • Page 11 Stage 14 Fit door onto bottom spigot bracket...
  • Page 12 Stage 15 Fit top bracket into door bush, then fit bracket to top fixing points using an M8 x 25 Dome Hd socket screw with an M8 Shake Proof Washer. Ensure the door is square with the booth by adjusting the top and bottom brackets before tightening door bolts.
  • Page 13 Stage 17 a) Fit earth wire at rear using M8 x 25 Dome Hd screw and M8 Shake Proof Washer b) Fix front earth wire using M6 x 25 Hex Hd Bolt and M6 Shake Proof Washer Stage 18 Remove backing of double sided adhesive tape from the carpet and secure it to the floor of the booth.
  • Page 14 Stage 19 Fit coat hook using ¾ x 6 self tapping screws Fully Assembled IAC 250 Series Mini Sound Shelter...
