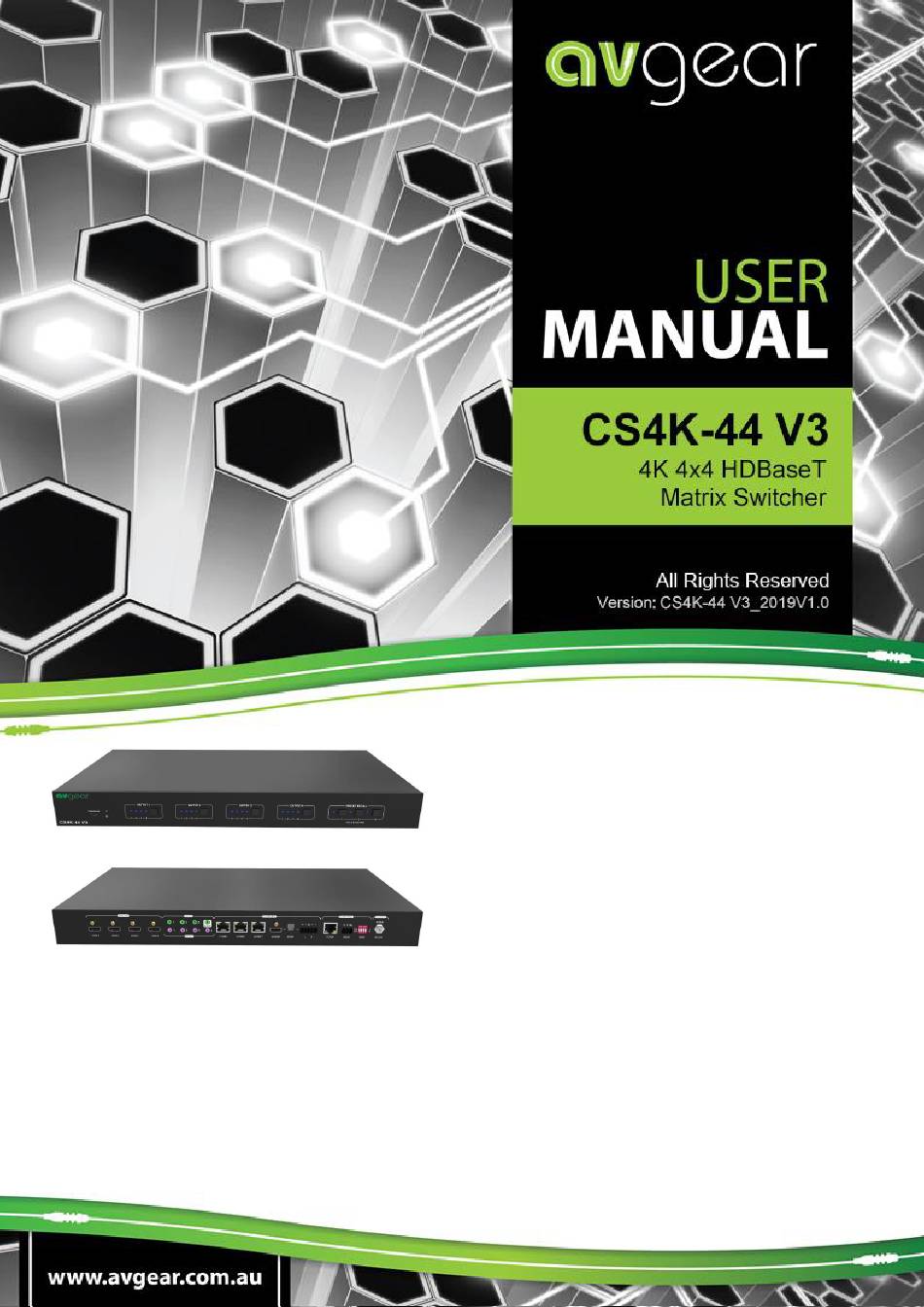

AVGear CS4K-44 V3 User Manual

CS4K-44 V3

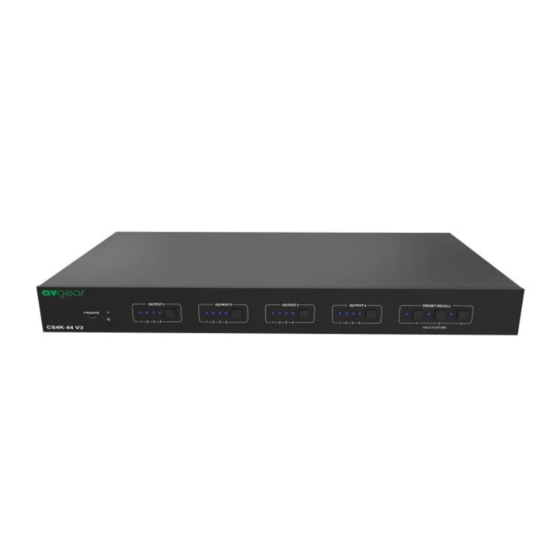

Thank you for choosing this 4K 4x4 HDBaseT Matrix with
3 Receivers. It features 4 HDMI inputs, 1 HDMI output
with audio breakout and 3 HDBaseT outputs. The de-
embedded audio can be output from SPDIF and L/R
connector. It supports video resolutions up to 4K@60Hz
4:4:4 and can transmit 4K video to distances up to 131
feet (40 meters) and 1080P video to distances up to 229
feet (70 meters) over a single CATx cable. It supports
bidirectional IR extension and IR, RS232, and TCP/IP
control options.
Features
▪ Supports HDMI resolutions up to
4K@60Hz 4:4:4, including 1080P
3D video
▪ Fully compliant with the HDMI 2.0
and HDCP 2.2 specifications
▪ Can transmit 4K signals to distances
up to 131 feet (40 meters) and
1080P signals to distances up to
229 feet (70 meters) over a single
CATx cable.
▪ Features three HDBaseT outputs
and includes three receivers.
▪ Supports the 24V PoC feature,
allowing the receivers to draw their
power from the matrix over the
CATx cable.
▪ Includes a local HDMI output with
corresponding digital optical S/PDIF
and stereo L/R analog outputs.
▪ Smart EDID management for
various applications and customised
settings.
▪ Controllable via RS232, IR and
TCP/IP.
