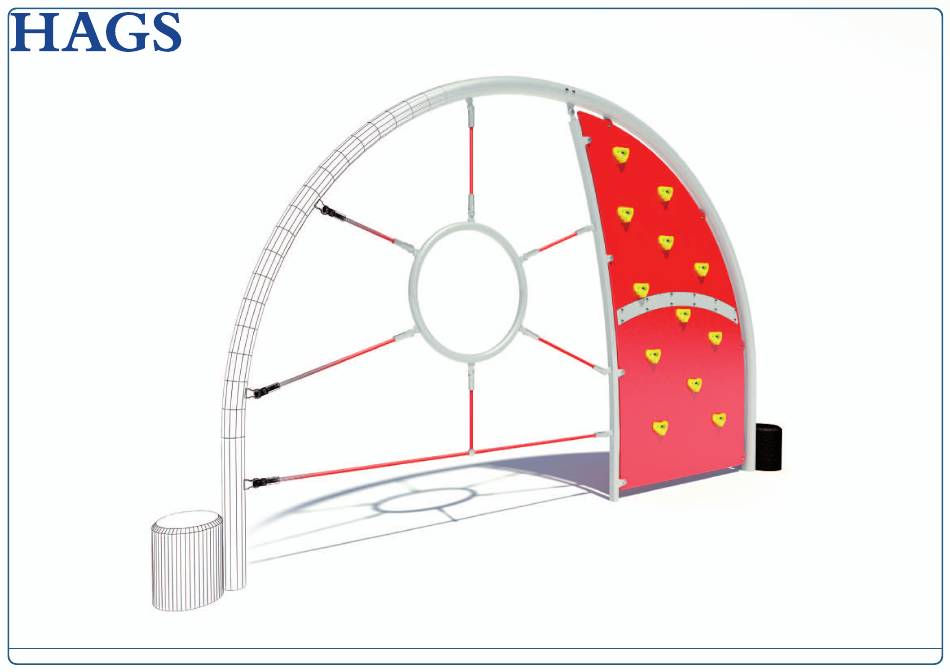

- Page 1 Installation Instructions NRG Bermuda Triangle NG223S & NG223B © Playpower Inc E-post:hags@hags.com www.hags.com NG223 Bermuda Triangle Issue F - 01/07/2014 1 / 12...
- Page 2 78803108 78803109 27 kg! 27 kg! 1 No 1 No Bermuda Triangle Board Arch Bermuda Triangle Rope Arch 78804035 10121030 TYPE 1 1 No 12 No NRG Arch Spiggot M10x30mm Resistorx 10291000 78804031 16 No 1 No TYPE 2 M10 Form ‘A’ Washer Tube Clear Silicone Sealant 803703 RYBL300...
- Page 3 78904012 78802016 23 kg! 1 No 24 No BT Base Climbing Board Yellow Climbing Grip 78803014 78805041 TYPE 1 1 No 1 No 515mm Long Rope Assembly Climbing Ring 78805043 78805042 1 No 1 No TYPE 2 476mm Long Rope Assembly 625mm Long Rope Assembly 78805039 78805038...
- Page 4 10121040 10931000 12 No 1 No M10x40mm Resistorx M10 Brass T-Nut TYPE 1 10391200 10121020 1 No 13 No M12 Shakeproof Washer M10x20mm Resistorx TYPE 2 10304010 Ø25mm 10941000 9 No 20 No M10 Form ‘C’ Washer M10 T-Nuts BZP TYPE 3 78804044 950104...
- Page 5 25 24 27 30 28 26 4 ! - NG223B - Verify ropes fit – remove before concreting TYPE 1 – Utilizar las cuerdas para verificar la distancia entre los postes - quitarlas antes de poner el hormigón – Utiliser les cordes pour vérifier la distance entre les poteaux - les retirer avant bétonnage TYPE 2 –...
- Page 6 1455 m³ 0.60 EN 1176-1 3500 NG223B TYPE 1 S2 (50mm) TYPE 2 ≥C20-25 7 x 24h LxWxH (m) 0.65 x 0.45 x 0.85 GB - Protect from concrete FR - Protéger contre le beton DE - Schutz vom Beton IT - Proteggere dal cemento ES - Proteger contra el hormigón LxWxH (m)
- Page 7 1455 m³ 0.51 3500 NG223S TYPE 3 S2 (50mm) TYPE 5 ≥C20-25 7 x 24h LxWxH (m) 0.65 x 0.45 x 0.75 GB - Protect from concrete FR - Protéger contre le beton DE - Schutz vom Beton IT - Proteggere dal cemento ES - Proteger contra el hormigón LxWxH (m) SE - Skyddas mot betong...
- Page 8 42 Nm! NG223 Bermuda Triangle Issue F - 01/07/2014 8 / 12...
- Page 9 GB - Protect from concrete FR - Protéger contre le beton DE - Schutz vom Beton IT - Proteggere dal cemento ES - Proteger contra el hormigón SE- Skyddas mot betong NG223 Bermuda Triangle Issue F - 01/07/2014 9 / 12...
- Page 10 NG223 Bermuda Triangle Issue F - 01/07/2014 10 / 12...
- Page 11 X 2 = T LxWxH (m) m³ m² EN1176 T = 8 hr H=2.4m 4.09 x 0.25 x 2.36 0.60 10 x 10 1625 7090 NG223 Bermuda Triangle Issue F - 01/07/2014 11 / 12...
- Page 12 TYPE 5 TYPE 3 1521 Grassmat Synthetic 5525 7139 8000 8000 NG223 Bermuda Triangle Issue F - 01/07/2014 12 / 12...
