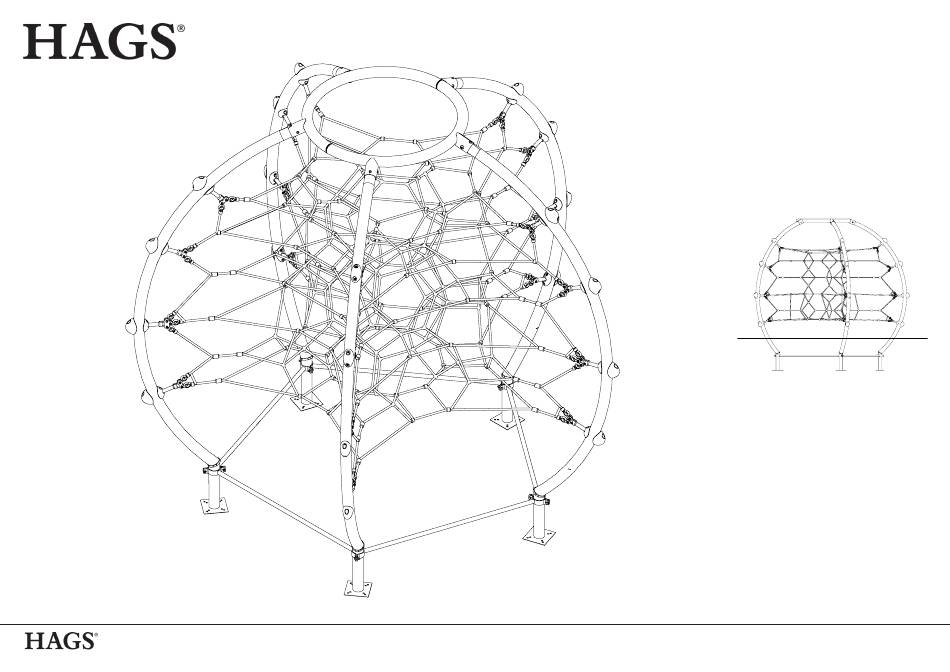

- Page 1 NRG Kebnekaise © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 www.hags.com...
- Page 2 8.0 x 8.0 M6x25-8.8-(ISO7380) 8027762 0.006 M16_C_Ø17 x Ø50 x 4_8.8 10391600 0.05 EN1176 2.2m 10121000 (TX45 / M10) 10120600 (TX30 / M6) 78704013 M16_Ø17 x 50 x 2_PTFE 0.008 © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 www.hags.com...
- Page 3 EN1176 2.2m 7.20m 283in 4.07m 160in R2.10m 38.5m² 83in 1.85m 73in © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 www.hags.com...
- Page 4 17 18 19 17 500mm 20in R1407mm R55in © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 www.hags.com...
- Page 5 144 - 3 144 - 5 500mm 20in © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 www.hags.com...
-
Page 6: Table Of Contents
(x8) Ø5.5mm 20mm (x2) (x2) (x2) 5.5-10 Nm (x2) 48kg © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 www.hags.com... - Page 7 FR - Ne pas serrer complètement DE - Nicht ganz festziehen IT - Non serrare completamente 0 Nm 8 & 14 SE - Dra inte åt helt PL - Nie w pełni dokręcaj © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 www.hags.com...
-
Page 8: X4 S10 S16
(x8) Ø5.5mm 20mm 14 - 16 © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 www.hags.com... -
Page 9: S22
FR - Ne pas serrer complètement (x2) DE - Nicht ganz festziehen IT - Non serrare completamente 0 Nm SE - Dra inte åt helt PL - Nie w pełni dokręcaj 48kg © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 www.hags.com... -
Page 10: X2)
450mm (x2) 318kg (x2) (x4) 0 Nm (x2) © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 10 / www.hags.com... - Page 11 ES - Apretar completamente FR - Serrer complètement DE - Ganz festziehen IT - Stringere completamente 20-25 Nm SE - Dra åt helt PL - Całkowicie dokręcić © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 11 / www.hags.com...
- Page 12 0.7m³ S2 (50mm) ≥C20-25 500mm 20in 7 x 24 © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 12 / www.hags.com...
- Page 13 = >150mm [>6in] b = ≤150mm [≤6in] ‘a’ ‘b’ 1180mm 47in © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 13 / www.hags.com...
- Page 14 (x2) (x2) x 20 x 20 (x2) (x2) 0 Nm © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 14 / www.hags.com...
- Page 15 75kg 20-25 Nm x 20 0 Nm x 20 © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 15 / www.hags.com...
- Page 16 GB - Tighten Completely ES - Apretar completamente FR - Serrer complètement DE - Ganz festziehen IT - Stringere completamente SE - Dra åt helt PL - Całkowicie dokręcić © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 16 / www.hags.com...
- Page 17 20 © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 17 / www.hags.com...
- Page 18 (x2) (x2) (x2) (x2) 5.5-10 Nm © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 18 / www.hags.com...
- Page 19 A ~ EN 1176 144 - 5 144 - 3 7500 6576 4500 1500 1379 2594 3750 3700 3194 1119 5433 7405 40.0m² 53.3m² © Playpower inc NRG Kebnekaise Rev: 02 hags@hags.com 78701002 23/02/21 19 / www.hags.com...
