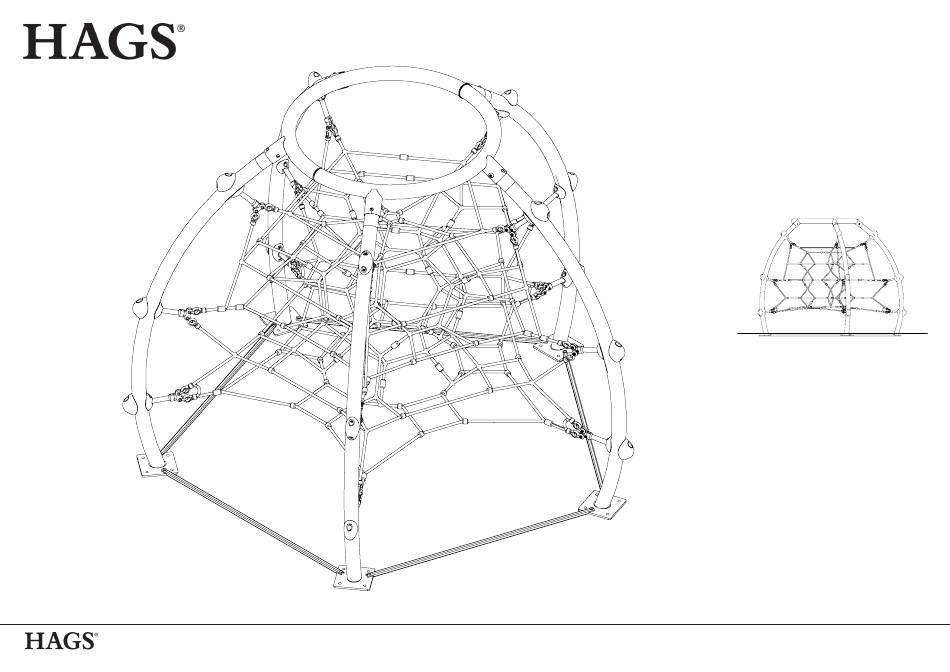

NRG Galdhøpiggen

hags@hags.com

78701003

www.hags.com

NRG Galdhøpiggen

Rev: 02

23/02/21

1 /

Need help?

Do you have a question about the NRG Galdhopiggen and is the answer not in the manual?

Questions and answers

Summary of Contents for HAGS NRG Galdhopiggen

Page 2 6.0 x 6.0 M6x25-8.8-(ISO7380) 8027762 0.006 EN1176 M16_C_Ø17 x Ø50 x 4_8.8 10391600 0.05 1.75m 10121000 (TX45 / M10) 10120600 (TX30 / M6) 78704013 M16_Ø17 x 50 x 2_PTFE 0.008 © Playpower inc NRG Galdhøpiggen Rev: 02 hags@hags.com 78701003 23/02/21 www.hags.com...
Page 3 EN1176 1.75m 5.30m 209in 3.19m 126in R1.65m 21.4m² 65in 1.27m 50in © Playpower inc NRG Galdhøpiggen Rev: 02 hags@hags.com 78701003 23/02/21 www.hags.com...
Page 4 225mm R1459mm 57in 144 - 3 © Playpower inc NRG Galdhøpiggen Rev: 02 hags@hags.com 78701003 23/02/21 www.hags.com...
Page 5 (x6) Ø5.5mm 20mm (x2) (x2) (x2) 5.5-10 Nm (x2) 32kg © Playpower inc NRG Galdhøpiggen Rev: 02 hags@hags.com 78701003 23/02/21 www.hags.com...
Page 6 FR - Ne pas serrer complètement DE - Nicht ganz festziehen IT - Non serrare completamente 0 Nm 7 & 13 SE - Dra inte åt helt PL - Nie w pełni dokręcaj © Playpower inc NRG Galdhøpiggen Rev: 02 hags@hags.com 78701003 23/02/21 www.hags.com...
Page 8 FR - Ne pas serrer complètement (x2) DE - Nicht ganz festziehen IT - Non serrare completamente 0 Nm SE - Dra inte åt helt PL - Nie w pełni dokręcaj 32kg © Playpower inc NRG Galdhøpiggen Rev: 02 hags@hags.com 78701003 23/02/21 www.hags.com...
Page 10 ES - Apretar completamente FR - Serrer complètement DE - Ganz festziehen IT - Stringere completamente 20-25 Nm SE - Dra åt helt PL - Całkowicie dokręcić © Playpower inc NRG Galdhøpiggen Rev: 02 hags@hags.com 78701003 23/02/21 10 / www.hags.com...
Page 11 (x20) Ø16mm 127mm m³ 1.8m³ S1 - S3 ≥C20-25 2 x 24 200mm Ø3350mm Ø132in © Playpower inc NRG Galdhøpiggen Rev: 02 hags@hags.com 78701003 23/02/21 11 / www.hags.com...
Page 12 ES - Apretar completamente FR - Serrer complètement DE - Ganz festziehen IT - Stringere completamente 100 Nm SE - Dra åt helt PL - Całkowicie dokręcić © Playpower inc NRG Galdhøpiggen Rev: 02 hags@hags.com 78701003 23/02/21 12 / www.hags.com...
Page 13 (x2) (x2) x 15 (x2) (x2) 0 Nm © Playpower inc NRG Galdhøpiggen Rev: 02 hags@hags.com 78701003 23/02/21 13 / www.hags.com...
Page 14 45kg 20-25 Nm x 15 0 Nm x 15 © Playpower inc NRG Galdhøpiggen Rev: 02 hags@hags.com 78701003 23/02/21 14 / www.hags.com...
Page 15 GB - Tighten Completely ES - Apretar completamente FR - Serrer complètement DE - Ganz festziehen IT - Stringere completamente SE - Dra åt helt PL - Całkowicie dokręcić © Playpower inc NRG Galdhøpiggen Rev: 02 hags@hags.com 78701003 23/02/21 15 / www.hags.com...
Page 17 (x2) (x2) (x2) (x2) 5.5-10 Nm © Playpower inc NRG Galdhøpiggen Rev: 02 hags@hags.com 78701003 23/02/21 17 / www.hags.com...
Page 18 A ~ EN 1176 144 - 3 4832 1088 1870 2751 2314 4074 5504 22m² © Playpower inc NRG Galdhøpiggen Rev: 02 hags@hags.com 78701003 23/02/21 18 / www.hags.com...
