Summary of Contents for HAGS NG223S

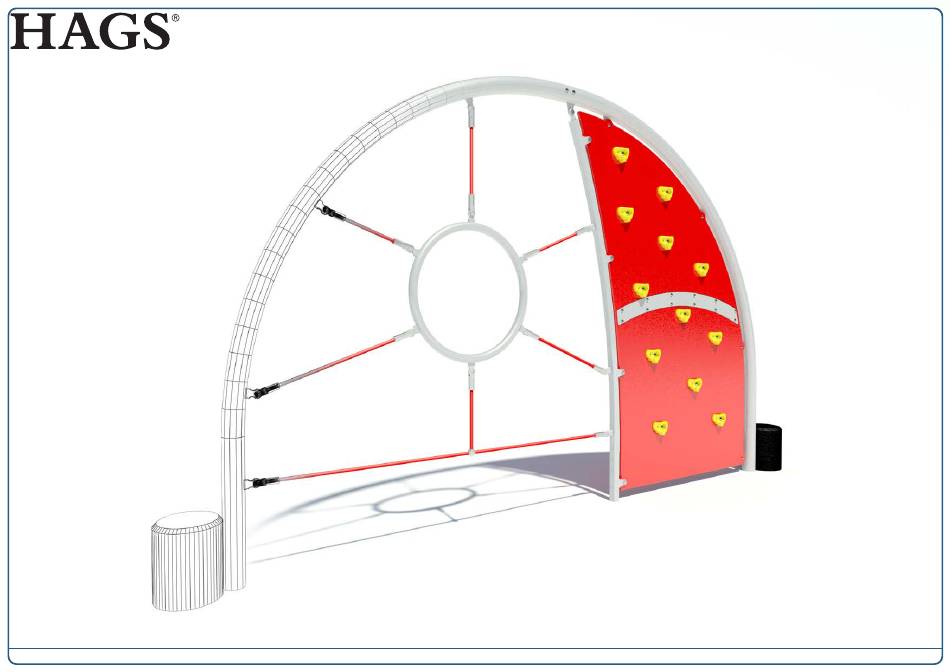

- Page 1 Installation Instructions NRG Bermuda Triangle NG223S © Playpower Inc E-post:hags@hags.com www.hags.com NG223 Bermuda Triangle Issue G - 16/06/2017 1 / 11...
- Page 2 78803108 78803109 30 kg! 30 kg! 1 No 1 No Bermuda Triangle Board Arch Bermuda Triangle Rope Arch 78804035 10121030 1 No 12 No NRG Arch Spiggot M10x30mm Resistorx 10291000 78804031 16 No 1 No M10 Form ‘A’ Washer Tube Clear Silicone Sealant 803703 RYBL300 2 No...
- Page 3 78904012 78802016 23 kg! 1 No 24 No BT Base Climbing Board Yellow Climbing Grip 78803014 78805041 1 No 1 No Climbing Ring 515mm Long Rope Assembly 78805042 78805043 1 No 1 No 476mm Long Rope Assembly 625mm Long Rope Assembly 78805038 78805039 1 No...
- Page 4 10121040 10931000 12 No 1 No M10x40mm Resistorx M10 Brass T-Nut 10391200 10121020 1 No 13 No M12 Shakeproof Washer M10x20mm Resistorx 10304010 Ø25mm 10941000 9 No 20 No M10 Form ‘C’ Washer M10 T-Nuts BZP 78804044 950104 950100 10121001 4 No 1 No 1 No...
- Page 5 25 24 27 30 28 26 4 - Verify ropes fit – remove before concreting – Utilizar las cuerdas para verificar la distancia entre los postes - quitarlas antes de poner el hormigón – Utiliser les cordes pour vérifier la distance entre les poteaux - les retirer avant bétonnage –...
- Page 6 1450 m³ 0.60 3020 3500 TYPE 1 TYPE 3 Sand Synthetic TYPE 2 TYPE 5 Bark Grass mat S2 (50mm) EN1176 ≥C20-25 H=2.4m 7 x 24h NG223 Bermuda Triangle Issue G - 16/06/2017 6 / 11...
- Page 7 42 Nm! NG223 Bermuda Triangle Issue G - 16/06/2017 7 / 11...
- Page 8 GB - Protect from concrete FR - Protéger contre le beton DE - Schutz vom Beton IT - Proteggere dal cemento ES - Proteger contra el hormigón SE- Skyddas mot betong NG223 Bermuda Triangle Issue G - 16/06/2017 8 / 11...
- Page 9 NG223 Bermuda Triangle Issue G - 16/06/2017 9 / 11...
- Page 10 X 2 = T LxWxH (m) m³ m² EN1176 T = 8 hr H=2.4m 4.09 x 0.25 x 2.36 0.60 10 x 10 1625 7090 NG223 Bermuda Triangle Issue G - 16/06/2017 10 / 11...
- Page 11 TYPE 5 TYPE 3 1521 Grassmat Synthetic 5525 7139 8000 8000 NG223 Bermuda Triangle Issue G - 16/06/2017 11 / 11...
