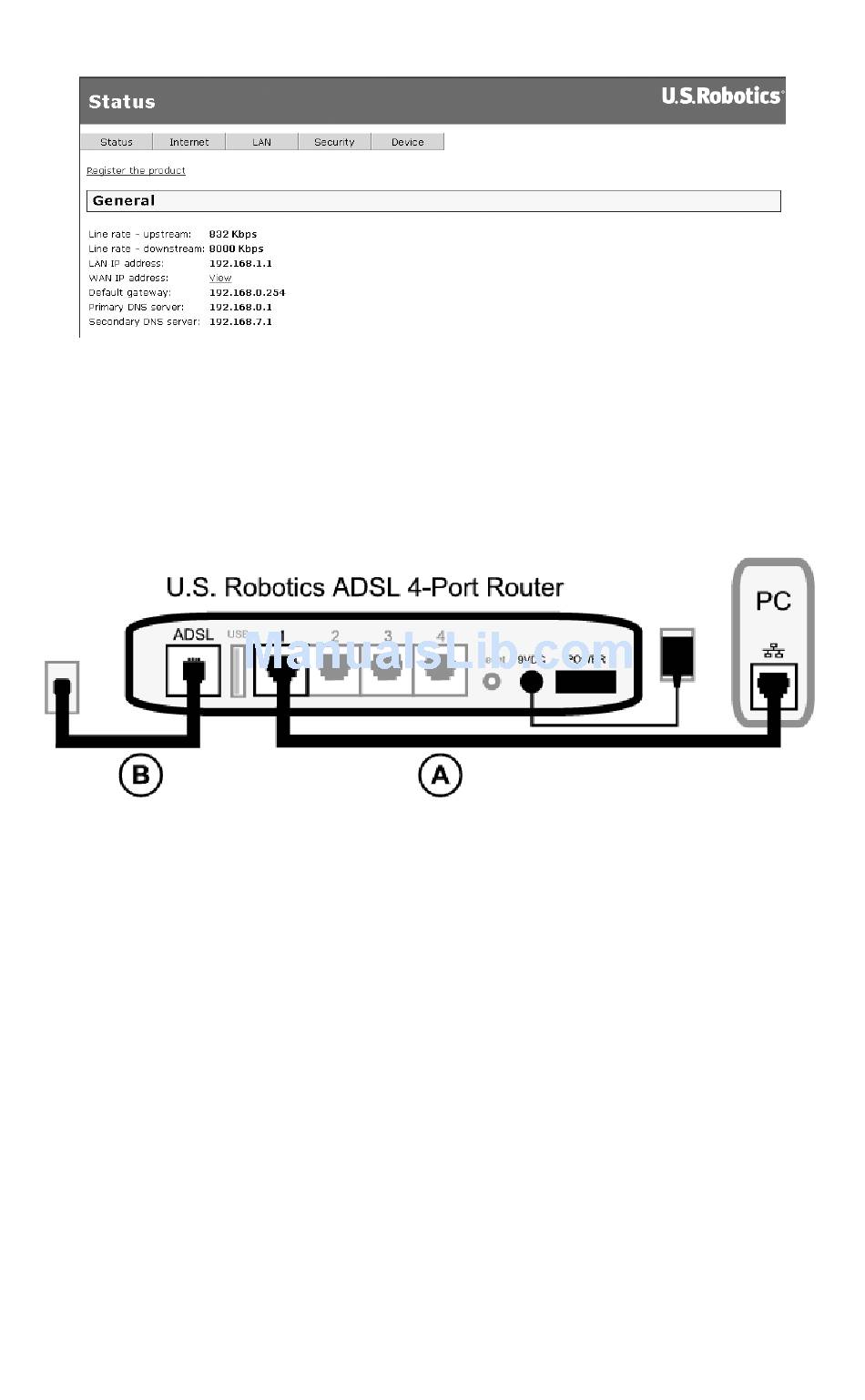

4. The Web User Interface opens with a status page.
If you cannot access the Internet...
A number of devices have to work together for your computer to access the Internet. The
following drawing shows the connections between your computer and your USRobotics
ADSL 4-Port Router.
A. Your computer connects to your ADSL 4-Port Router via a wired connection (a cable).
B. The router connects to your Internet Service Provider (ISP) via ADSL over the phone
network.
The first step in solving the problem is to diagnose the cause. There are a number of
places where the connection from your computer to the Internet might fail.
