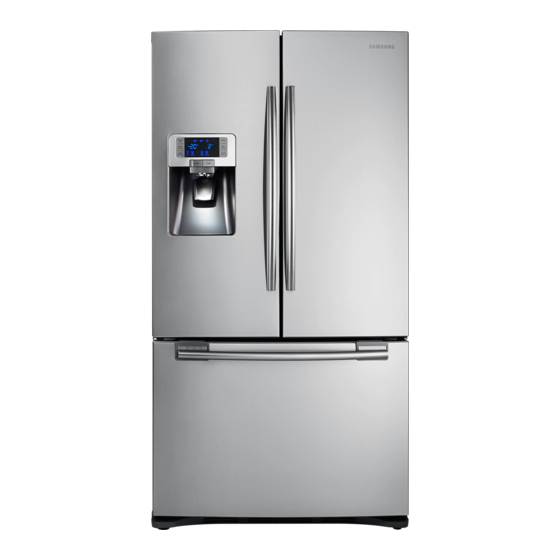

Samsung RFG23UERS User Manual

Hide thumbs Also See for RFG23UERS:

Advertisement

Quick Links

Download this manual
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
UERS
Free Standing Appliance
DA99-03403F (EN)-14.indd 1
o cerca il tuo prodotto tra le
migliori offerte di Frigoriferi e Congelatori
Refrigerator
user manual
imagine
the possibilities
Thank you for purchasing this Samsung product.
Samsung RFG 23
English
2019. 7. 10.
2:16

Advertisement

loading
Need help?

Need help?

Do you have a question about the RFG23UERS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samsung RFG23UERS

Summary of Contents for Samsung RFG23UERS

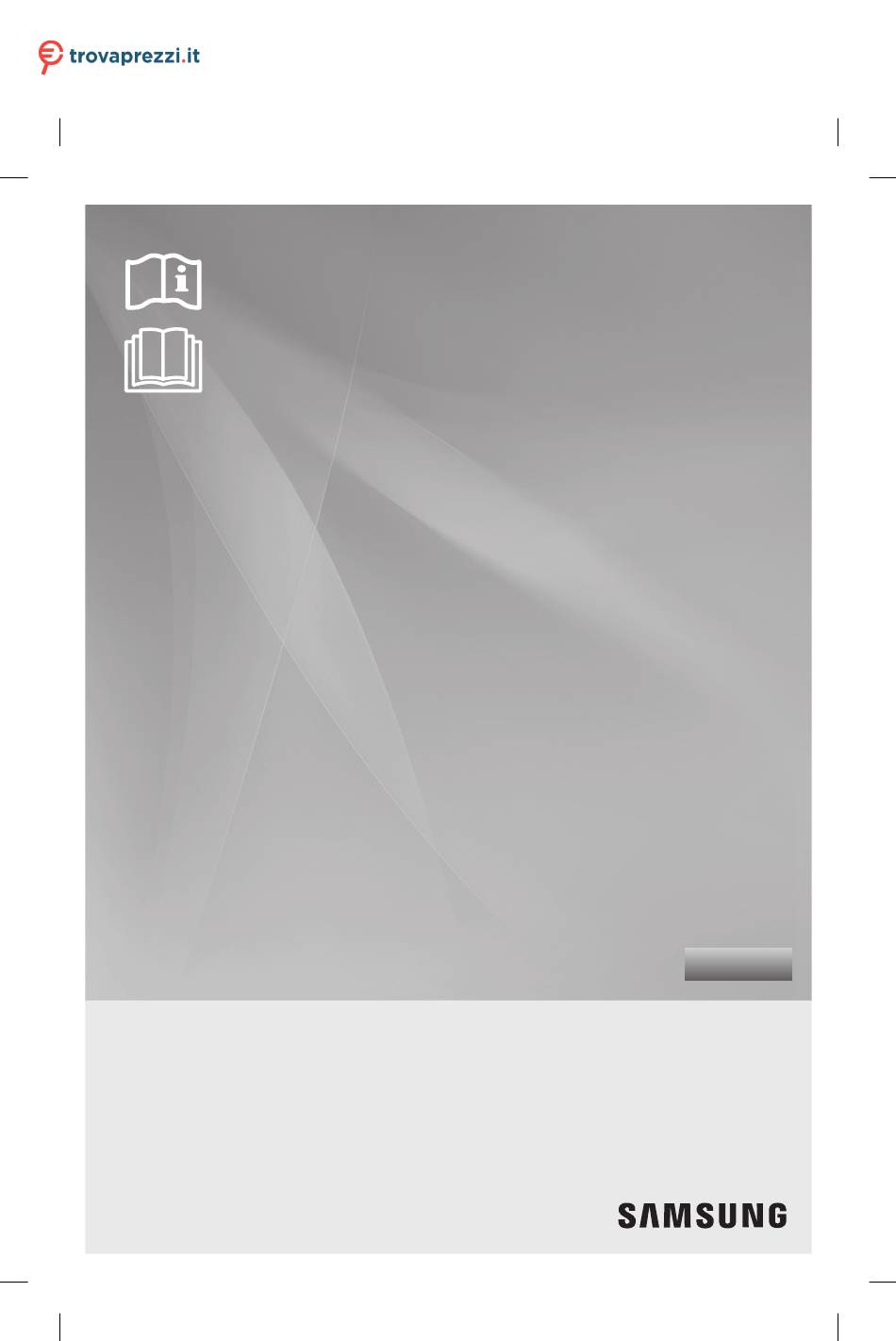

  • Page 1 Samsung RFG 23 UERS o cerca il tuo prodotto tra le migliori offerte di Frigoriferi e Congelatori Refrigerator user manual English imagine the possibilities Thank you for purchasing this Samsung product. Free Standing Appliance DA99-03403F (EN)-14.indd 1 2019. 7. 10. 2:16...
  • Page 2 • To avoid contamination of food, concerning use of the appliance please respect the following...
  • Page 3 increase of the temperature Warning : in the compartments of the Risk of fire appliance. / flammable - Clean regularly surfaces that can materials come in contact with food and accessible drainage systems. Important safety symbols - Clean water tanks if they have and precautions : not been used for 48 h;...
  • Page 4 These warning signs are is detected, avoid any naked here to prevent injury to flames or potential sources you and others. Please of ignition and air the room in follow them carefully. After which the appliance is standing reading this section, keep for several minutes.
  • Page 5 SEVERE WARNING • Do not use a cord that shows cracks or abrasion damage SIGNS FOR WARNING along its length or at either end. INSTALLATION • Do not bend the power cord • Do not install this excessively or place heavy appliance in a humid, articles on it.
  • Page 6 cut off and a cause fire or an technician or service company. electric shock. - Failing to do so may result in an • Make sure that the power plug electric shock or personal injury. is not squashed or damaged by Contact with a service center the back of the refrigerator.
  • Page 7 door. explosion. - Failure to do so may cause • Do not store low temperature- serious personal injury. sensitive pharmaceutical products, scientific materials or • Do not leave the doors of the other low temperature-sensitive refrigerator open while the products in the refrigerator. refrigerator is unattended and do not let children enter inside - Products that require strict...
  • Page 8 • If any dust or water is in the point" areas; clearances refrigerator, pull out power plug between the doors and cabinet and contact your Samsung are necessarily small. Be careful Electronics service center. when you open the doors when - There is a risk of fire.
  • Page 9 138~862 kPa (1.4~8.8 kgf/ appliance are neither covered cm²) is required. under Samsung warranty • Do not spray volatile material service, nor is Samsung such as insecticide onto the responsible for safety issues surface of the appliance. and damages that result from - As well as being harmful to 3rd party modifications.
  • Page 10 electric shock, fire or problems as inflammable sprays, with the product. inflammable objects, dry ice, medicine, or chemicals near • Do not apply strong shock the refrigerator. Do not keep or excessive force onto the volatile or inflammable objects surface of glass. or substances (benzene, - Broken glass may result in a thinner, propane gas, etc.) in...
  • Page 11 • Use a clean sponge or soft SEVERE WARNING cloth and a mild detergent CAUTION SIGNS FOR in warm water to clean the DISPOSAL refrigerator. • Ensure that none of the • Do not use abrasive or harsh pipes on the back of cleansers such as window the appliance are sprays, scouring cleansers,...
  • Page 12 so that small children or animals appliance. cannot become trapped inside. • The appliance might not Leave the shelves in place so operate consistently (possibility that children may not easily of temperature becoming too climb inside. Children should warm in the refrigerator) when be supervised to ensure that sited for an extended period of they do not play with the old...
  • Page 13 are going away for the three the refrigerator base and at the weeks or more. back wall of the refrigerator. Unplug the refrigerator and Do not cover air vent openings. clean it, rinse and dry. - Allow clearance to the right, left, back and top when installing.
  • Page 14 THE REFRIGERATOR Depth “A” 712 mm Congratulations on your purchase of the Width “B” 908 mm Samsung Refrigerator. We hope you enjoy the Height “C” 1740 mm state-of-art features and efficiencies that this new appliance offers. Overall Height “D” 1774 mm Depth “E”...
  • Page 15 When moving your refrigerator Tools you will need(Not provided) To prevent floor damage be sure the front leveling legs are in the up position(above the floor). Refer to ‘ADJUSTING THE DOORS’ in the manual (at page 17) Philips Flat-blade Wrench (10 mm) screwdriver screwdriver FLOORING...
  • Page 16 DISASSEMBLE THE FREEZER DRAWER 3. Remove the 3 hex head bolts attached to the upper left and right door hinges with a 1. Push the upper drawer in completely. wrench(10 mm). With a Philips head screwdriver, remove the ground screw attached to the upper left and right door hinges.
  • Page 17 ASSEMBLE THE FREEZER 1. If you open the drawer , you can see the lower hinge DRAWER 2. Insert a philips screwdriver (+) into the shaft To reattach the freezer drawer, assemble parts in of the lower hinge. reverse order. 3.
  • Page 18 CHECKING THE WATER LINE A water dispenser is one of the helpful features on INSTALLING THE WATER LINE your new Samsung Refrigerator. To help promote better health, the Samsung water filter removes Connecting the water line to the Refrigerator. unwanted particles from your water. However, it does not sterilize or destroy microorganisms.
  • Page 19 • 6.35 mm compression nut • copper tubing • plastic tubing • ferrule Refrigerator Compression nut Plastic tubing (6.35 mm) (Supplied) (Supplied) Compression fitting (Supplied) Bulb Ferrule (Not supplied) Compression nut (6.35 mm) Sticker (Not supplied) (month indicator) Copper tubing Plastic tubing (Not supplied) (Not supplied)
  • Page 20 Operating the SAMSUNG refrigerator USING THE CONTROL PANEL The filter Indicator will be Blue when you initially insert the water filter. Alarm The filter Indicator will be Light Pink / Reset when you have used your water filter Filter for 5 months. The filter Indicator (...
  • Page 21 3. Dispense 4 to 6 ice cubes into the glass. please contact to Samsung Electronics Service 4. After 8 and 16 hours, dispense a full glass of Center. ice at each time.
  • Page 22 Using the ice off function When selecting the Ice Off mode, Test button remove all ice cubes from the bucket. If you are not using Pull on Push the ice dispenser, Check the water level the ice cubes may clump together. Pull the lock lever forward to throw away ice cubes or remove clumped ice from the bucket.
  • Page 23 PARTS AND FEATURES Use this page to become more familiar with the parts and features of the Refrigerator. Water Filter Light Door Closer USING THE COOL SELECT PANTRY™ The Cool Select Pantry™ is a full-width drawer with adjustable temperature control. This pantry Light can be used for large party trays, deli items, pizza, beverages or miscellaneous items.
  • Page 24 Dust removal method - Remove the guard and wash in water. 2. Tempered Glass shelves To remove - Tilt up the front of the shelf in the Deli Fresh Zero Zone direction shown and lift it up vertically • pineapple •...
  • Page 25 4. Cool Select Pantry™ REMOVING THE FREEZER (applicable models only) ACCESSORIES To remove the pantry - Pull the pantry out to 1. Tilting Pocket full extension. Tilt up the front side of pantry and pull straight out. To remove - Pull the brackets upward until you To relocate the pantry - Push the rails to the hear a clicking sound and remove the pocket back of the Refrigerator.
  • Page 26 SAMSUNG Refrigerator. USE ONLY SAMSUNG BRAND WATER FILTERS. SAMSUNG will not be legally responsible for any damage, including, but not limited to property damage caused by water leakage from use of a generic water filter. SAMSUNG Refrigerators are designed to work ONLY WITH SAMSUNG WATER Filter.
  • Page 27 Troubleshooting PROBLEM SOLUTION The Refrigerator does • Check that the power plug is properly connected. not work at • Is the temperature control on the display panel set to the correct all or it does not chill temperature? sufficiently. Try setting it to a lower temperature. •...
  • Page 28 Memo DA99-03403F (EN)-14.indd 28 2019. 7. 10. 2:16...
  • Page 29 Memo DA99-03403F (EN)-14.indd 29 2019. 7. 10. 2:16...
  • Page 30 Memo DA99-03403F (EN)-14.indd 30 2019. 7. 10. 2:16...
  • Page 31 Memo DA99-03403F (EN)-14.indd 31 2019. 7. 10. 2:16...
  • Page 32 For information on Samsung’s environmental commitments and product specific regulatory obligations e.g. REACH, WEEE, Batteries, visit our sustainability page available via Samsung.com Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Country...
