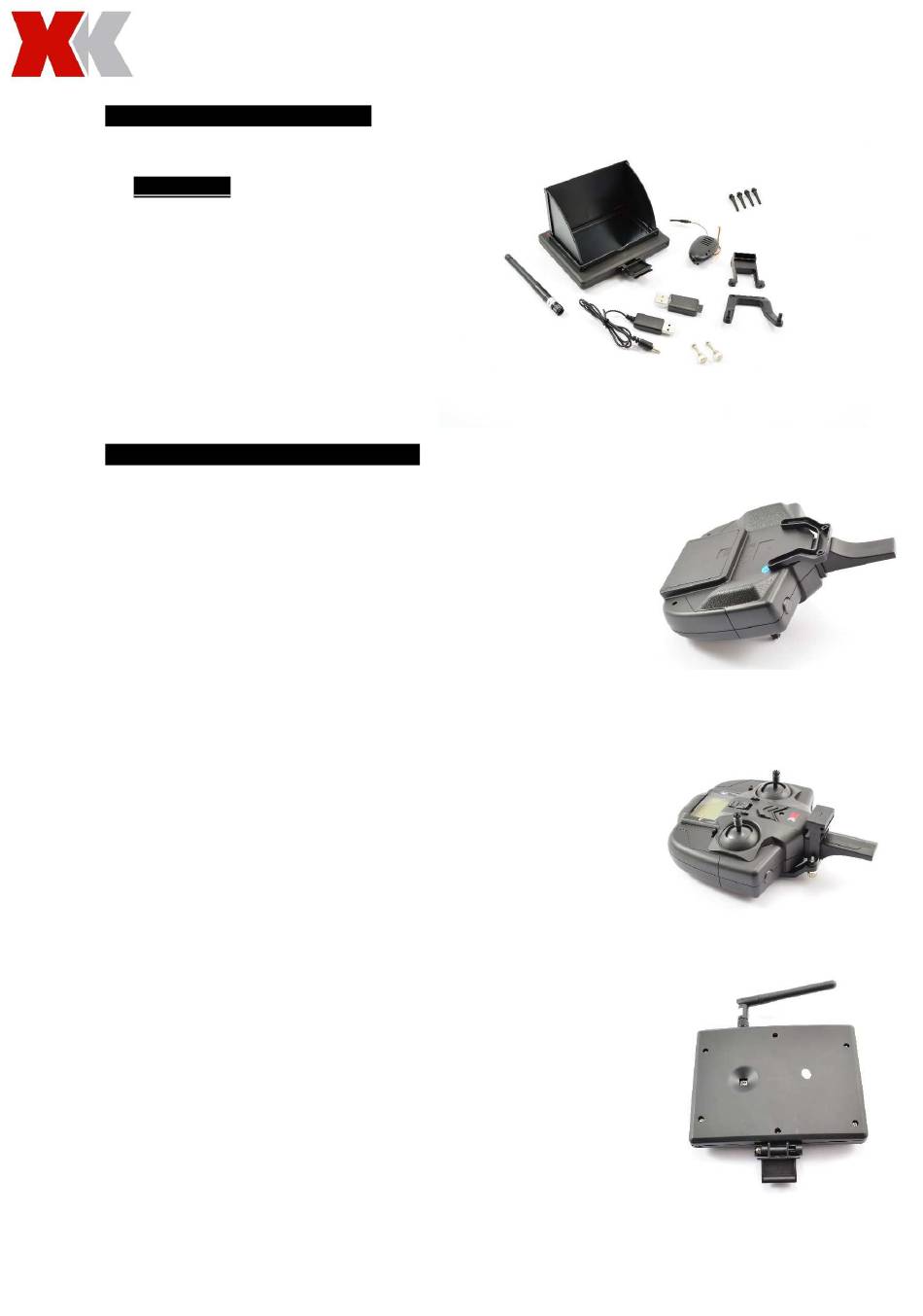

X250 5.8Ghz FPV Camera Installation
Kit Contains:-
Screen holder
Thumb screws and nuts
4.3" FPV screen
USB charger for screen
Antenna
FPV camera
Micro SD card USB card reader
Longer standoff feet
Installing the Screen Holder and FPV Screen
1. Place the rear half of the screen holder onto the back of the
transmitter, the location lugs will line up with the holes on the
transmitter.
2. Place the front half of the screen holder on the front of the
transmitter in-line with the rear holder and screw in place
with the two thumb screws and nuts provided.
3. Attach the antenna and screen bracket to the FPV Screen.
**Ensure that the 3 switches on the back are set to 1-2-3 in the
off position, (all 3 switches should be set nearest the
antenna)**
