ALP-40
Surface Mount Slim LED Profile
INSTALLATION GUIDE

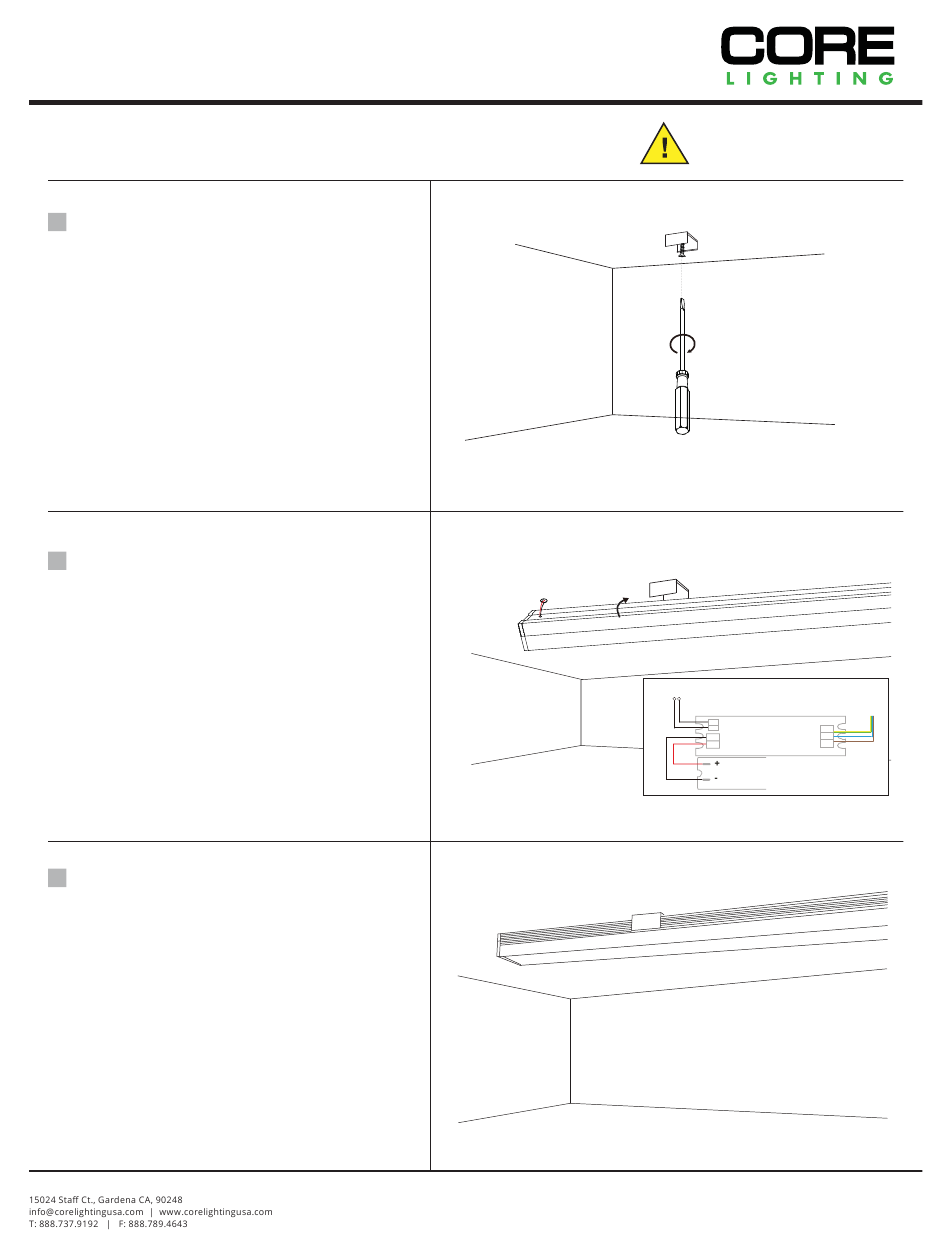

DETERMINE WHERE TO MOUNT THE FIXTURE THEN
4
MAKE 5MM HOLES AND INSERT ANCHORS. SCREW
MOUNTING CLIP ONTO PLACE SECURELY.
MAKE NECESSARY WIRE CONNECTIONS. MAKE
5
SURE TO FOLLOW WIRING DIAGRAM OF POWER
SUPPLY, DIMMER ETC... FIX PROFILE INTO POSITION
AND ATTACH TO MOUNTING CLIPS. FIXTURE WILL
SNAP SECURELY ONTO MOUNTING CLIPS WHEN
PROPERLY FASTENED.
INSTALLATION COMPLETE
6
WARNING: RISK OF ELECTRICAL SHOCK
* turn off main power prior to installation
* make sure hands are dry
* never touch exposed wires
Connect to DIM
DIM-
DIM+
GND
Driver
LED-
AC-N
AC-L
LED+
LED
ALP40INSTALLGUIDE
|
P2
