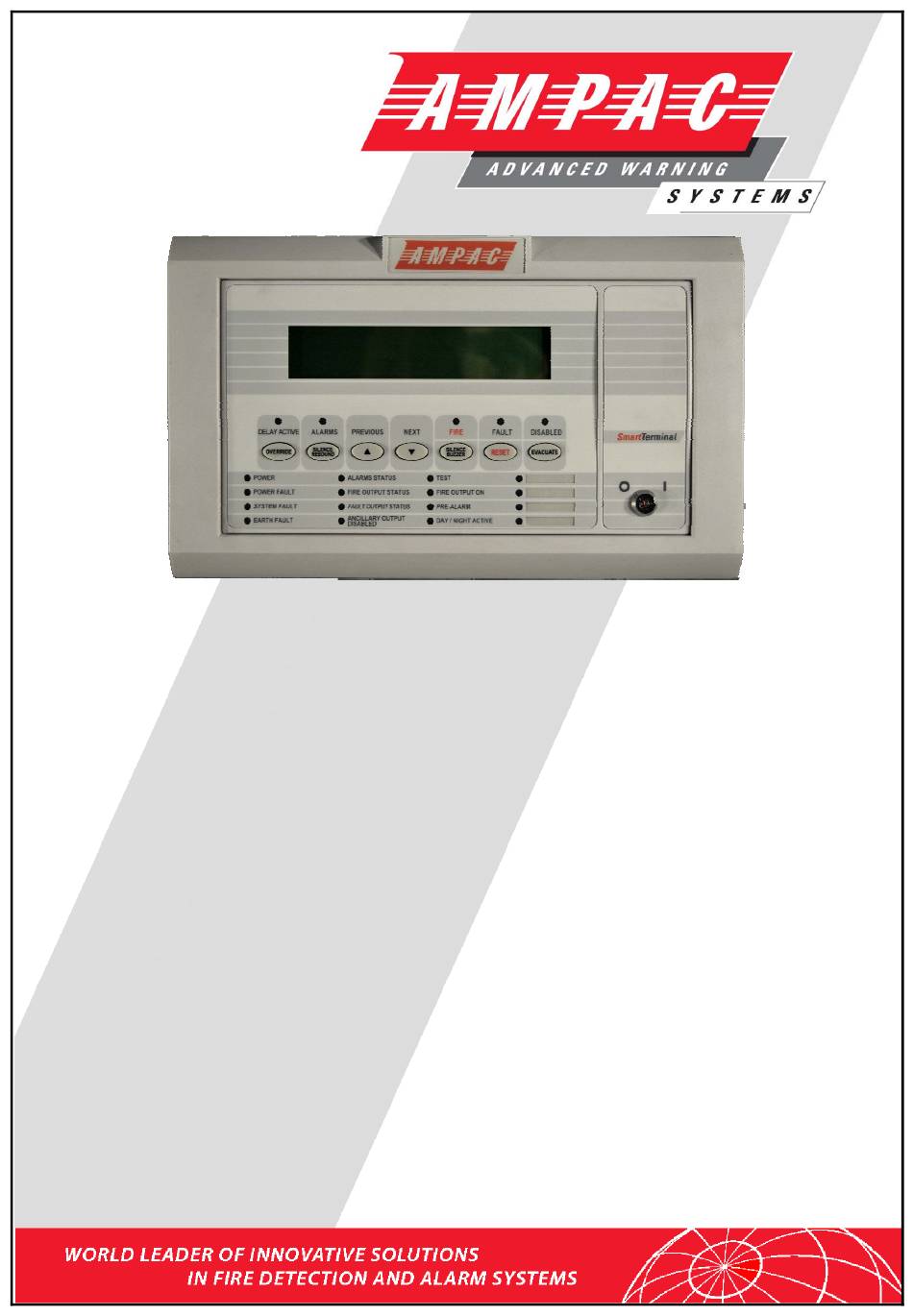

  • Page 1 SmartTerminal Installation, Commissioning & Operation MAN1537-5...
  • Page 2 SMART TERMINAL FIREFINDER PLUS INSTALLATION & COMMISSIONING...

  • Page 3: Table Of Contents

    FACP Communications Extender Board Interconnection ..........10     Setting the Address ...................... 10     Setting the SmartTerminal in ConfigManager .............. 11     5.4.1 Setting the SmartTerminal Reporting Parameters ........12 6  SmartTerminal Controls and Indicators ..............13 ...

  • Page 4: Introduction

    FACP. Operation The operation of SmartTerminal can be considered to be in one of three states, these are; 1. Power up - when the SmartTerminal is initialising 2. Normal - when the SmartTerminal address has been set and is communicating with the...

  • Page 5: Specifications

    RS485 communications and 27VDC supply to the LCD Board 3. BRD82ICC2 – Control, LCD Communications and LCD Driver Board  Note: A maximum of 30 SmartTerminal’s may be connected to the communications bus over a distance of approximately 1.2Kms Page 5...

  • Page 6: Operational & Key Features

     4 line by 40 character LCD with backlight and navigation keys   keys allow the SmartTerminal to be used for FACP operation and interrogation. Note the backlight is only energised when alarms are present, a key has been pressed or controls enable key switch is enabled ...

  • Page 7: Fixing The Chassis To The Wall

    SMART TERMINAL INSTALLATION & COMMISSIONING 4.1.2 Fixing the Chassis to the Wall Taking into account the weight of the panel securely mount it by using the three keyhole mounting holes in the backpan, two in the top and one in the bottom. Use suitably sized screws and plugs for the type of mounting surface.
  • Page 8 SMART TERMINAL INSTALLATION & COMMISSIONING HINGE PIN 2 CONTROL FRONT DOOR PANEL CLIPS KEY SUPPLIED INTO FRONT DOOR TAPED TO TOP OF ENCLOSURE TAP AROUND RIM TO REMOVE BRD82ICC KNOCKOUTS BRD82LTB CONNECT BRD82LTB CN1 TO BRD82ICC HINGE PIN 1 TO REMOVE THE FRONT DOOR SLIDE THE TOP AND BOTTOM HINGE PINS OUT OF THE HINGES INSERT KEY...

  • Page 9: Installation & Cabling

    DOOR SW DBA/MCP + IN - + BAT - TO BATTERIES Figure 5: FACP Internal Layout The SmartTerminal is then connected to the FACP as shown below. SHIELDED COMMS CABLE FACP FRONT PANEL CONTROL (BRD85CTLA) +24VDC RJ45 CN17 MAIN CONTROL BOARD (BRD85MBA)

  • Page 10: Smartterminal Termination Board Interconnection

    Use the “PREVIOUS (A-) and NEXT” (A+) keys to select the desired address. The default value for this address is 255 which is not a valid SmartTerminal address. The user must then select an address value from 1 to 30, i.e. the same address as that set in the FACP. The keys corresponding to C- (ACK) and C+ (RESET) are used in a similar manner to decrease and increase the LCD contrast level.

  • Page 11: Setting The Smartterminal In Configmanager

    Right click on the Controller icon and select “Edit Add On modules” to bring up the following screen/s. Figure 8 The Controller Edit / Add Module Screens Select the next available Add On Reference drop down and select the SmartTerminal option from the add on list. Page 11...

  • Page 12: Setting The Smartterminal Reporting Parameters

    Type in a “Description”. The description should be a name given to the SmartTerminal (LCDA) or its physical location. Double click in each of the “Report” boxes to display and set the, “Y” (Yes reports the parameter) and “N” (No does not report the parameter) “Alarms, Faults, Disables”...

  • Page 13: Smartterminal Controls And Indicators

    SMART TERMINAL INSTALLATION & COMMISSIONING SmartTerminal Controls and Indicators All controls, except for the Enable / Disable keyswitch, are of a momentary push button style. Figure 10 SmartTerminal Front Panel Layout DELAY ACTIVE OVERRIDE (Yellow) The LED is illuminated when a device has been activated and the device is configured to have a delay before operating the brigade output and alarm devices.
  • Page 14 PREVIOUS Primary Function Press to display the previously displayed LCD screen Secondary Function Set SmartTerminal address – A – (minus) decrement number Active at access level 1 and 2 NEXT Primary Function Press to display the next displayed LCD entry Secondary Function Set SmartTerminal address –...
  • Page 15 Key Switch Controls enable key switch. The SmartTerminal by default is in access level 1, and when the control enable key switch is in the ENABLED position, the SmartTerminal is in access level 2. Access level 2 is used to restrict access to certain controls.
  • Page 16 SMART TERMINAL INSTALLATION & COMMISSIONING FAULT OUTPUT STATUS (Yellow) Illuminated steady if the fault output has been disabled and flashes if the fault output is in fault (open or short circuit condition). Disable has priority over fault. ANCILLARY OUTPUT DISABLED (Yellow) Illuminated when the ancillary output has been disabled.

  • Page 17: Lcd Screen Format

    Fault sequence number ( Device Fault nnn of nnn) Note: The fault types only relate to devices. In the event of a loss of communications, for a period of greater than 15 seconds the SmartTerminal will default to the No Communications screen. The format for this screen is:...
  • Page 18 A - A + C - C+ A - A +: adjusts the address 1 to 30, 30 being the maximum number of SmartTerminal’s that can be connected to the FACP, (default is 255 which is not a valid address).

  • Page 19: Trouble Shooting Chart

    Refer FACP LCD. This may identify where there is a break working in the communication line Check the SmartTerminal Diagnostic Config LED is flashing. If not the FACP is not communicating with the SmartTerminal. Check the RS485 cabling. If flashing check the SmartTerminal’s address.
  • Page 20 SMART TERMINAL INSTALLATION & COMMISSIONING UNCONTROLLED DOCUMENT NOTE: Due to AMPAC’s commitment to continuous improvement specifications may change without notice. Page 20...
