tenance instructions, Page 1
rt the dryer if it is damaged.
ur after-sales service.
Make sure your hands are dry.
Hold the plug only.
Remove all items from pockets.
Check for cigarette lighters.
The drum must be empty prior to loading.
See programme overview on page 7.
See also separate instructions for "basket for woollens"
(depending on the model)
Open the door/load the laundry/
me
press the programme selector/
panel / Buttons
the inicio/pausa+carga
(start/pause)
he display using the buttons
C/board Dry Extra,
C/board Dry,
Iron Dry
Reduced ironing function can be set up to 120 mins
Time delay /
Childlock
Spin Speed,
Adjust drying level,
low heat
end signal, button signal, auto power-off and language
Inspect the
dryer
Connect the
mains plug
Sort the laundry
1
set the programme
2
Close the door
3
Select
button
Further information
can be found on Page 5

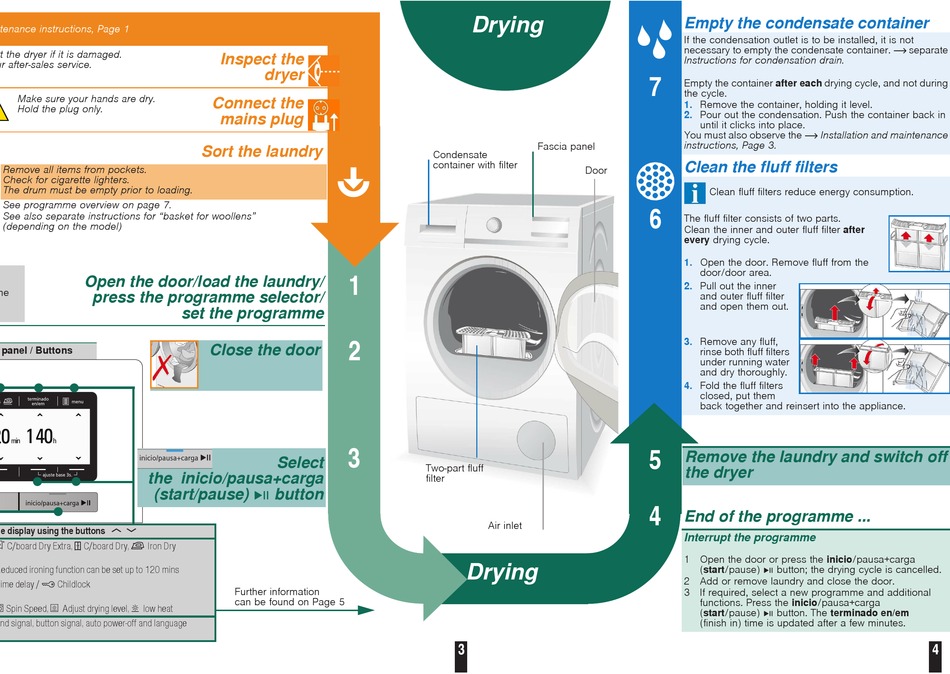

Drying
Fascia panel
Condensate
container with filter
Door
Two-part fluff
filter
Air inlet
Drying
3
Empty the condensate container
If the condensation outlet is to be installed, it is not
necessary to empty the condensate container.
Instructions for condensation drain.
7
Empty the container after each drying cycle, and not during
the cycle.
1.
Remove the container, holding it level.
Pour out the condensation. Push the container back in
2.
until it clicks into place.
You must also observe the
Installation and maintenance
instructions, Page 3.
Clean the fluff filters
Clean fluff filters reduce energy consumption.
6
The fluff filter consists of two parts.
Clean the inner and outer fluff filter after
every drying cycle.
1.
Open the door. Remove fluff from the
door/door area.
2.
Pull out the inner
and outer fluff filter
and open them out.
3.
Remove any fluff,
rinse both fluff filters
under running water
and dry thoroughly.
4.
Fold the fluff filters
closed, put them
back together and reinsert into the appliance.
5
Remove the laundry and switch off
the dryer
4
End of the programme ...
Interrupt the programme
1 Open the door or press the inicio/pausa+carga
(start/pause)
button; the drying cycle is cancelled.
2 Add or remove laundry and close the door.
3 If required, select a new programme and additional
functions. Press the inicio/pausa+carga
(start/pause)
button. The terminado en/em
(finish in) time is updated after a few minutes.
separate
4
