Summary of Contents for ARGtek Power King Station

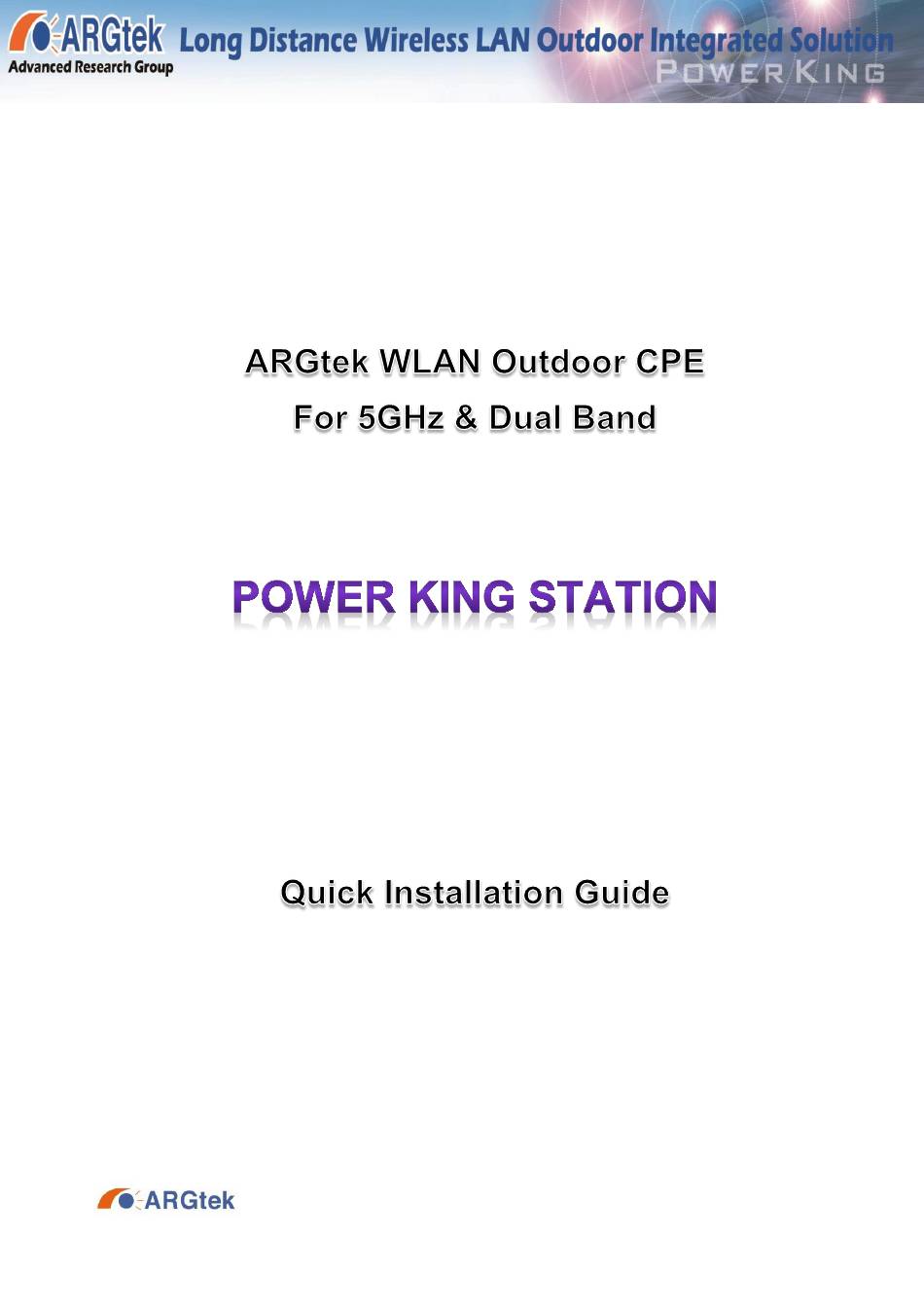

- Page 1 ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 2 PoE DC Injector Hose Clamps Manual & QIG CD Paper QIG B. How to fix the CPE on the Pole (1”- 1.5”) (For better water resistance please wrap the RJ45 connector) ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
-
Page 3: Poe Connection
This CPE default operation mode is in Bridge mode. Both LAN and WAN ports are in the same switch hub. Please go to the webpage and change the operation mode to Gateway mode when you are going to use the WAN port for your CPE. ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742... - Page 4 PC is in the same subnet as the device, such as 10.10.10.X. It will take about 25 seconds to complete the boot up sequence after power on from PoE. ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 5 Select the Operation Mode on the left side of setup frame 1. In Operation Mode, please select Bridge. Select AP or Main AP in Wireless Operation Mode and press Apply ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 6 Apply Finish setting and press Apply, the setting will be completed after rebooting around 20 seconds. Note: You have to connect cable line with LAN port of this equipment. ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 7 1. In Operation Mode, please select Bridge. Select Client or Main Client in Wireless Operation Mode and press Apply 2. In Internet Setting/LAN/, you may change the setting of IP address for this CPE, and then press Apply ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 8 3-a. In Wireless Settings / Site Surver, if there are no AP SSID, please press Rescan to search again. 3-b. In Wireless Settings / Site Surver, select the SSID which you want to connect and press the orange point on left site. And then press Connect ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 9 Note: If IP address was modified, you have to re-connect the WebServer with the new address in same network section (10, 10, 10, XXX) and network mask (255.255.255. 0). ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 10 For example, the router A shows 00:0C:43:28:8B:68 and the router B shows 00:0C:43:28:8B:78 Take note of two of MAC Address. Select the Operation Mode on the left side of setup frame ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 11 2. In Internet Setting/LAN/, you may change the setting of IP address for this CPE, and then press Apply Attention: A & B have to set the different IP in same class. For example, the router A sets 10.10.10.1 and the router B sets 10.10.10.2 ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 12 3. In Wireless Settings / Basic, you may change the setting of SSID for this CPE, and then press Apply 4. In Wireless Settings / Security, you may change the setting of password for this CPE, and then press Apply ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 13 Note1: Please connect cable line with LAN port when you use this equipment. Note2: If IP address was modified, you have to re-connect the WebServer with the new address in same network section (10, 10, 10, XXX) and network mask (255.255.255. 0). ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
