Summary of Contents for ARGtek Power King

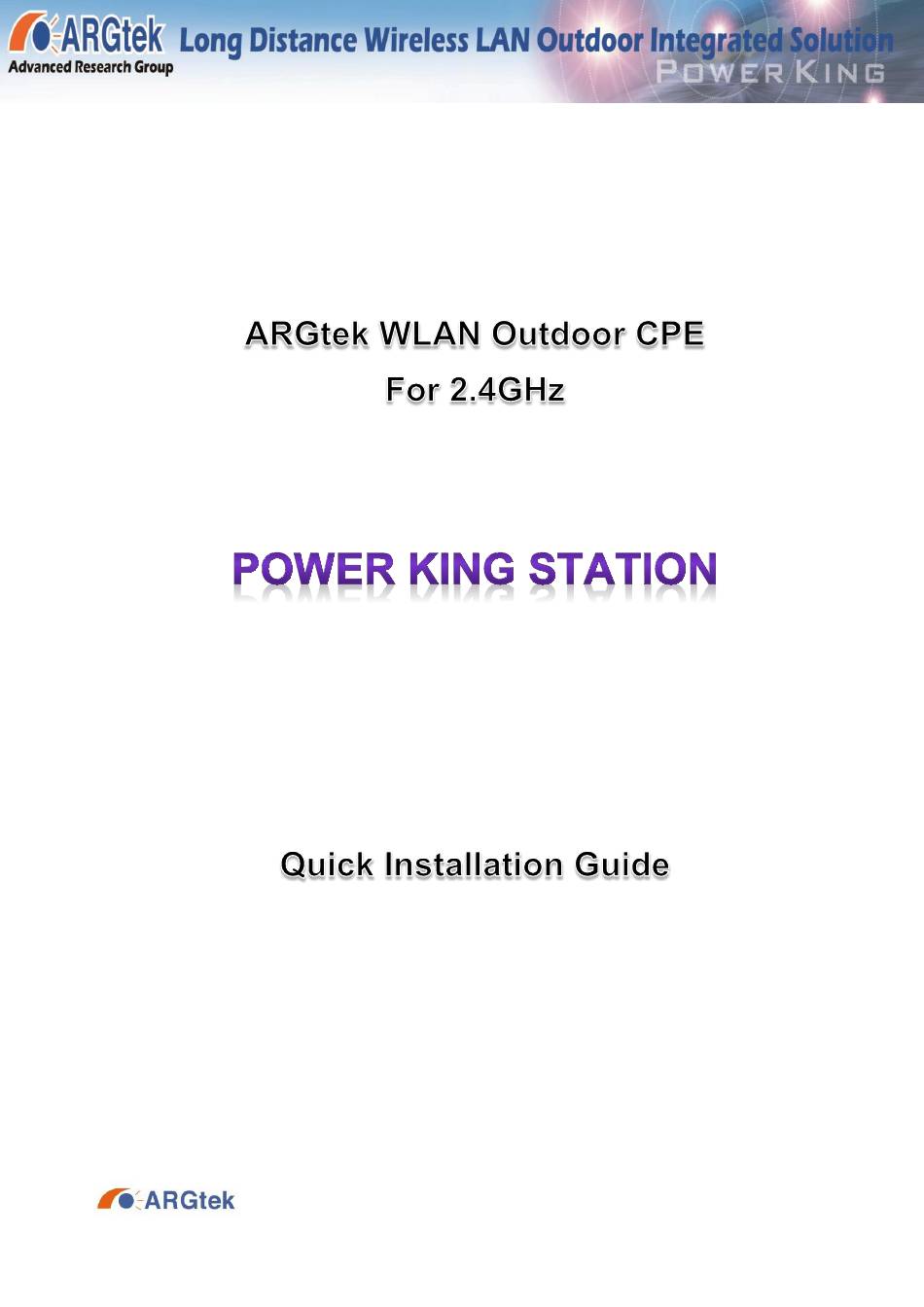

- Page 1 ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 2 PoE DC Injector Hose Clamps Manual & QIG CD Paper QIG B. How to fix the CPE on the Pole (1”- 1.5”) (For better water resistance please wrap the RJ45 connector) ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 3 This CPE default operation mode is in Bridge mode. Both LAN and WAN ports are in the same switch hub. Please go to the webpage and change the operation mode to Gateway mode when you are going to use the WAN port for your CPE. ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 4 PC is in the same subnet as the device, such as 192.168.1.X. It will take about 55 seconds to complete the boot up sequence after power on from PoE. ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 5 If you can’t enter to setup frame, please press Reset button around 10 seconds to restore AP and try to enter again. Select the Setup Wizard on the left side of setup frame and press Next>> ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 6 2. In Time Zone Setting, if you don’t need any change, please press Next>> 3. In LAN Interface Setup, you may change the setting for IP address, DHCP and etc. then press Next>> ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 7 5. In Wireless Basic Setting, select AP for your Mode and change your SSID setup, then press Next>> 6. In Wireless Security, select your setup of wireless security (WEP, WPA) and press Finished to reboot around 20 seconds. ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 8 Then choosing Disable from DHCP and press Apply Changes to reboot around 20 seconds to complete the setup. Note: Please connect cable line with LAN port when you use this equipment to connect IP Share. ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 9 CPE Client Model (Wireless Network Card Connection) Select the Setup Wizard on the left side of setup frame and press Next>> ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 10 2. In Time Zone Setting, if you don’t need any change, please press Next>> 3. In LAN Interface Setup, you may change the setting of IP address, DHCP and etc. then press Next>> ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 11 6. In Wireless Security, select the same AP setup of wireless security (WEP, WPA) which you want to connect and key in password. Then press Finished and rebooting around 25 seconds to complete setup. ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 12 Then choicing Disable from DHCP and press Apply Changes to reboot around 25 seconds to complete the setup. Note: If IP address was modified, you have to re-connect the WebServer with the new address. ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 13 Address. For example, the A router show and the B router show 00:0e:4c:d2:ea:c0 Take note of two different BSSID. 00:0e:4c:d2:ea:c2. B、 Select the Setup Wizard on the left side of setup frame and press Next>> ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 14 3. In LAN Interface Setup, you may change the setting of IP address, DHCP and etc. then press Next>> Attention: A & B have to set the different IP in same class. For example, the A router sets 192.168.1.1 and the B router sets 192.168.1.2. ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 15 5. In Wireless Basic Setting, select WDS for your Mode and change your SSID setup, then press Next>> 6. In Wireless Security, select your setup of wireless security (WEP, WPA) and press Finished to reboot around 25 seconds. ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
- Page 16 Note 1: Please connect cable line with LAN port when you use this equipment to connect IP Share. Note 2: If IP address was modified, you have to re-connect the WebServer with the new address. ARGtek Communication Inc. www.argtek.com E-Mail:sales@argtek.com Tel:+ 886-2-2999-6958 Fax :+ 886-2-2999-7742...
