TKH Skilleye SEP-FRTMP01 User Manual page 13

Temperature Measurement & Face Recognition Terminal User Manual

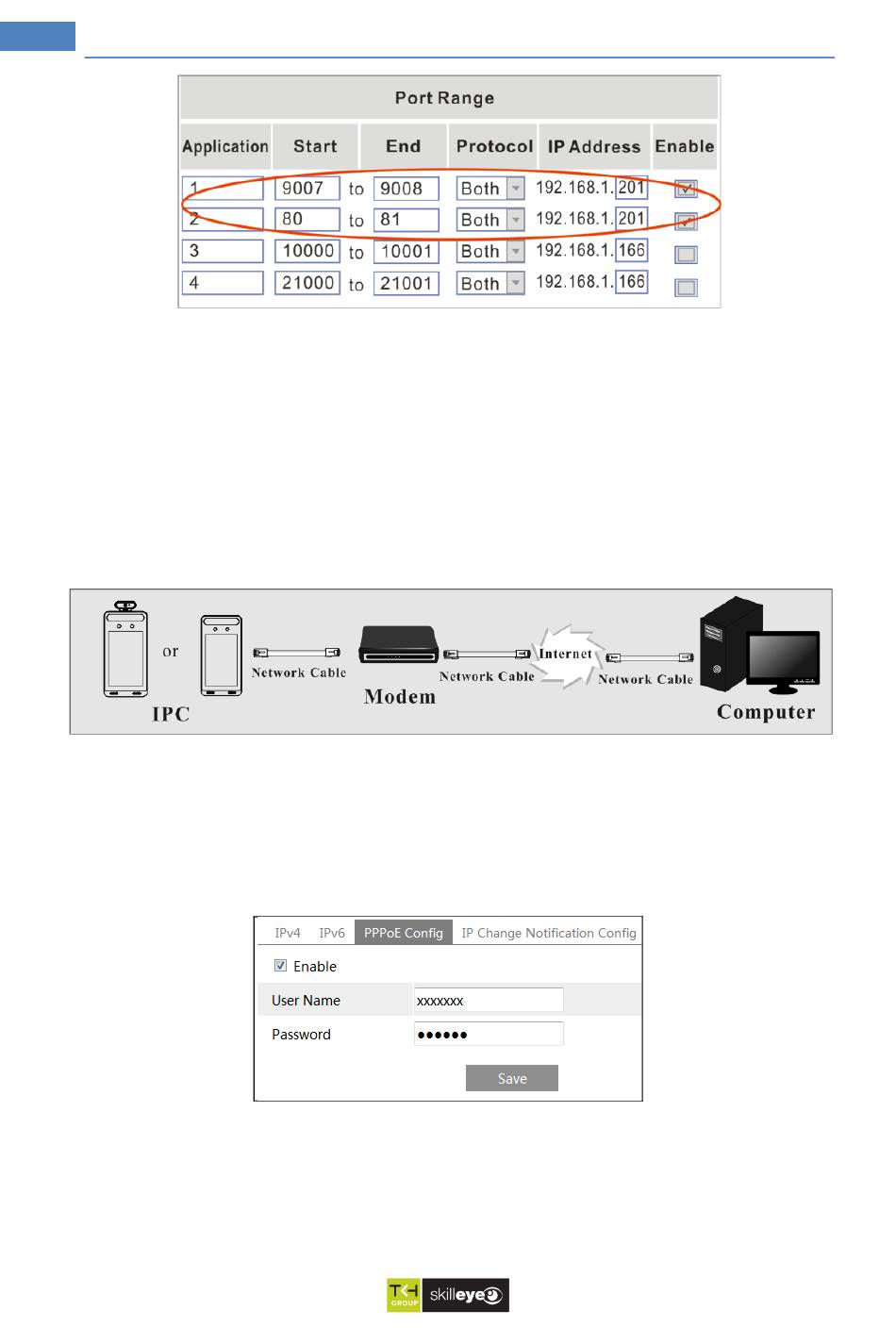

Router Setup
④ Open the IE browser and enter its WAN IP and http port to access. (for example, if the http
port is changed to 81, please enter "192.198.1.201:81" in the address bar of web browser to
access).
➢ Access through PPPoE dial-up
Network connection
Access the camera through PPPoE auto dial-up. The setup steps are as follow:
① Go to Config→Network→Port menu to set the port number.
② Go to Config →Network→TCP/IP→PPPoE Config menu. Enable PPPoE and then enter the
user name and password from your internet service provider.
③ Go to Config →Network→DDNS menu. Before configuring the DDNS, please apply for a
domain name first. Please refer to DDNS configuration for detail information.
④ Open the IE browser and enter the domain name and http port to access.
7
